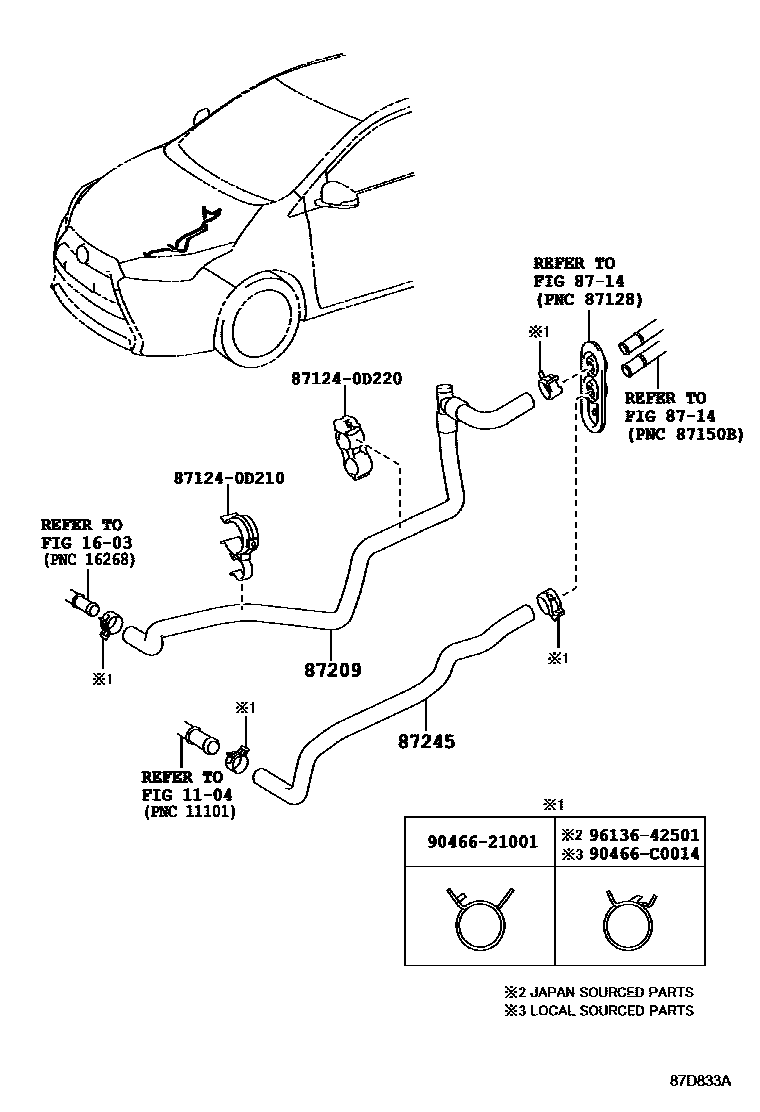

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0004 1 0006 1 0007 1

1104

1603

8714

87209HOSE SUB-ASSY, WATER

main87209-0D250iNSP15#201312-201608

main87209-0D610iNSP151..5F201608-201911

main87209-0D790iNSP151..4D..G;NSP151..CVT..N201812-202111

main87209-0D800iNSP151..5F201812-202111

87245HOSE, HEATER WATER, INLET

main87209-0D620iNSP151..CVT201608-201911

main87245-0D530iNSP15#201312-201608

main87245-0D600iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201812-202111

main87245-0D710iNSP150..5F201608-201911

main87245-0D790iNSP151..5F201812-202111

871240D210CLAMP, HEATER

main87124-0D210

871240D220CLAMP, HEATER

main87124-0D220

9046621001

main90466-21001

90466C0014

main90466-C0014

9613642501

main96136-42501

10 parts on this diagram · 5 diagrams in section
