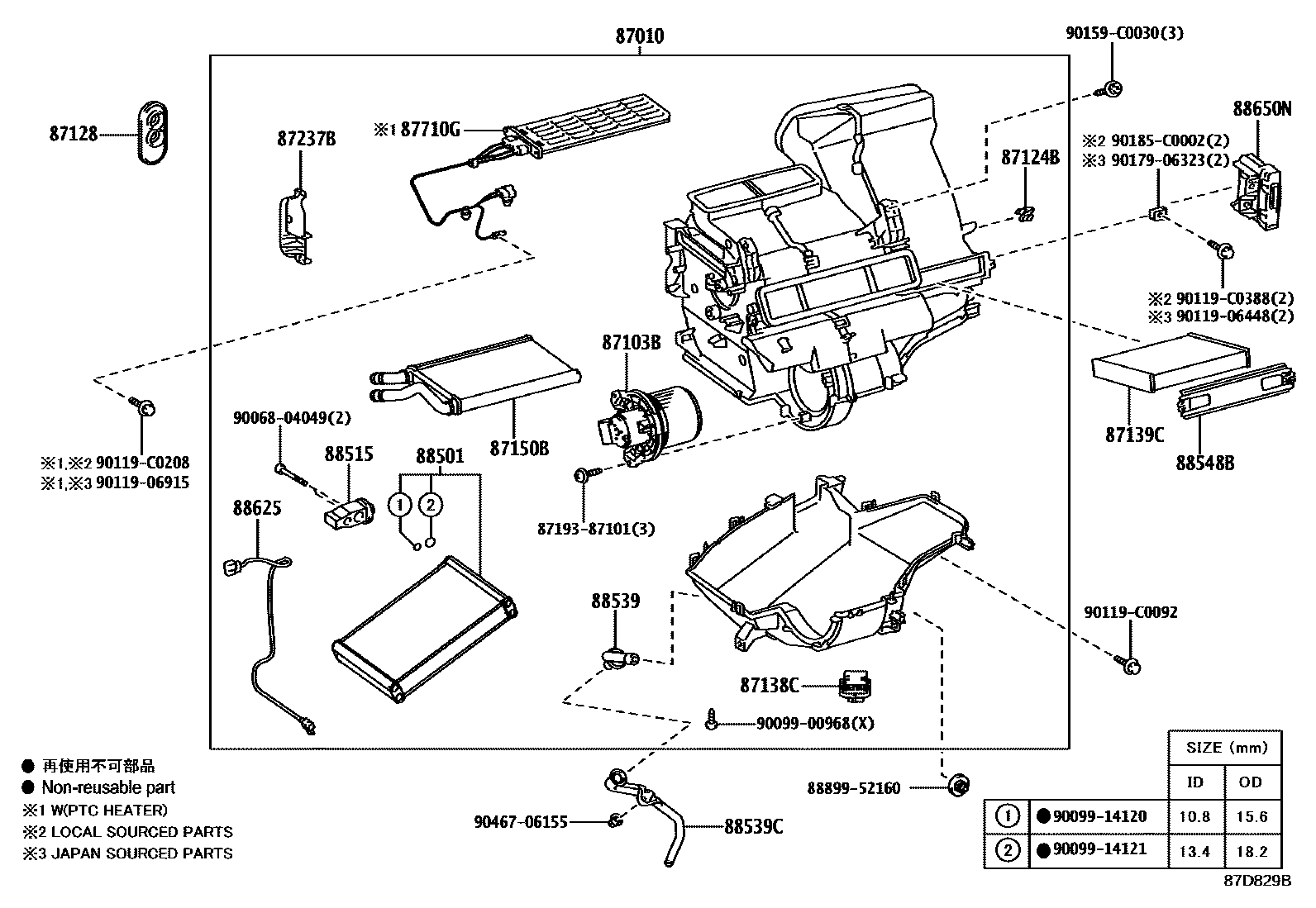

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87010UNIT ASSY, AIR CONDITIONER

main87010-0DA30iNSP15#201312-201608

main87010-0DG10iNSP15#201608-202011

main87010-0DG11iNSP151..N;NSP151..5F..R;NSP151..4D..G202011-202111

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D340iNSP15#201312-202011

main87103-0D341iNSP151..N;NSP151..5F..R;NSP151..4D..G202011-202111

87124BCLAMP, HEATER

main87124-0D200iNSP15#201312-202111

87128GROMMET, HEATER

main87128-0D140iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

87138CRESISTOR, BLOWER

main87138-0D200iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

87139CFILTER, CLEAN AIR

main87139-0D040iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

STANDARD,OE PART

main87139-0D040iNSP15#201312-201608

main87139-50100iNSP151..N;NSP151..5F..R;NSP151..4D..G¥4,000201608-202111

POLLEN DEODORANT

87150BRADIATOR ASSY, HEATER

main87150-0D170iNSP15#201312-202111

87237BCOVER, HEATER PIPING

main87237-0D080iNSP15#201312-202111

87710GQUICK HEATER ASSY

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D291iNSP15#201312-201608

main88501-0D440iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

88515VALVE, COOLER EXPANSION

main88515-0D420iNSP15#201608-202001

sub88515-0D660

main88515-0D660iNSP151..N;NSP151..5F..R;NSP151..4D..G202002-202111

main88515-0F010iNSP15#201312-201608

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D390iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-0D400iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

88548BCASE, AIR FILTER

main88548-0D210iNSP15#201312-202111

88625THERMISTOR, COOLER, NO.1

main88620-0D100iNSP15#201312-202111

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D420iNSP15#201312-201608

main88650-0D640iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

8719387101

main87193-87101¥0

8889952160COVER, EVAPORATOR

main88899-52160¥310

9006804049

main90068-04049

9009900968

main90099-00968

9009914120

main90099-14120¥0

9009914121

main90099-14121

9011906448

main90119-06448¥90

9011906915

main90119-06915¥60

90119C0092

main90119-C0092

90119C0208

main90119-C0208

90119C0388

main90119-C0388

90159C0030

main90159-C0030

9017906323

main90179-06323¥110

90185C0002

main90185-C0002

9046706155

main90467-06155¥70

31 parts on this diagram · 2 diagrams in section
