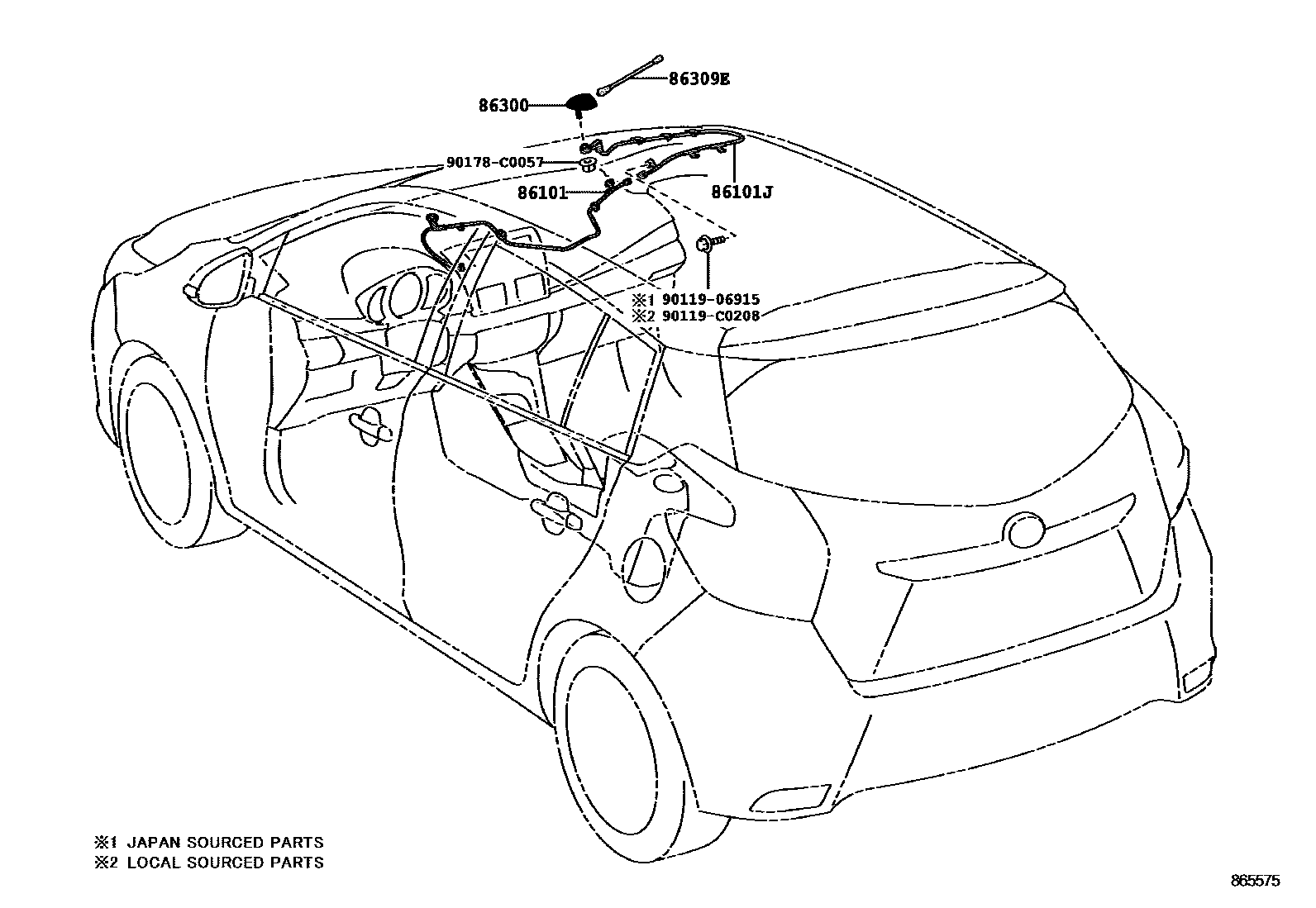

ANTENNA

0001 1 0002 1 0003 1

86101CORD SUB-ASSY, ANTENNA

main86101-0D540iNSP15#201312-201608

main86101-0D820iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D530iNSP15#201312-201608

main86101-0D800iNSP150..4D;NSP151..4D..CVT..R201703-202111

main86101-0D810iNSP150..5D;NSP151..5D..CVT..R201608-202111

main86101-0DB20iNSP151..4D..G201703-202111

MOON ROOF-WITH(TILT & SLIDE)

main86101-0DB30iNSP151..5D..G201608

86300ANTENNA ASSY, W/HOLDER

main86300-0D180iNSP15#201312-201608

main86300-0D350iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main86300-0D360iNSP150..5D;NSP151..5D..CVT..(G,R)201608-202111

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D160iNSP15#201312-201608

main86309-0R030iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

9011906915

main90119-06915

90119C0208

main90119-C0208

90178C0057

main90178-C0057

7 parts on this diagram · 3 diagrams in section
