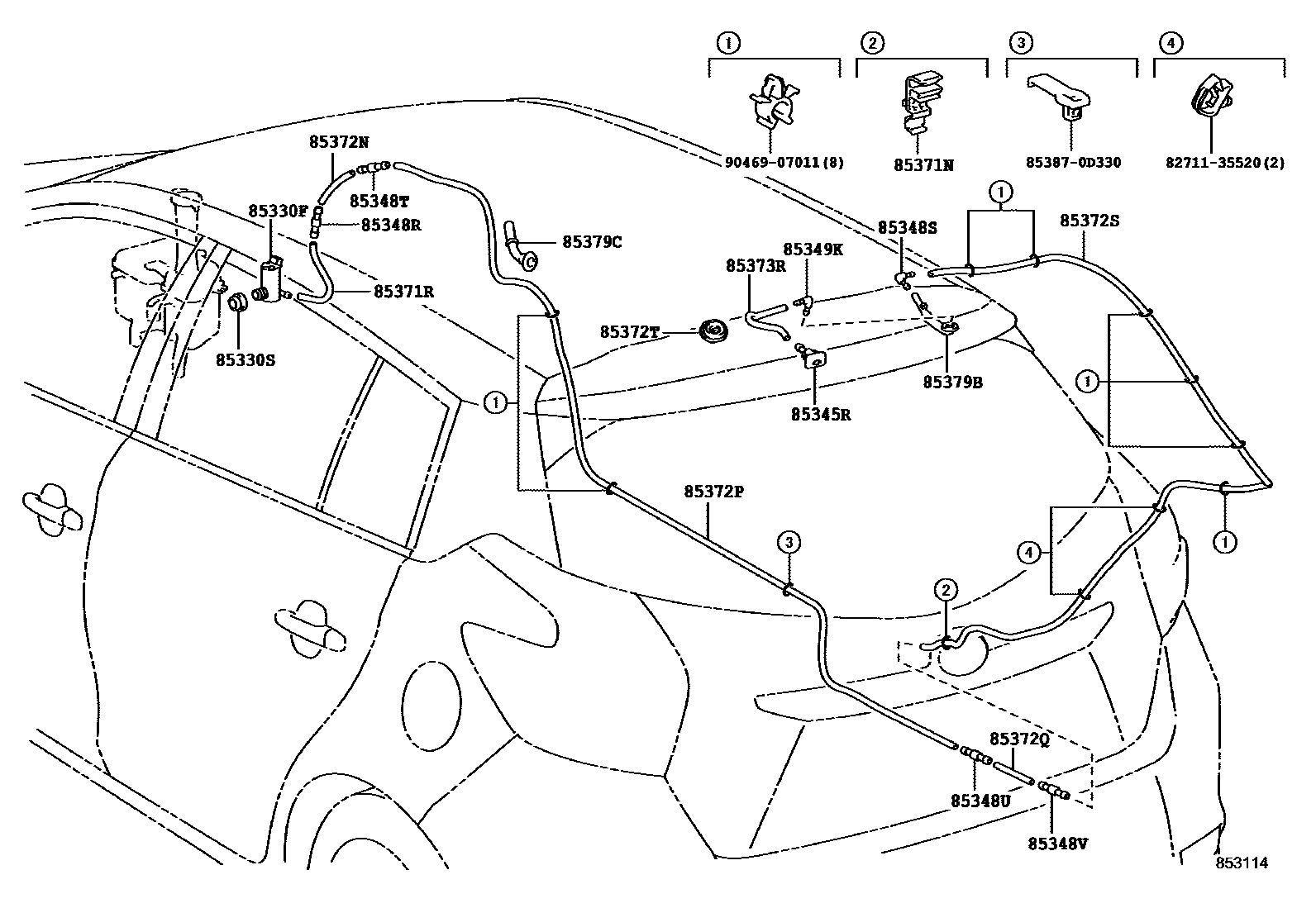

REAR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=190
L=195
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=50
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2290
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=50
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=2290
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=250
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
8271135520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
853870D330CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-0D330
9046907011
22 parts on this diagram · 2 diagrams in section
