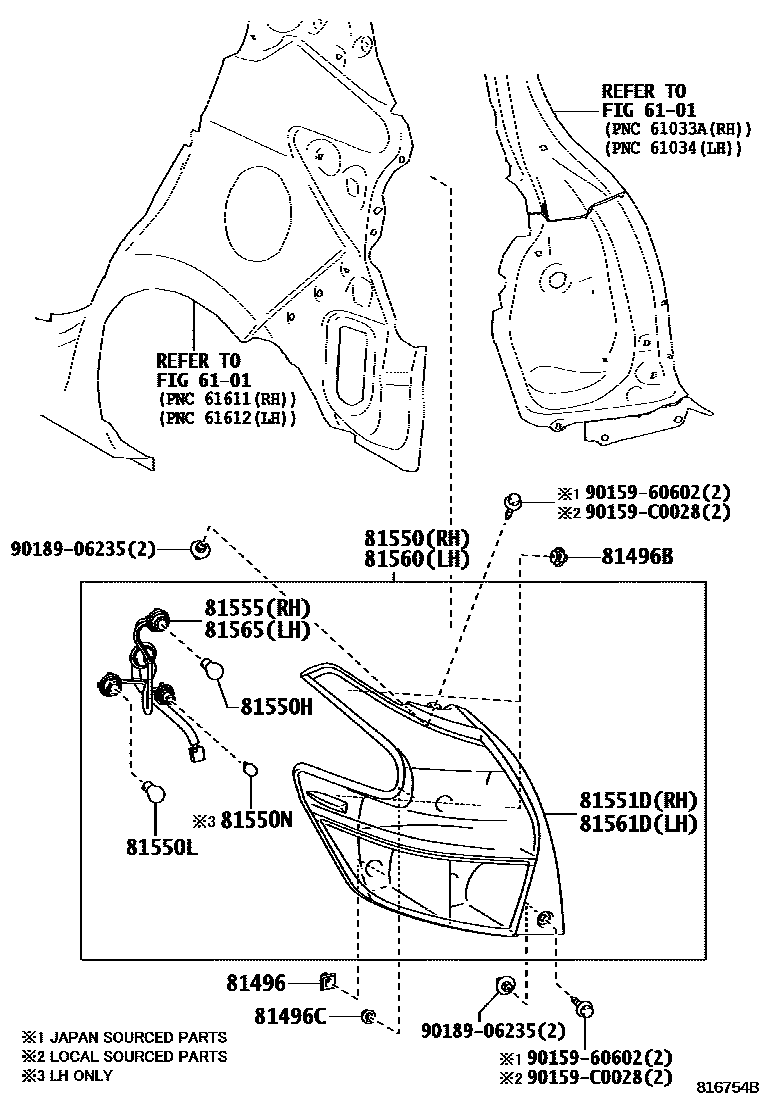

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
SD/HB SPECIAL PACKAGE
(J)
HIGH CROSS PACKAGE
BASE CROSS PACKAGE
BASE UP CROSS PACKAGE
BASE HB, SD PACKAGE
(L)
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550LAMP ASSY, REAR COMBINATION, RH
MID HB, SD PACKAGE
HIGH CROSS PACKAGE
BASE CROSS PACKAGE
BASE UP CROSS PACKAGE
BASE HB, SD PACKAGE
BASE UP HB, SD PACKAGE
HIGH HB, SD PACKAGE
SD/HB SPECIAL PACKAGE
81550HBULB, TAIL & STOP LAMP
12V 5W
12V 21/5W
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 21W
12V 21W
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
MID HB, SD PACKAGE
SD/HB SPECIAL PACKAGE
HIGH CROSS PACKAGE
BASE CROSS PACKAGE
BASE UP CROSS PACKAGE
BASE HB, SD PACKAGE
BASE UP HB, SD PACKAGE
HIGH HB, SD PACKAGE
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9015960602
main90159-60602
90159C0028
main90159-C0028
9018906235
main90189-06235
16 parts on this diagram · 4 diagrams in section
