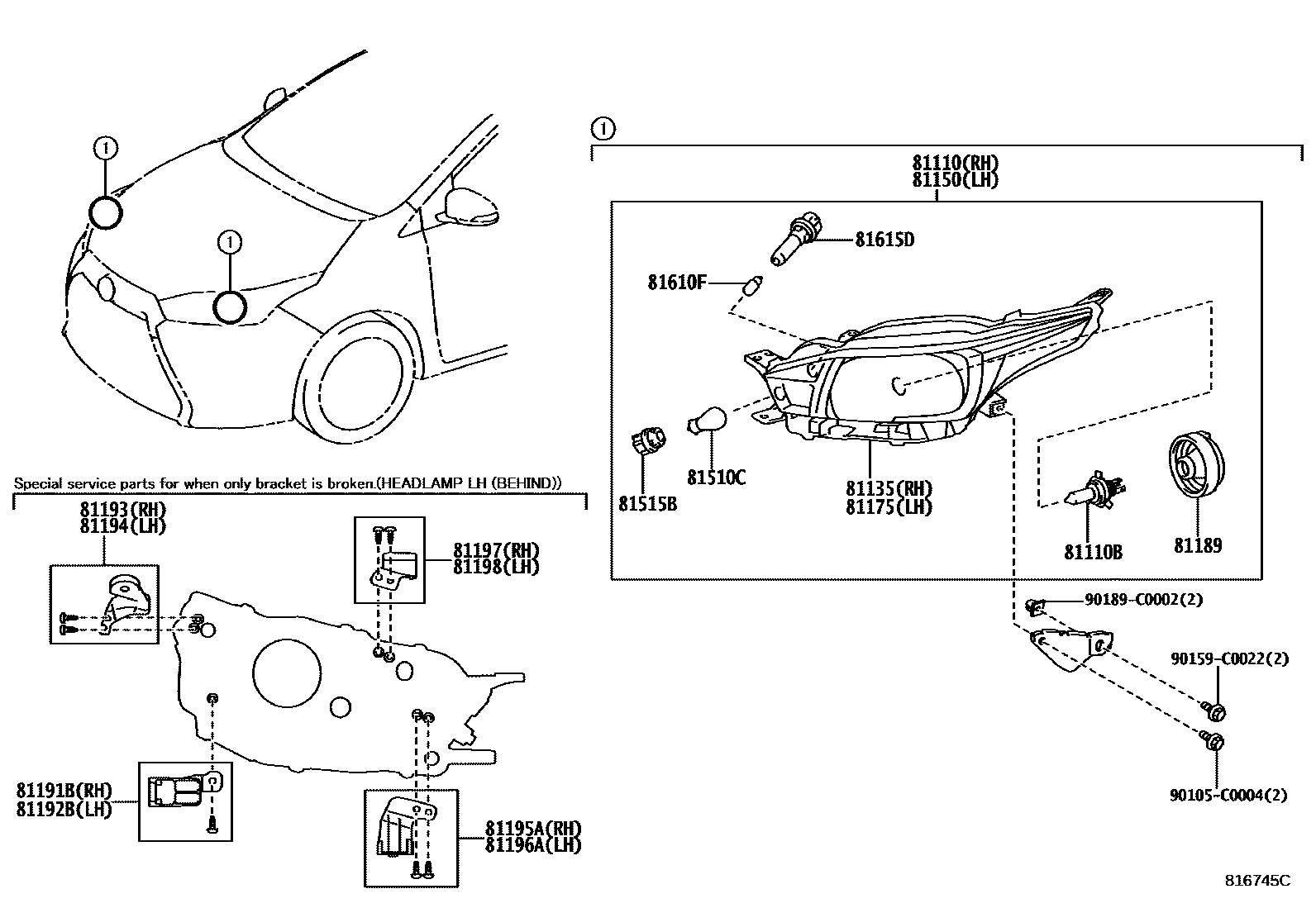

HEADLAMP
81110HEADLAMP ASSY, RH
sub81110-0D551
TWO TONE-ORANGE PACKAGE
TWO TONE PACKAGE
BASE UP CROSS PACKAGE
BASE CROSS PACKAGE
MID HB, SD PACKAGE
BASE UP HB, SD PACKAGE
HIGH HB, SD PACKAGE
HIGH CROSS PACKAGE
BASE CROSS PACKAGE
MID HB, SD PACKAGE
HIGH HB, SD PACKAGE
BASE UP HB, SD PACKAGE
BASE UP CROSS PACKAGE
HIGH CROSS PACKAGE
81110BBULB(FOR HEADLAMP, NO.1)
12V 55W,HALOGEN
12V 55W,HALOGEN,HIGH HB, SD PACKAGE
12V 55W,HALOGEN,HIGH CROSS PACKAGE
81135UNIT ASSY, HEADLAMP, RH
sub81130-0D551
TWO TONE PACKAGE
TWO TONE-ORANGE PACKAGE
BASE UP HB, SD PACKAGE
MID HB, SD PACKAGE
BASE CROSS PACKAGE
BASE UP CROSS PACKAGE
81150HEADLAMP ASSY, LH
sub81150-0D551
TWO TONE PACKAGE
TWO TONE-ORANGE PACKAGE
MID HB, SD PACKAGE
BASE UP HB, SD PACKAGE
BASE UP CROSS PACKAGE
BASE CROSS PACKAGE
HIGH HB, SD PACKAGE
HIGH CROSS PACKAGE
HIGH HB, SD PACKAGE
BASE UP HB, SD PACKAGE
MID HB, SD PACKAGE
BASE CROSS PACKAGE
BASE UP CROSS PACKAGE
HIGH CROSS PACKAGE
81175UNIT ASSY, HEADLAMP, LH
sub81170-0D551
TWO TONE-ORANGE PACKAGE
TWO TONE PACKAGE
BASE UP HB, SD PACKAGE
MID HB, SD PACKAGE
BASE CROSS PACKAGE
BASE UP CROSS PACKAGE
81189COVER, HEADLAMP
HIGH HB, SD PACKAGE
HIGH CROSS PACKAGE
BASE CROSS PACKAGE
BASE UP HB, SD PACKAGE
MID HB, SD PACKAGE
BASE UP CROSS PACKAGE
81191BTAPE, HEADLAMP, RH
81192BTAPE, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER,BASE UP HB, SD PACKAGE
12V 21W,AMBER,MID HB, SD PACKAGE
12V 21W,AMBER,HIGH HB, SD PACKAGE
12V 21W,AMBER
12V 21W,AMBER,HIGH CROSS PACKAGE
12V 21W,AMBER,BASE CROSS PACKAGE
12V 21W,AMBER,BASE UP CROSS PACKAGE
81515BSOCKET, FRONT TURN SIGNAL LAMP
HIGH CROSS PACKAGE
BASE UP HB, SD PACKAGE
MID HB, SD PACKAGE
HIGH HB, SD PACKAGE
BASE CROSS PACKAGE
BASE UP CROSS PACKAGE
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
12V 5W,BASE UP HB, SD PACKAGE
12V 5W,MID HB, SD PACKAGE
12V 5W,BASE CROSS PACKAGE
12V 5W,BASE UP CROSS PACKAGE
81615DSOCKET, CLEARANCE LAMP
BASE UP HB, SD PACKAGE
MID HB, SD PACKAGE
BASE CROSS PACKAGE
BASE UP CROSS PACKAGE
90105C0004
main90105-C0004
90159C0022
main90159-C0022
90189C0002
main90189-C0002
21 parts on this diagram · 4 diagrams in section
