SEAT BELT & CHILD RESTRAINT SEAT

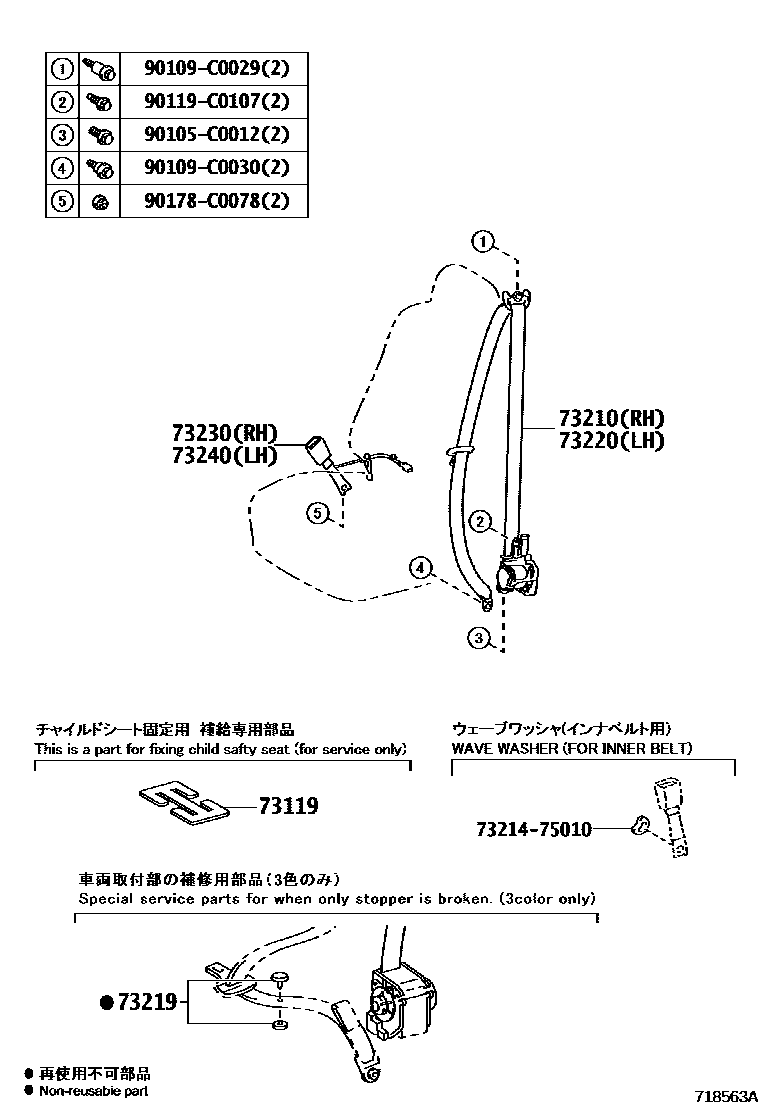

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT 0003 1REAR SEAT BELT 0004 1REAR SEAT BELT

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNSP15#201312-202111

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D400-A0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

IVORY,TRIM0#

main73210-0D400-C0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

BLACK

main73219-33020iNSP15#201312-202111

GRAY

main73219-33030iNSP15#201312-202111

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D390-A0iNSP15#201312-202111

IVORY,TRIM0#

main73220-0D390-C0iNSP15#201312-202111

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D500-A0iNSP15#201312-202111

IVORY,TRIM0#

main73230-0D500-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D510-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

IVORY,TRIM0#

main73230-0D510-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105C0012

main90105-C0012

90109C0029

main90109-C0029

90109C0030

main90109-C0030

90119C0107

main90119-C0107

90178C0078

main90178-C0078

12 parts on this diagram · 4 diagrams in section
