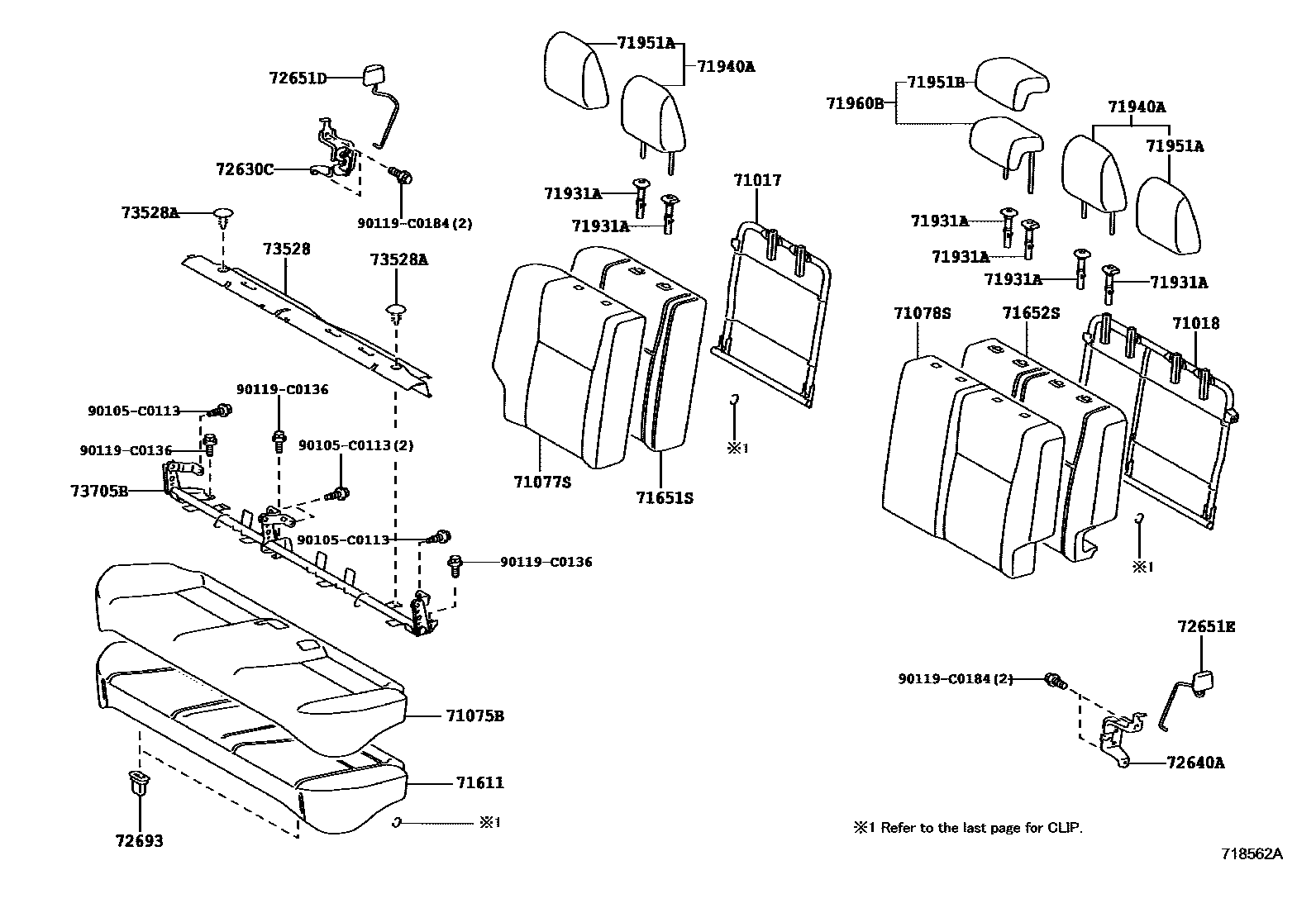

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1SEAT COVER EDGE WIRE & CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D310iNSP151..4D..G201703-202111

main71017-0D430iNSP15#201312-201608

main71017-0D750iNSP150..5D;NSP151..5D..CVT..(G,R)201608

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0D130iNSP151..4D..G201703-202111

main71018-0D230iNSP15#201312-201608

main71018-0D440iNSP151..5D..N;NSP151..5D..5F..R201608-202111

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0DC70-A0iNSP15#..R201312-201608

IVORY,TRIM0#

main71075-0DC70-A1iNSP151..5D..5F..R201608-202111

IVORY,TRIM0#

main71075-0DC70-C0iNSP15#..R201312-201608

BLACK,TRIM2#

main71075-0DC70-C1iNSP151..5D..5F..R201608-202111

BLACK,TRIM2#

main71075-0DC80-A0supersedes 71075-0DC90-A1iNSP15#..N201312-201608

IVORY,TRIM0#

main71075-0DC80-A1iNSP151..5D..N201608-202111

IVORY,TRIM0#

main71075-0DC80-C0supersedes 71075-0DC90-C0iNSP15#..N201312-201608

BLACK,TRIM2#

main71075-0DC80-C2iNSP151..5D..N201608-202111

BLACK,TRIM2#

main71075-0DV80-A0iNSP151..4D..5F..R201703-202111

IVORY,TRIM0#

main71075-0DV80-C0iNSP151..4D..5F..R201703-202111

BLACK,TRIM2#

main71075-0DV90-A0iNSP151..4D..N201703-202111

IVORY,TRIM0#

main71075-0DV90-C0iNSP151..4D..N201703-202111

BLACK,TRIM2#

main71075-0DW00-C0iNSP151..4D..G201911-202111

HIGH HB, SD PACKAGE,BLACK,TRIM2#

main71075-YL010-C2iNSP151..5D..CVT..R201910

BASE HB, SD PACKAGE,BLACK,TRIM2#

main71075-YL030-C1iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE,BLACK,TRIM2#

main71075-YL040-C0iNSP151..4D..CVT..R202112

SD/HB SPECIAL PACKAGE,BLACK,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0DG40-C2supersedes 71077-0DG51-C3iNSP15#..N201312-201603

BLACK,TRIM2#

main71077-0DG40-C3supersedes 71077-0DG51-C2iNSP15#..N201312-201603

IVORY,TRIM0#

main71077-0DG41-C2iNSP15#..N201604-201608

BLACK,TRIM2#

main71077-0DG41-C3iNSP15#..N201604-201608

IVORY,TRIM0#

main71077-0DR30-C2iNSP15#..R201312-201603

BLACK,TRIM2#

main71077-0DR30-C3iNSP15#..R201312-201603

IVORY,TRIM0#

main71077-0DR31-C2iNSP15#..R201604-201608

BLACK,TRIM2#

main71077-0DR31-C3iNSP15#..R201604-201608

IVORY,TRIM0#

main71077-0U040-A0iNSP151..5D..5F..R201608-202111

IVORY,TRIM0#

main71077-0U040-C0iNSP151..5D..5F..R201608-202111

BLACK,TRIM2#

main71077-0U050-A0iNSP151..5D..N201608-202111

IVORY,TRIM0#

main71077-0U050-C0iNSP151..5D..N201608-202111

BLACK,TRIM2#

main71077-0U020-A0iNSP151..4D..5F..R201910-202111

BASE HB, SD PACKAGE,IVORY,TRIM0#

main71077-0U020-C0iNSP151..4D..5F..R201910-202111

BASE HB, SD PACKAGE,BLACK,TRIM2#

main71077-0U070-C0iNSP151..4D..G201911-202111

HIGH HB, SD PACKAGE,BLACK,TRIM2#

main71077-YL010-C2iNSP151..5D..5F..R201910-202111

BASE HB, SD PACKAGE,BLACK,TRIM2#

main71077-YL020-C1iNSP151..5D..G201911

HIGH CROSS PACKAGE,BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0D740-C2supersedes 71078-0D751-C3iNSP15#..N201312-201603

BLACK,TRIM2#

main71078-0D740-C3supersedes 71078-0D751-C2iNSP15#..N201312-201603

IVORY,TRIM0#

main71078-0D741-C2iNSP15#..N201604-201608

BLACK,TRIM2#

main71078-0D741-C3iNSP15#..N201604-201608

IVORY,TRIM0#

main71078-0DB70-C2iNSP15#..R201312-201603

BLACK,TRIM2#

main71078-0DB70-C3iNSP15#..R201312-201603

IVORY,TRIM0#

main71078-0DB71-C2iNSP15#..R201604-201608

BLACK,TRIM2#

main71078-0DB71-C3iNSP15#..R201604-201608

IVORY,TRIM0#

main71078-0DG10-A0iNSP151..5D..5F..R201608-202111

IVORY,TRIM0#

main71078-0DG10-C0iNSP151..5D..5F..R201608-202111

BLACK,TRIM2#

main71078-0DG20-A0iNSP151..5D..N201608-202111

IVORY,TRIM0#

main71078-0DG20-C0iNSP151..5D..N201608-202111

BLACK,TRIM2#

main71078-0DG40-C0iNSP151..4D..G201911-202111

HIGH HB, SD PACKAGE,BLACK,TRIM2#

main71078-YL010-C2iNSP151..5D..CVT..R201910

BASE HB, SD PACKAGE,BLACK,TRIM2#

main71078-YL030-C1iNSP151..5D..G201911-202112

HIGH HB, SD PACKAGE,BLACK,TRIM2#

main71078-YL040-C0iNSP151..4D..CVT..R201910-202112

BASE UP HB, SD PACKAGE,BLACK,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-0D380iNSP15#201312-201608

main71503-0D420iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D460iNSP15#201312-201608

main71651-0D500iNSP151..4D..G201703-202111

main71651-0D710iNSP151..5D..N;NSP151..5D..5F..R201608-202111

main71651-0D490iNSP151..4D..CVT..R201910

BASE HB, SD PACKAGE

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0D260iNSP15#201312-201608

main71652-0D380iNSP151..4D..G201703-202111

main71652-0D390iNSP151..5D..N;NSP151..5D..5F..R201608-202111

71931ASUPPORT, REAR SEAT HEADREST

main71930-02360-A1×3iNSP15#201312-201608

W(LOCK),IVORY,TRIM0#

main71930-02360-C0×3iNSP15#201312-201608

W(LOCK),BLACK,TRIM2#

main71931-02120-A1×3iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

W/O(LOCK),IVORY,TRIM0#

main71931-02120-C0×3supersedes 71931-02120-C0iNSP15#201312-201608

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-0DA20-A0×2iNSP15#..N,R201412-201608

IVORY,TRIM0#

main71940-0DA20-C0×2iNSP15#..N,R201412-201608

BLACK,TRIM2#

main71940-0DA40-A0×2supersedes 71940-0DA50-A1iNSP15#..N,R201312-201412

IVORY,TRIM0#

main71940-0DA40-C0×2supersedes 71940-0DA50-C1iNSP15#..N,R201312-201412

BLACK,TRIM2#

main71940-0DG30-A0×2iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

IVORY,TRIM0#

main71940-0DG30-C0×2iNSP150..4D;NSP151..4D..CVT..R201703

BLACK,TRIM2#

main71940-0DG40-C0×2iNSP151..4D..G201911-202111

HIGH HB, SD PACKAGE,BLACK,TRIM2#

main71940-YL010-C1×2iNSP151..5D..CVT..R201910

BASE HB, SD PACKAGE,BLACK,TRIM2#

main71940-YL020-C1×2iNSP151..5D..CVT..R201910-202112

BASE UP HB, SD PACKAGE,BLACK,TRIM2#

main71940-YL030-C0×2iNSP151..4D..CVT..N201911-202111

MID HB, SD PACKAGE,BLACK,TRIM2#

71951ACOVER, REAR SEAT HEADREST

main71951-0D110-A0×2supersedes 71951-0D320-A0iNSP15#..N,R201312-201412

IVORY,TRIM0#

main71951-0D110-C0×2supersedes 71951-0D320-C0iNSP15#..N,R201312-201412

BLACK,TRIM2#

main71951-0D310×2iNSP15#..N,R201604-201608

main71951-0D310-A0×2iNSP15#..N,R201412-201603

IVORY,TRIM0#

main71951-0D310-C0×2iNSP15#..N,R201412-201603

BLACK,TRIM2#

main71951-0D320×2iNSP151..N201604-201608

TWO TONE PACKAGE

main71951-0D490-A0×2iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

IVORY,TRIM0#

main71951-0D490-C0×2iNSP150..4D;NSP151..4D..CVT..R201703

BLACK,TRIM2#

main71951-0D500-C0×2iNSP151..4D..G201911-202111

HIGH HB, SD PACKAGE,BLACK,TRIM2#

main71951-YL010-C0×2iNSP151..5D..CVT..R201910

BASE HB, SD PACKAGE,BLACK,TRIM2#

main71951-YL020-C0×2iNSP151..5D..CVT..R202112

SD/HB SPECIAL PACKAGE,BLACK,TRIM2#

main71951-YL060-C0×2iNSP151..4D..CVT..R202112

SD/HB SPECIAL PACKAGE,BLACK,TRIM2#

71951BCOVER, REAR SEAT HEADREST, CENTER

main71951-0D220-A1supersedes 71951-0D380-A0iNSP15#..N,R201312-201412

IVORY,TRIM0#

main71951-0D220-C0supersedes 71951-0D380-C0iNSP15#..N,R201312-201412

BLACK,TRIM2#

main71951-0D330iNSP15#..N,R201604-201608

main71951-0D330-A0iNSP151..5D..N;NSP151..5D..5F..R201608-202111

IVORY,TRIM0#

main71951-0D330-C0iNSP15#..N,R201412-201603

BLACK,TRIM2#

main71951-0D510-A0iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

IVORY,TRIM0#

main71951-0D510-C0iNSP150..4D;NSP151..4D..CVT..R201703

BLACK,TRIM2#

main71951-0D340-C1iNSP151..4D..G201911-202111

HIGH HB, SD PACKAGE,BLACK,TRIM2#

main71951-YL030-C0iNSP151..5D..CVT..R201910

BASE HB, SD PACKAGE,BLACK,TRIM2#

main71951-YL040-C0iNSP151..5D..CVT..N201911-202111

MID HB, SD PACKAGE,BLACK,TRIM2#

main71951-YL050-C0iNSP151..4D..CVT..R201910-202112

BASE UP HB, SD PACKAGE,BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0D640-A0supersedes 71960-0D860-A0iNSP15#..N,R201312-201412

IVORY,TRIM0#

main71960-0D640-C0supersedes 71960-0D860-C0iNSP15#..N,R201312-201412

BLACK,TRIM2#

main71960-0D850-A0iNSP15#..N,R201412-201608

IVORY,TRIM0#

main71960-0D850-C0iNSP15#..N,R201412-201608

BLACK,TRIM2#

main71960-0D890-A0iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

IVORY,TRIM0#

main71960-0D890-C0iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

BLACK,TRIM2#

main71960-0D860-C1iNSP151..4D..G201911-202111

HIGH HB, SD PACKAGE,BLACK,TRIM2#

main71960-YL020-C0iNSP151..5D..CVT..R201910

BASE HB, SD PACKAGE,BLACK,TRIM2#

main71960-YL030-C0iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE,BLACK,TRIM2#

main71960-YL040-C0iNSP151..4D..CVT..R202112

SD/HB SPECIAL PACKAGE,BLACK,TRIM2#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-0D130iNSP15#201312-201608

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-0D130iNSP151..5D..N;NSP151..4D..G;NSP151..5D..5F..R201608-202111

72651DROD, REAR SEATBACK LOCK, RH

main72651-0D030-A0iNSP150..5D;NSP151..5D..CVT..(G,R)201608

IVORY,TRIM0#

main72651-0D030-C0iNSP150..5D;NSP151..5D..CVT..(G,R)201608

BLACK,TRIM2#

main72651-0D060-A0iNSP151..4D..G201703-202111

IVORY,TRIM0#

main72651-0D060-C0iNSP151..4D..G201911-202111

BLACK,TRIM2#

72651EROD, REAR SEATBACK LOCK, LH

main72652-0D030-A0iNSP150..5D;NSP151..5D..CVT..(G,R)201608

IVORY,TRIM0#

main72652-0D030-C0iNSP151..5D..N;NSP151..5D..5F..R201608-202111

BLACK,TRIM2#

main72652-0D060-A0iNSP151..4D..G201703-202111

IVORY,TRIM0#

main72652-0D060-C0iNSP151..4D..G201911-202111

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-02030×2iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

main72693-12080×2iNSP15#201312-201608

73528CARPET, REAR SEAT SUB FLOOR, REAR

main73528-0D030iNSP15#201312-201602

main73528-0D031iNSP15#201602-201608

73528ACLIP, REAR SEAT SUB FLOOR CARPET

main90467-05161-C0×7iNSP15#..5D201608-201807

BLACK

main90467-05161-C9×7iNSP151..5D..N;NSP151..5D..5F..R202010-202111

BLACK,(J)

main90467-08186-C0×2iNSP15#201312-201412

BLACK

main90467-C0012-C0×2iNSP15#201501-201608

BLACK

main90467-C0077-C0×7iNSP151..5D..N;NSP151..5D..5F..R202010-202111

BLACK,(L)

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-0D310iNSP151..4D..G201703-202111

main73705-0D490iNSP150..4D;NSP151..4D..CVT..R201703

main73705-0D590iNSP150..5D;NSP151..5D..CVT..(G,R)201608

90105C0113

main90105-C0113

90119C0136

main90119-C0136

90119C0184

main90119-C0184

24 parts on this diagram · 5 diagrams in section
