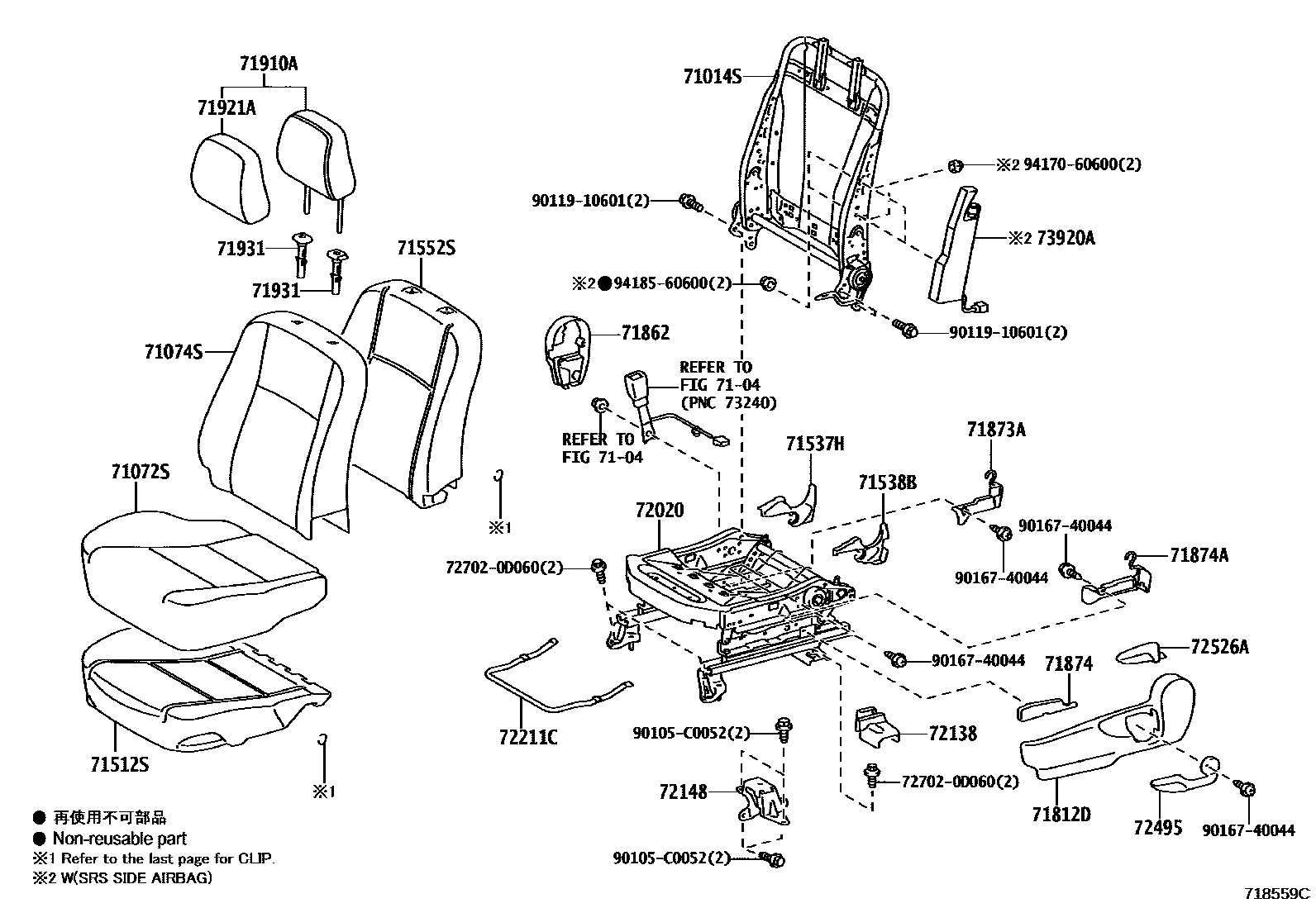

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT 0003 1PASSENGER SEAT 0004 1PASSENGER SEAT 0005 1CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-0D070iNSP151..5F..R201312-202111

main71014-0D080iNSP151..5D..G201312-202111

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0DF70-A0iNSP15#..R201312-201608

IVORY,TRIM0#

main71072-0DF70-C0iNSP15#..R201312-201608

BLACK,TRIM2#

main71072-0DF80-A0iNSP15#..N201312-201608

IVORY,TRIM0#

main71072-0DF80-C0iNSP15#..N201312-201608

BLACK,TRIM2#

main71072-0DF90-A2iNSP151..G201312-201608

IVORY,TRIM0#

main71072-0DF90-A3iNSP151..N201410-201608

TWO TONE PACKAGE,WHITE/BLACK,TRIM2#

main71072-0DF90-A3iNSP151..G201410-201608

WHITE/BLACK,TRIM2#

main71072-0DU41-A1iNSP151..4D..G201703-202111

IVORY,TRIM0#

main71072-0DU50-A2iNSP150;NSP151..CVT..R201608-202111

IVORY,TRIM0#

main71072-0DU50-C2iNSP151..5F..R201608-202111

BLACK,TRIM2#

main71072-0DU60-A3iNSP151..5D..N201608-202111

IVORY,TRIM0#

main71072-0DU60-A5iNSP151..4D..N201703-202111

IVORY,TRIM0#

main71072-0DU60-C4iNSP151..5D..N201608-202111

BLACK,TRIM2#

main71072-0DU60-C5iNSP151..4D..N201703-202111

BLACK,TRIM2#

main71072-0U490-A0iNSP151..5D..G201608

IVORY,TRIM0#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0DD90-A1iNSP15#..R201312-201608

IVORY,TRIM0#

main71074-0DD90-C1iNSP15#..R201312-201608

BLACK,TRIM2#

main71074-0DE10-A1iNSP15#..N201312-201608

IVORY,TRIM0#

main71074-0DE10-C1iNSP15#..N201312-201608

BLACK,TRIM2#

main71074-0DE20-A2iNSP151..G201312-201608

IVORY,TRIM0#

main71074-0DE20-C0iNSP151..G201410-201608

WHITE/BLACK,TRIM2#

main71074-0DE20-C0iNSP151..G201410-201608

TWO TONE PACKAGE,WHITE/BLACK,TRIM2#

main71074-0DS81-A3iNSP151..4D..G201703-202111

IVORY,TRIM0#

main71074-0DS90-A3iNSP150;NSP151..CVT..R201608-202111

IVORY,TRIM0#

main71074-0DS90-C3iNSP151..5F..R201608-202111

BLACK,TRIM2#

main71074-0DT00-A4iNSP151..5D..N201608-201804

IVORY,TRIM0#

main71074-0DT00-C5iNSP151..5D..N201608-201804

BLACK,TRIM2#

main71074-0U240-A0iNSP151..5D..G201608

IVORY,TRIM0#

main71074-0U420-A0iNSP151..4D..N201703-202111

IVORY,TRIM0#

main71074-0U420-A1iNSP151..5D..N201804-202111

IVORY,TRIM0#

main71074-0U420-C0iNSP151..4D..N201703-202111

BLACK,TRIM2#

main71074-0U420-C1iNSP151..5D..N201804-202111

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0D450iNSP15#201312-201608

main71512-0D550iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-0D200-A0iNSP15#201312-202111

IVORY,TRIM0#

main71537-0D200-C0iNSP151..4D..G201312-202111

BLACK,TRIM2#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-0D190-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

IVORY,TRIM0#

main71538-0D190-C0iNSP151..N;NSP151..5F..R201312-202111

BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0D430iNSP15#..R201312-201608

main71552-0D440iNSP15#..G,N201312-201608

main71552-0D540iNSP150;NSP151..CVT..R201608-202111

main71552-0D550iNSP151..N;NSP151..4D..G201608-202111

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0D220-A0iNSP15#..R201312-202111

IVORY,TRIM0#

main71812-0D220-C0iNSP15#..R201312-202111

BLACK,TRIM2#

main71812-0D360-A0iNSP15#..G,N201312-202111

IVORY,TRIM0#

main71812-0D360-C0iNSP151..N201312-202111

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0D170-A0iNSP15#201312-202111

IVORY,TRIM0#

main71862-0D170-C0iNSP151..5D..G201312-202111

BLACK,TRIM2#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-06440iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0D370iNSP15#201312-202111

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06520iNSP15#201312-202111

71910AHEADREST ASSY, FRONT SEAT

main71910-0DF20-A0iNSP151..G201312-201404

IVORY,TRIM0#

sub71910-0DF21

main71910-0DF20-A0iNSP15#..N,R201312-201404

WITHOUT LEATHER PACKAGE,IVORY,TRIM0#

sub71910-0DF21

main71910-0DF20-C0iNSP15#..N,R201312-201404

WITHOUT LEATHER PACKAGE,BLACK,TRIM2#

sub71910-0DF21

main71910-0DF20-C0iNSP151..G201312-201404

BLACK,TRIM2#

sub71910-0DF21

main71910-0DF21-A0iNSP15#..N,R201405-201412

IVORY,TRIM0#

sub71910-0DG90

main71910-0DF21-C0iNSP15#..N,R201405-201412

BLACK,TRIM2#

sub71910-0DG90

main71910-0DF30-A0iNSP151..G201312-201404

IVORY,TRIM0#

sub71910-0DF31

main71910-0DF31-A0iNSP151..G201405-201409

IVORY,TRIM0#

sub71910-0DF31

sub71910-0DJ00

main71910-0DF31-A1iNSP151..G201409-201412

IVORY,TRIM0#

sub71910-0DF31

sub71910-0DJ00

main71910-0DF31-C1iNSP151..N201410-201412

TWO TONE PACKAGE,BLACK,TRIM2#

sub71910-0DF31

sub71910-0DJ00

main71910-0DF31-C1iNSP151..G201410-201412

BLACK,TRIM2#

sub71910-0DF31

sub71910-0DJ00

main71910-0DG90-A0iNSP15#..N,R201412-202111

IVORY,TRIM0#

main71910-0DG90-C0iNSP151..N;NSP151..5F..R201412-202111

BLACK,TRIM2#

main71910-0DJ00-A0iNSP151..G201412-201608

IVORY,TRIM0#

main71910-0DJ00-A1iNSP151..5D..G201608-202111

IVORY,TRIM0#

main71910-0DJ00-C0iNSP151..G201412-201608

BLACK,TRIM2#

main71910-0DJ00-C0iNSP151..G201412-201608

TWO TONE PACKAGE,BLACK,TRIM2#

71921ACOVER, FRONT SEAT HEADREST

main71921-0D410-A0iNSP15#..N,R201312-201412

IVORY,TRIM0#

sub71921-0D450

main71921-0D410-C0iNSP15#..N,R201312-201412

BLACK,TRIM2#

sub71921-0D450

main71921-0D420-A0iNSP151..G201312-201409

IVORY,TRIM0#

sub71921-0D420

sub71921-0D460

main71921-0D420-A1iNSP151..G201409-201412

IVORY,TRIM0#

sub71921-0D420

sub71921-0D460

main71921-0D420-C1iNSP151..N201410-201412

TWO TONE PACKAGE,BLACK,TRIM2#

sub71921-0D420

sub71921-0D460

main71921-0D420-C1iNSP151..G201410-201412

BLACK,TRIM2#

sub71921-0D420

sub71921-0D460

main71921-0D450iNSP15#..N,R201604-201608

main71921-0D450-A0iNSP150;NSP151..CVT..R201412-202111

IVORY,TRIM0#

main71921-0D450-C0iNSP15#..N,R201412-202111

BLACK,TRIM2#

main71921-0D460iNSP151..G201604-201608

TWO TONE-ORANGE PACKAGE

main71921-0D460iNSP151..G201604-201608

TWO TONE PACKAGE

main71921-0D460-A0iNSP151..G201412-201603

IVORY,TRIM0#

main71921-0D460-A1iNSP151..4D..G201608-202111

IVORY,TRIM0#

main71921-0D460-C0iNSP151..N201412-201603

BLACK,TRIM2#

main71921-0D460-C0iNSP151..N201412-201603

TWO TONE PACKAGE,BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0D160-A0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

W(LOCK),IVORY,TRIM0#

main71930-0D160-C0iNSP151..5D..G201312-202111

W(LOCK),BLACK,TRIM2#

main71931-0D170-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

W/O(LOCK),IVORY,TRIM0#

main71931-0D170-C0iNSP150;NSP151..CVT..R201312-202111

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0D530iNSP15#201312-201501

sub72020-0D531

sub73214-75010

main72020-0D531iNSP15#201501-202111

72138COVER, SEAT TRACK, OUTER LH

main72138-0D140-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

IVORY,TRIM0#

main72138-0D140-C0iNSP15#201312-202111

BLACK,TRIM2#

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-0D140iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

72211HANDLE, SEAT TRACK ADJUSTING

main72211-0D200iNSP15#201312-202111

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-0D200iNSP15#201312-202111

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0D070-A0iNSP15#201312-202111

IVORY,TRIM0#

main72495-0D070-C0iNSP151..5D..G201312-202111

BLACK,TRIM2#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0P020-A2iNSP151..G201312-201608

IVORY,TRIM05

main72526-0P020-A2iNSP151..G201312-202111

IVORY,TRIM0#

main72526-0P020-C0iNSP15#..N,R201312-201608

BLACK,TRIM05,2#

main72526-0P020-C0iNSP15#..N,R201312-202111

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0D080iNSP151..N;NSP151..4D..G201312-202111

727020D060BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-0D060

90105C0052

main90105-C0052

9011910601

main90119-10601

9016740044

main90167-40044

9417060600

main94170-60600

9418560600

main94185-60600

30 parts on this diagram · 5 diagrams in section
