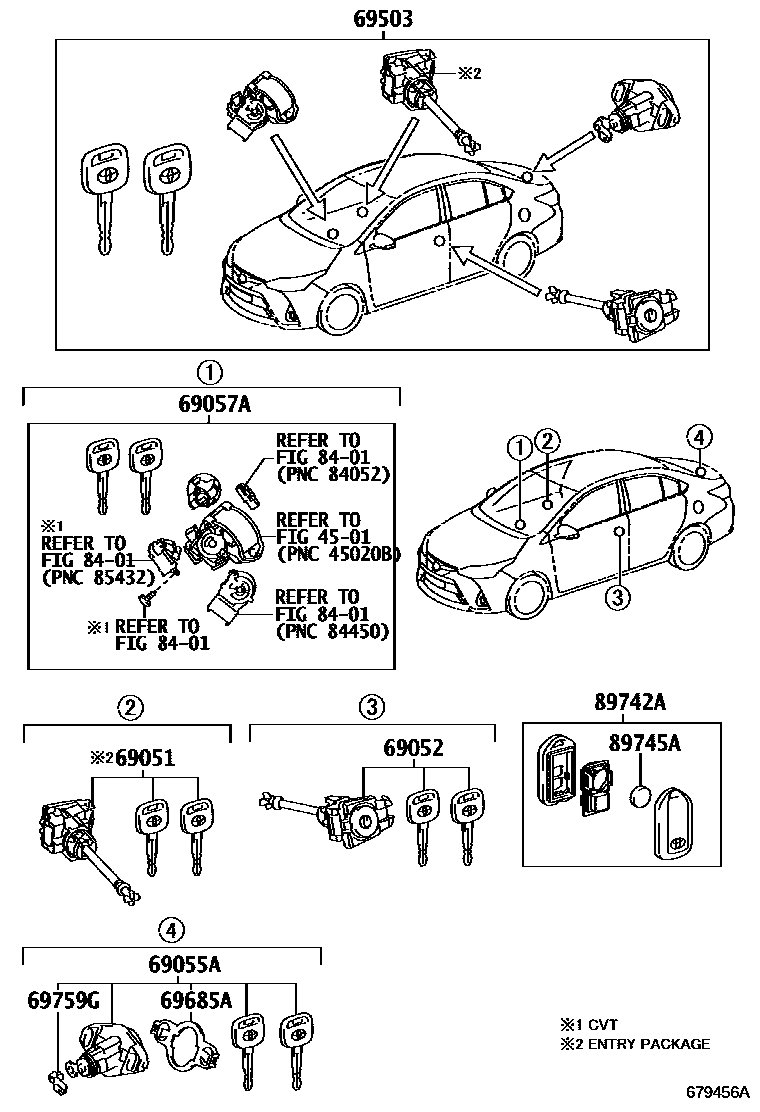

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0002 1W/O(SMART ENTRY) 0003 1W(SMART ENTRY) 0005 1W/O(SMART ENTRY)ENTRY PACKAGE0006 1W/O(SMART ENTRY) 0007 1W(SMART ENTRY)

4501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0D250

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0D260iNSP151..G201312-202111

main69052-0D300iNSP151..N;NSP151..5F..R201312-202111

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-0D360iNSP150..4D;NSP151..4D..CVT..R201703-202111

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0D510iNSP15#..5F..R201312-202111

main69057-0D520iNSP151..5F..N201312-202111

main69057-0D530iNSP15#..4FC..N201312-202111

main69057-0D540iNSP15#..4FC..R201312-201608

69503CYLINDER SET, LOCK

main69005-0DA30iNSP15#..5D..5F..R201312-202111

main69005-0DA40iNSP151..5F..N201312-202111

main69005-0DA50iNSP15#..4FC..N201312-202111

main69005-0DA70iNSP151..5D..G201312-202111

main69005-0DB20iNSP15#..4FC..R201312-201608

main69005-0DF30iNSP15#..4D..5F..R201703-202111

main69005-0DF40iNSP151..4D..5F..N201703-202111

main69005-0DF50iNSP151..4D..CVT..N201703-202111

main69005-0DF60iNSP15#..4D..CVT..R201703

69685APAD, LOCK CYLINDER

main69563-0D040iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

8401

89742ATRANSMITTER, DOOR CONTROL

main89742-0D060iNSP150;NSP151..CVT..R201608-202111

main89742-0D060iNSP15#..N,R201312-201608

ENTRY PACKAGE

89745ABATTERY, TRANSMITTER

main89745-45010iNSP15#..N,R201312-201608

ENTRY PACKAGE

sub89745-50020

main89745-45010iNSP151..N;NSP151..5F..R201608-202111

CR2032

sub89745-50020

11 parts on this diagram · 6 diagrams in section
