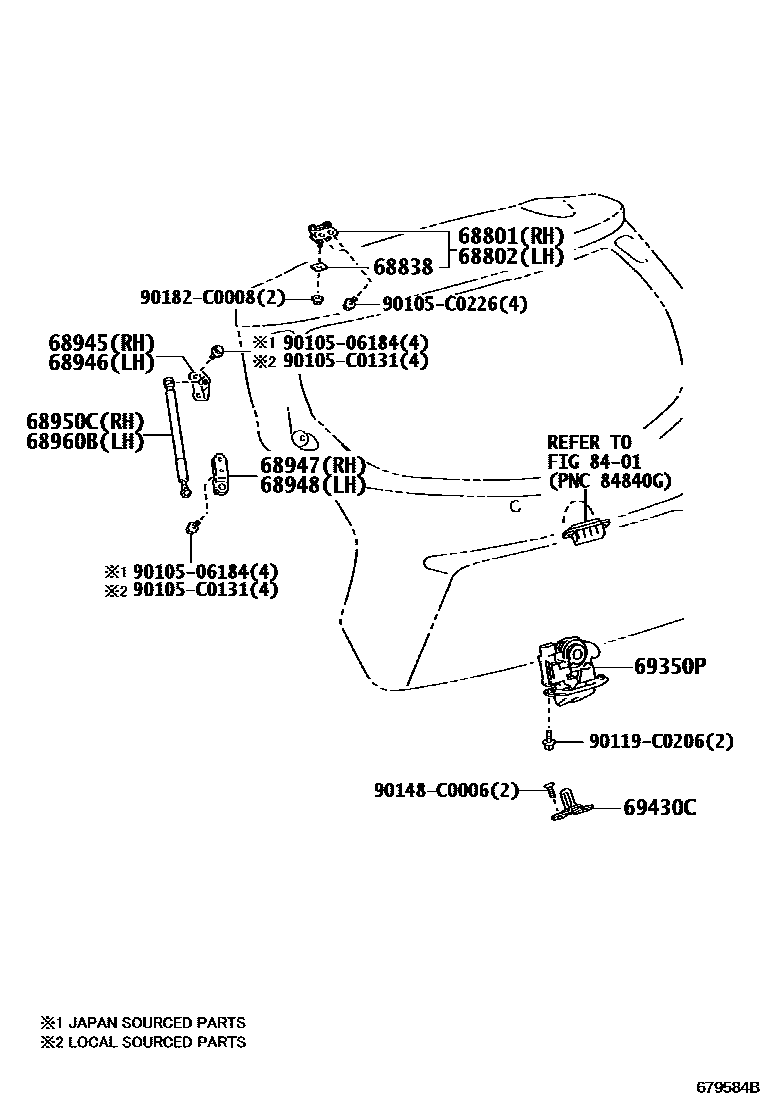

BACK DOOR LOCK & HANDLE

0001 1 0002 1W(LUGGAGE DOOR OPENING SWITCH

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-0D190iNSP15#201312-201512

sub68801-0D191

main68801-0D191iNSP151..5D..N;NSP151..5D..5F..R201601-202111

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-0D190iNSP15#201312-201512

sub68801-0D191

main68801-0D191iNSP150..5D;NSP151..5D..CVT..(G,R)201601-202111

68838PAD, BACK DOOR HINGE, NO.1

main68838-0D140iNSP15#201312-202111

T=0.5

main68838-0D150iNSP15#201312-202111

T=1.0

main68838-0D160iNSP151..5D..N;NSP151..5D..5F..R201312-202111

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0D060iNSP15#201312-202111

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-0D060iNSP15#201312-202111

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0D030iNSP15#201312-202111

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68947-0D030iNSP15#201312-202111

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D100iNSP15#201312-202111

68960BSTAY ASSY, BACK DOOR, LH

main68960-0D040iNSP15#201312-202111

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0D190iNSP15#201312-201512

sub69350-0D191

main69350-0D191iNSP15#201601-202111

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0D100iNSP151..5D..N;NSP151..5D..5F..R201312-202111

8401

9010506184

main90105-06184

90105C0131

main90105-C0131

90105C0226

main90105-C0226

90119C0206

main90119-C0206

90148C0006

main90148-C0006

90182C0008

main90182-C0008

18 parts on this diagram · 2 diagrams in section
