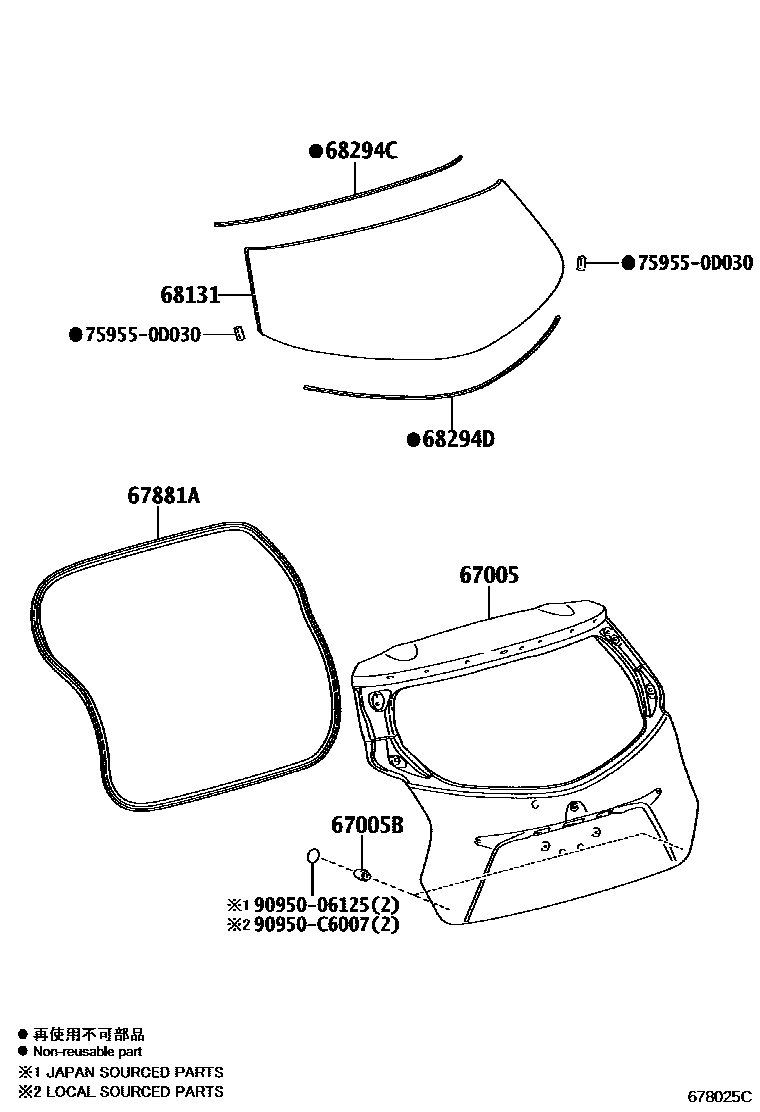

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL(CROSS PACKAGE) 0003 1DOOR TRIM 0004 1DOOR TRIM(CROSS PACKAGE)

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D220iNSP15#201312-202111

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09125iNSP15#201312-202111

67881AWEATHERSTRIP, BACK DOOR

main67881-0D090iNSP15#201312-202111

68131GLASS, BACK DOOR

main68105-0D200iNSP15#201312-201608

*TEM,T=3.1,GREEN

main68105-0D200iNSP15#..5D201608-201809

HIGH CROSS PACKAGE

main68105-0D200iNSP15#..5D201608-201809

BASE CROSS PACKAGE

main68105-0D200iNSP15#..5D201608-201809

BASE UP CROSS PACKAGE

main68105-0D460iNSP151..5D..N;NSP151..5D..5F..R201809-202111

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main64813-0D300iNSP15#201312-202111

68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2

main64814-0D150iNSP15#201312-202111

759550D030PLATE, REAR DOOR SCUFF, OUTSIDE RH

main75955-0D030

9095006125

main90950-06125

90950C6007

main90950-C6007

9 parts on this diagram · 4 diagrams in section
