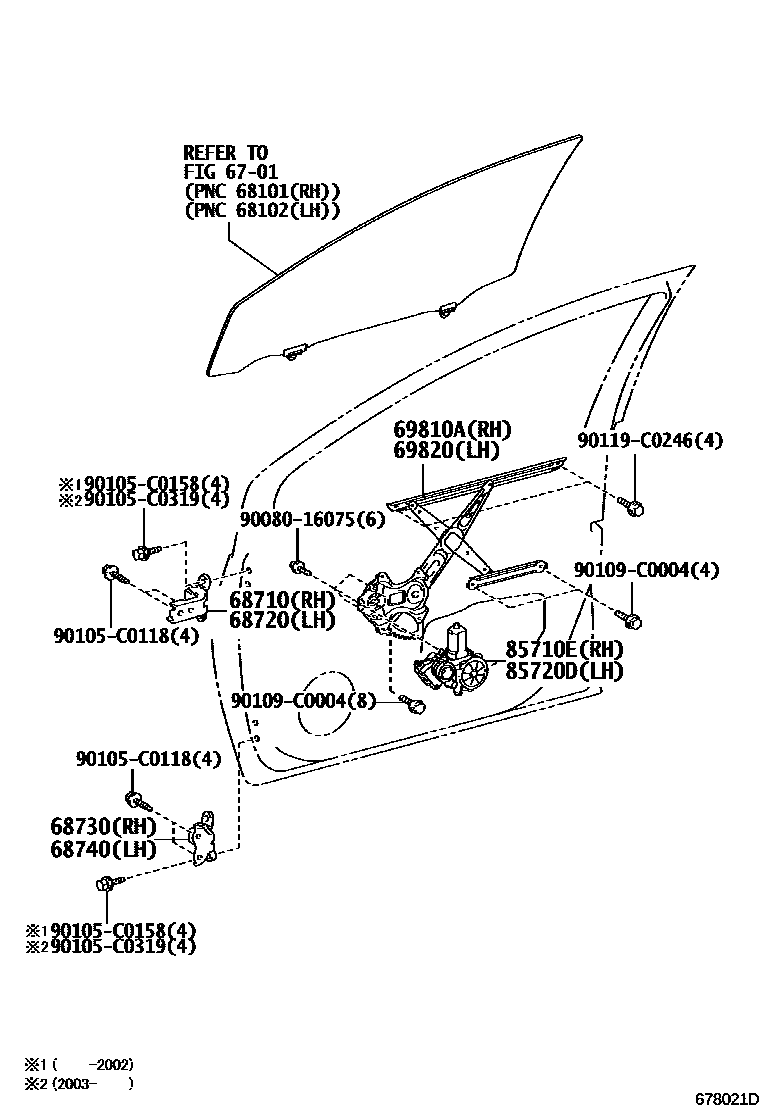

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iNSP15#201312-202111

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iNSP15#201312-202111

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iNSP15#201312-202111

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iNSP15#201312-202111

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-06230iNSP151..N;NSP151..5F..R;NSP151..4D..G201807-202111

main69801-0D190iNSP15#201312-201806

sub69801-06230

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-06230iNSP151..N;NSP151..5F..R;NSP151..4D..G201807-202111

main69802-0D200iNSP15#201312-201806

sub69802-06230

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-06190iNSP15#201312-201403

sub85710-35180

main85710-0D231iNSP151..N;NSP151..5F..R;NSP151..4D..G201404-202111

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-06210iNSP15#201312-201403

sub85720-35140

main85720-0D271iNSP15#201404-202111

9008016075

main90080-16075

90105C0118

main90105-C0118

90105C0158

main90105-C0158

90105C0319

main90105-C0319

90109C0004

main90109-C0004

90119C0246

main90119-C0246

15 parts on this diagram · 1 diagram in section
