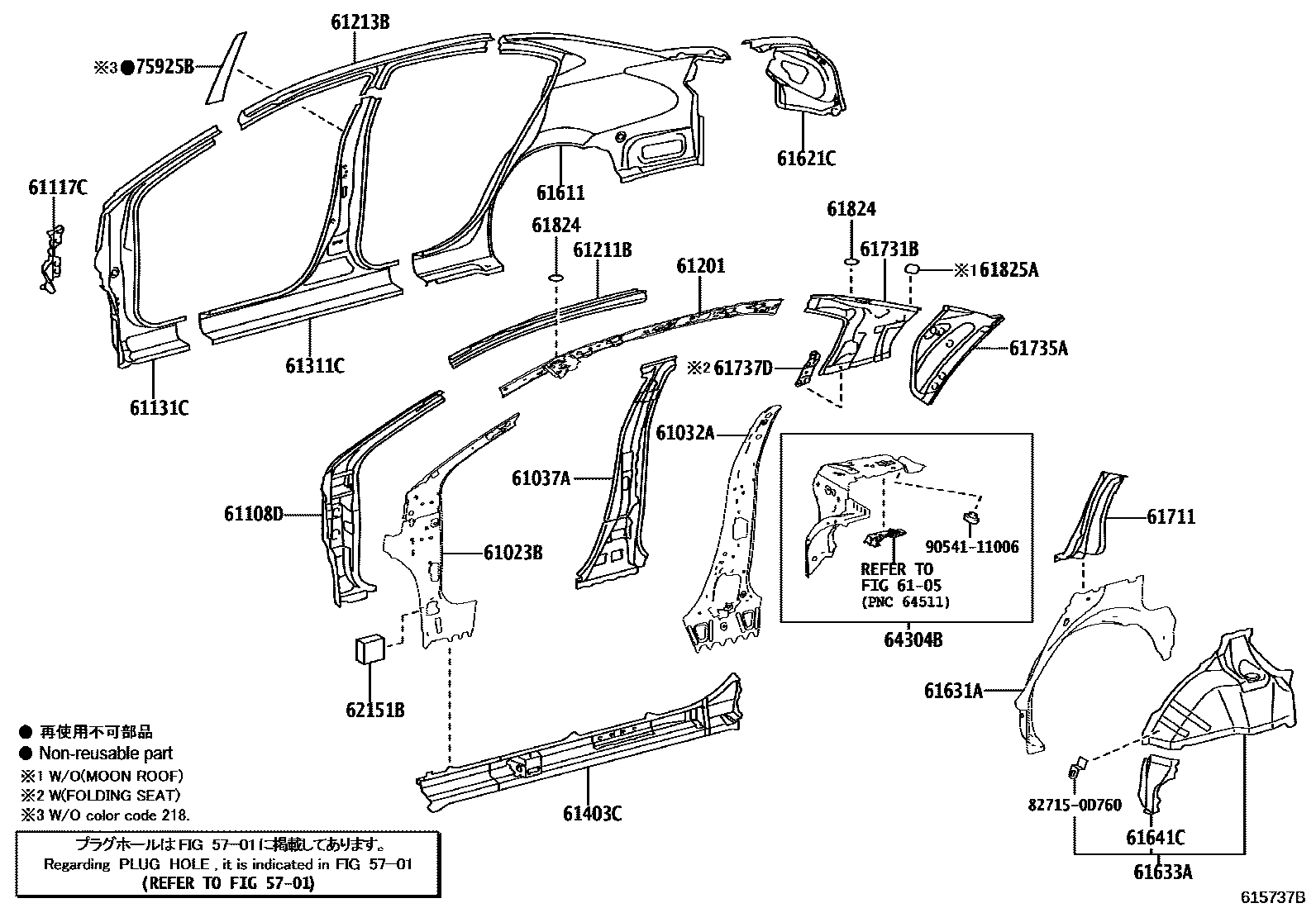

SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0D180iNSP15#201312-202111

61032APILLAR SUB-ASSY, NO.1 INNER, RH

main61032-0D110iNSP15#201312-202111

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0D913iNSP15#201312-202111

6105

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-0D130iNSP15#201312-202111

61117CGUSSET, SIDE PANEL TO COWL, RH

main61117-0D040iNSP15#201312-202111

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0D180iNSP15#201312-202111

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-0D130iNSP15#201312-202111

main61201-0D190iNSP150..4D;NSP151..4D..CVT..R201703-202111

61211RAIL, ROOF SIDE, OUTER RH

main61211-0D160iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

61211BRAIL, ROOF SIDE, OUTER REAR RH

main61211-0D230iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D160iNSP15#201312-202111

main61213-0D230iNSP150..4D;NSP151..4D..CVT..R201703-202111

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-0D100iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0D190iNSP15#201312-201606

sub61403-0D191

main61403-0D191iNSP151..5D..CVT..R201608-201705

BASE CROSS PACKAGE

main61403-0D191iNSP15#201608-201705

HIGH CROSS PACKAGE

main61403-0D191iNSP15#201608-201705

BASE UP CROSS PACKAGE

main61403-0D280iNSP151..N;NSP151..5F..R;NSP151..4D..G201705-202111

main61403-0D400iNSP15#201607-201608

61611PANEL, QUARTER, RH

main61601-0D330iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

main61601-0D380iNSP150..4D;NSP151..4D..CVT..R201703-202111

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61063-0D080iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-K0010iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main61631-K0030iNSP15#201312-202111

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61605-0D040iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main61607-0D290iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0D070iNSP15#201312-202111

61711PANEL, ROOF SIDE, OUTER RH

main61711-K0010iNSP150..4D;NSP151..4D..CVT..R201703-202111

main61711-K0020iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

61731BPANEL, ROOF SIDE, INNER RH

main61731-K0031iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main61731-K0040iNSP15#201312-202111

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0D090iNSP15#201312-201807

sub61735-0D091

main61735-0D091iNSP150..5D;NSP151..5D..CVT..(G,R)201808-202111

main61735-K0010iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-0D050iNSP15#201312-202111

main61737-0D130iNSP151..4D..G201703-202111

61824PLATE, NOISE CONTROL, NO.1

main61824-0D050iNSP15#201312-202111

61825APLATE, NOISE CONTROL, NO.2

main61825-0D040iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

62151BPAD, COWL SIDE SILENCER

main62151-0D120iNSP15#201312-202111

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-0D160iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

75925BTAPE, BLACK OUT, NO.3 RH

main75925-0D070iNSP15#201312-202111

827150D760BRACKET,WIRING HARNESS CLAMP

main82715-0D760

9054111006

main90541-11006

30 parts on this diagram · 4 diagrams in section
