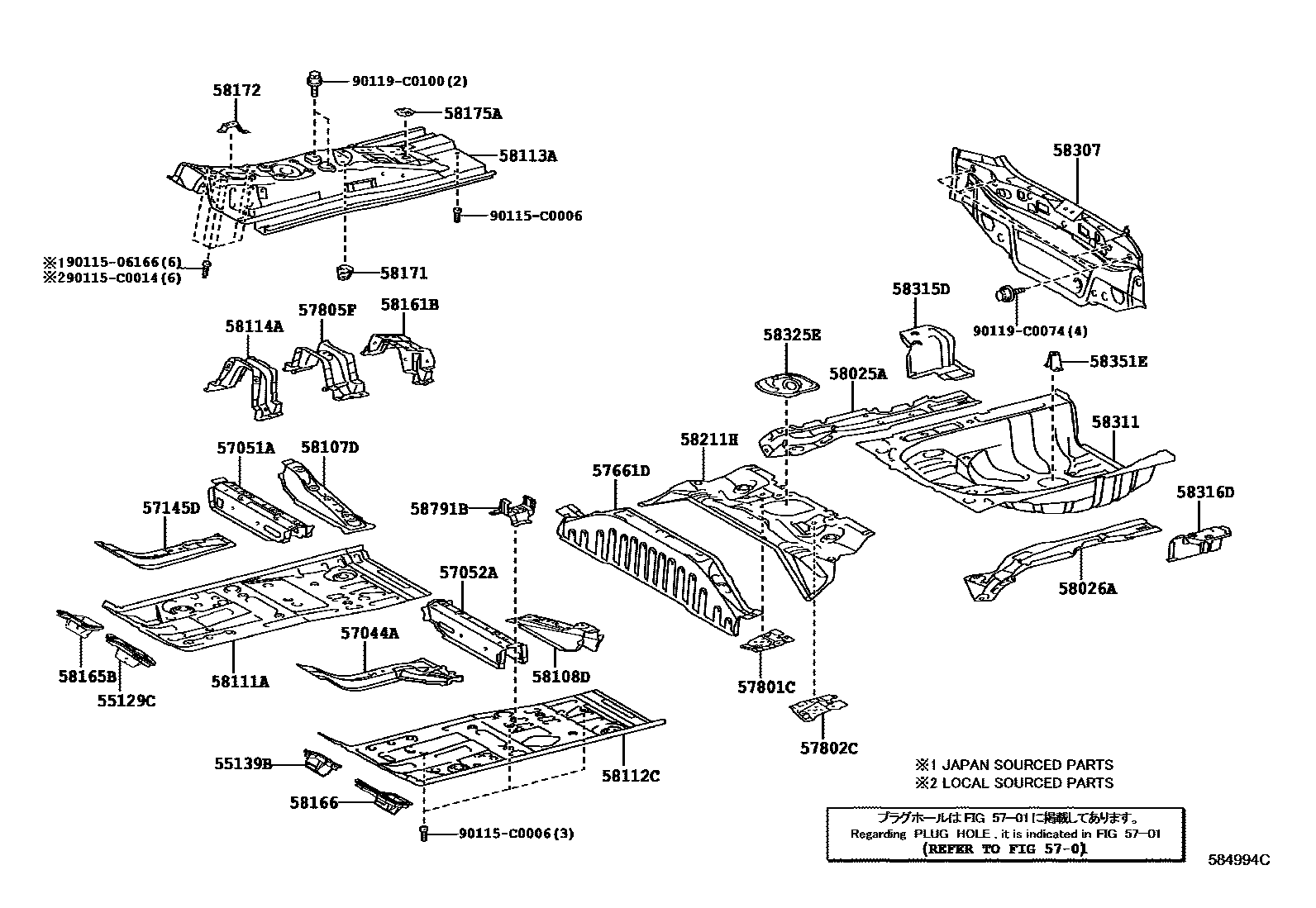

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

55129CCOVER, DASH PANEL HOLE

main55129-0D120iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

55139BCOVER, DASH PANEL HOLE, LH

main55139-0D040iNSP15#201312-201608

5701

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D060iNSP15#201312-201608

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0D020iNSP15#201312-201608

main57051-0D070iNSP151..N;NSP151..5F..R;NSP151..4D..G201804-202111

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0D020iNSP15#201312-201608

main57052-0D070iNSP151..N;NSP151..5F..R;NSP151..4D..G201804-202111

57145DREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN

main57145-0D061iNSP15#201312-201608

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-0D090iNSP15#201312-201608

57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH

main57801-0D110iNSP15#201312-201608

57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH

main57802-0D100iNSP15#201312-201608

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-0D080iNSP15#201312-201608

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-0D050iNSP15#201312-201608

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-0D050iNSP15#201312-201608

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D020iNSP15#201312-201608

main58107-0D090iNSP151..N;NSP151..5F..R;NSP151..4D..G201804-202111

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D020iNSP15#201312-201608

main58108-0D060iNSP151..N;NSP151..5F..R;NSP151..4D..G201804-202111

58111APAN, FRONT FLOOR, RH

main58111-0D120iNSP15#201312-201608

58112CPAN, FRONT FLOOR, LH

main58112-0D907iNSP15#201312-201608

58113APANEL, FRONT FLOOR, CENTER

main58113-0D909iNSP15#201312-201608

main58113-0D922iNSP151..N;NSP151..5F..R;NSP151..4D..G201709-202111

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D080iNSP15#201312-201608

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D110iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

58165BCOVER, FRONT FLOOR, RH

main58165-0D030iNSP15#201312-201608

58166COVER, FRONT FLOOR, LH

main58166-0D030iNSP15#201312-201608

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D040iNSP15#201312-201608

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0D020iNSP15#201312-201608

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D010iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

58211HPAN, CENTER FLOOR

main58211-0D120iNSP15#201312-201608

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D070iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main58307-0D240iNSP15#201312-201608

58311PAN, REAR FLOOR

main58311-0D120iNSP15#201312-201608

main58311-0D170iNSP151..5D..N;NSP151..5D..5F..R201703-202111

main58311-0D230iNSP150..4D;NSP151..4D..CVT..R201703

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D100iNSP15#201312-201608

main58315-0D190iNSP150..4D;NSP151..4D..CVT..R201703

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D100iNSP150..5D;NSP151..5D..CVT..(G,R)201608

main58316-0D210iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D080iNSP15#201312-201608

58351EBRACKET, SPARE WHEEL CLAMP

main58351-0D090iNSP15#201312-201608

58791BCARRIER, JACK

main58791-0D080iNSP15#201312-201608

9011506166

main90115-06166

90115C0006

main90115-C0006

90115C0014

main90115-C0014

90119C0074

main90119-C0074

90119C0100

main90119-C0100

38 parts on this diagram · 3 diagrams in section
