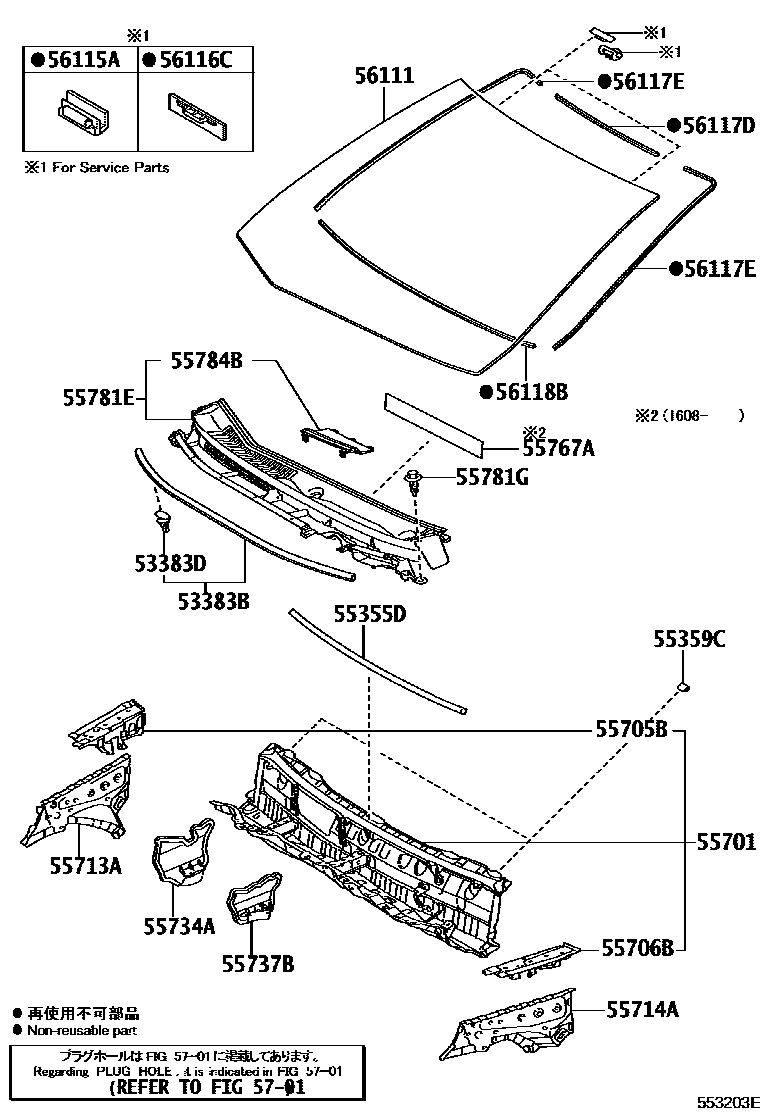

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0D160iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0D090iNSP15#201312-202111

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-0D200iNSP15#201312-202111

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-52160iNSP15#201312-202111

55701PANEL SUB-ASSY, COWL

main55700-0D240iNSP15#201312-202111

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D130iNSP15#201312-202111

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D130iNSP15#201312-202111

55713APANEL, COWL TOP SIDE, RH

main55713-0D120iNSP15#201312-202111

55714APANEL, COWL TOP SIDE, LH

main55714-0D120iNSP15#201312-202111

55734APLATE, WATER GUARD, RH

main55734-0D080iNSP15#201312-202111

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D190iNSP15#201312-202111

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-0D100iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D290iNSP15#201312-201608

sub55708-0D291

main55708-0D450iNSP15#201608-201702

sub55708-0D451

main55708-0D451iNSP15#201703-201704

main55708-0D470iNSP151..N;NSP151..5F..R;NSP151..4D..G201704-202111

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-02040iNSP151..N;NSP151..5F..R;NSP151..4D..G201503-202111

(L)

main52161-16010iNSP15#201312-201503

sub52161-0K040

main52161-16010iNSP151..N;NSP151..5F..R;NSP151..4D..G201503-202111

(J)

sub52161-0K040

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0D090iNSP15#201312-202111

56111GLASS, WINDSHIELD

main56101-0D440iNSP15#201312-201606

*LAM,T=4.56,GREEN

sub56101-0DA70

main56101-0DA70iNSP151..N;NSP151..5F..R;NSP151..4D..G201607-202111

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNSP15#201312-202111

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNSP15#201312-202111

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0D190iNSP15#201312-202111

L=549

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D200iNSP15#201312-202111

L=915

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-0D210iNSP15#201312-202111

L=1182

5701

22 parts on this diagram · 1 diagram in section
