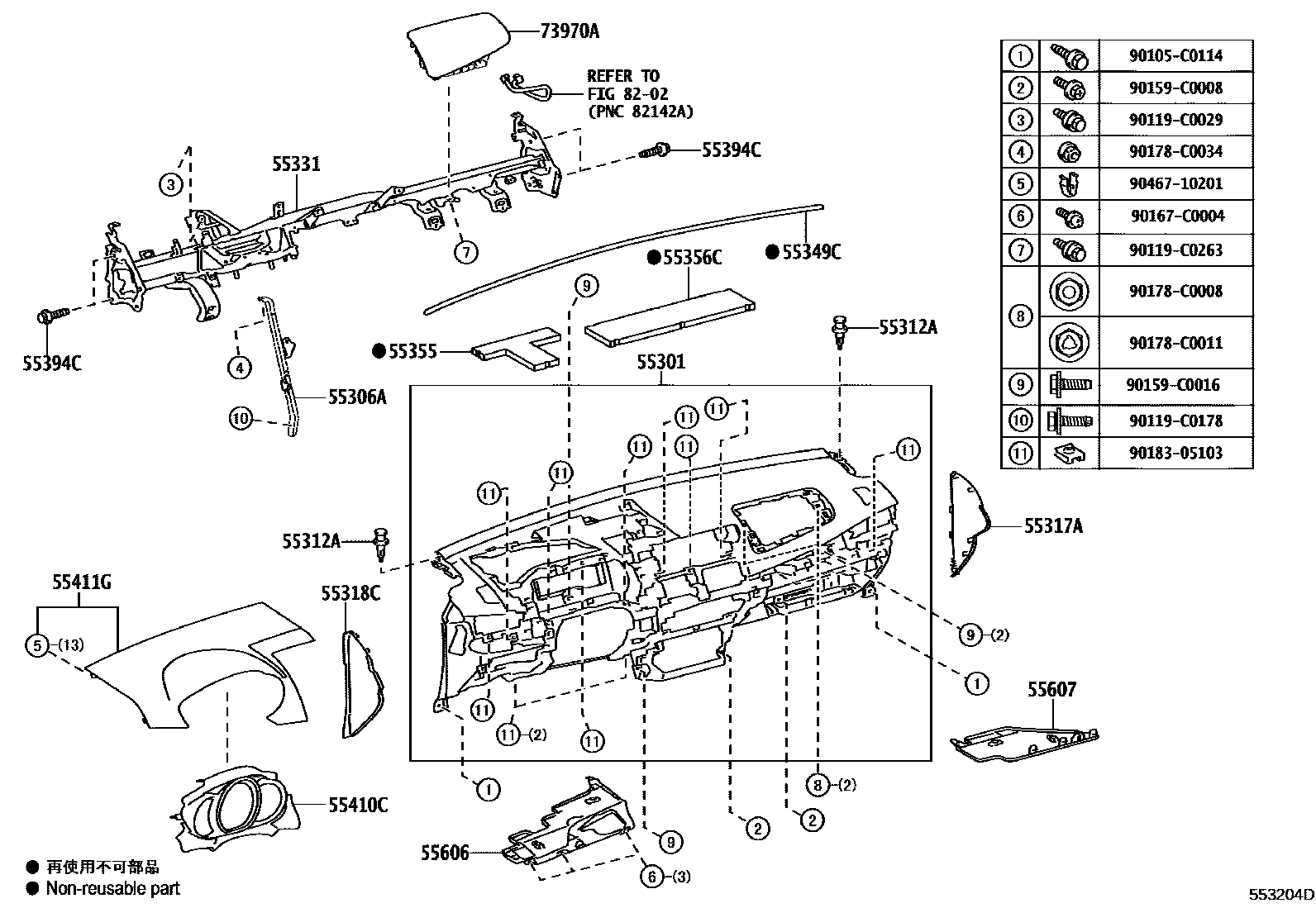

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE 0007 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55310-0D100-E0iNSP15#201312-201512

DK. BROWN,TRIM0#,2#

sub55310-0D101

main55310-0D101-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM0#,2#

main55310-0D101-E0iNSP15#201601-201608

DK. BROWN,TRIM0#,2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D240iNSP15#201312-202111

55312ACLIP, INSTRUMENT PANEL

main52161-02040iNSP151..N;NSP151..5F..R;NSP151..4D..G201506-202111

(L)

main52161-16010iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201506-202111

(J)

sub52161-0K040

main52161-16010iNSP15#201312-201506

sub52161-0K040

55317APANEL, INSTRUMENT SIDE, RH

main55317-0D100-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM0#,2#

main55317-0D100-E0iNSP15#201312-201608

DK. BROWN,TRIM0#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0D080-C0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

BLACK,TRIM0#,2#

main55318-0D080-E0iNSP15#201312-201608

DK. BROWN,TRIM0#,2#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D500iNSP15#201312-201608

main55330-0D730iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

55349CCUSHION, INSTRUMENT PANEL

main55349-0D180iNSP15#201312-202111

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D180iNSP15#201312-201703

main55355-0D181iNSP151..N;NSP151..5F..R;NSP151..4D..G201703-202111

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D170iNSP15#201312-201703

main55356-0D171iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201703-202111

55394CBOLT, INSTRUMENT PANEL

main55394-52010iNSP151..N;NSP151..5F..R;NSP151..4D..G202102-202111

(J)

main55394-52010iNSP15#201312-202102

main90105-C0440iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202102-202111

(L)

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-0D090iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-0D190-E0iNSP15#201312-201512

DK. BROWN,TRIM0#,2#

sub55411-0D191

main55411-0D191-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM0#,2#

main55411-0D191-E0iNSP15#201601-201608

DK. BROWN,TRIM0#,2#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-0D110iNSP15#201312-201807

sub55606-0D111

main55606-0D111iNSP151..N;NSP151..5F..R;NSP151..4D..G201808-202111

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-0D120iNSP15#201312-201703

main55607-0D121iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201703-202111

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0D150-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM0#,2#

main73970-0D150-E0iNSP15#201312-201608

DK. BROWN,TRIM0#,2#

8202

90105C0114

main90105-C0114

90119C0029

main90119-C0029

90119C0178

main90119-C0178

90119C0263

main90119-C0263

90159C0008

main90159-C0008

90159C0016

main90159-C0016

90167C0004

main90167-C0004

90178C0008

main90178-C0008

90178C0011

main90178-C0011

90178C0034

main90178-C0034

9018305103

main90183-05103

9046710201

main90467-10201

28 parts on this diagram · 7 diagrams in section
