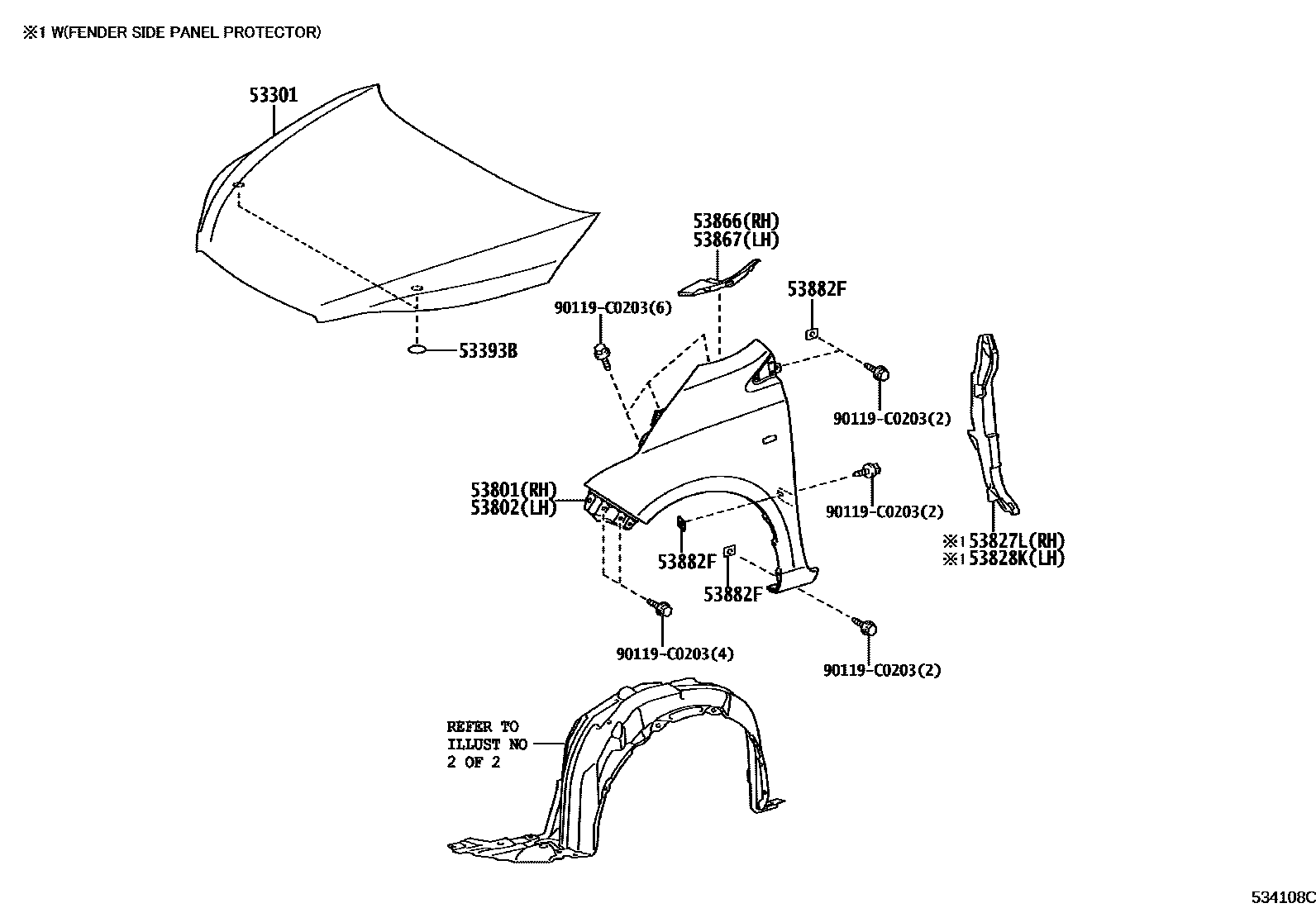

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1 0005 1CROSS PACKAGE

53301HOOD SUB-ASSY

main53301-0D170iNSP15#201312-202111

53393BPROTECTOR, HOOD, FRONT

main90950-06124iNSP15#201604-202111

(J)

main90950-06124iNSP15#201312-201604

main90950-C6006iNSP151..N;NSP151..5F..R;NSP151..4D..G201604-202111

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-0D030iNSP15#201312-202111

53802FENDER SUB-ASSY, FRONT LH

main53802-0D030iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D130iNSP15#..G,N201312-201608

COLD AREA SPEC

sub53827-0D280

main53827-0D280iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D130iNSP15#..G,N201312-201608

COLD AREA SPEC

sub53828-0D280

main53828-0D280iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D130iNSP15#201312-202111

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D130iNSP15#201312-202111

53882FSEAL, FRONT FENDER

main53882-0D030iNSP151..N;NSP151..5F..R;NSP151..4D..G201808-202111

(L)

main53882-33060iNSP15#201312-201808

main53882-33060iNSP151..N;NSP151..5F..R;NSP151..4D..G201808-202111

(J)

90119C0203

main90119-C0203

10 parts on this diagram · 5 diagrams in section
