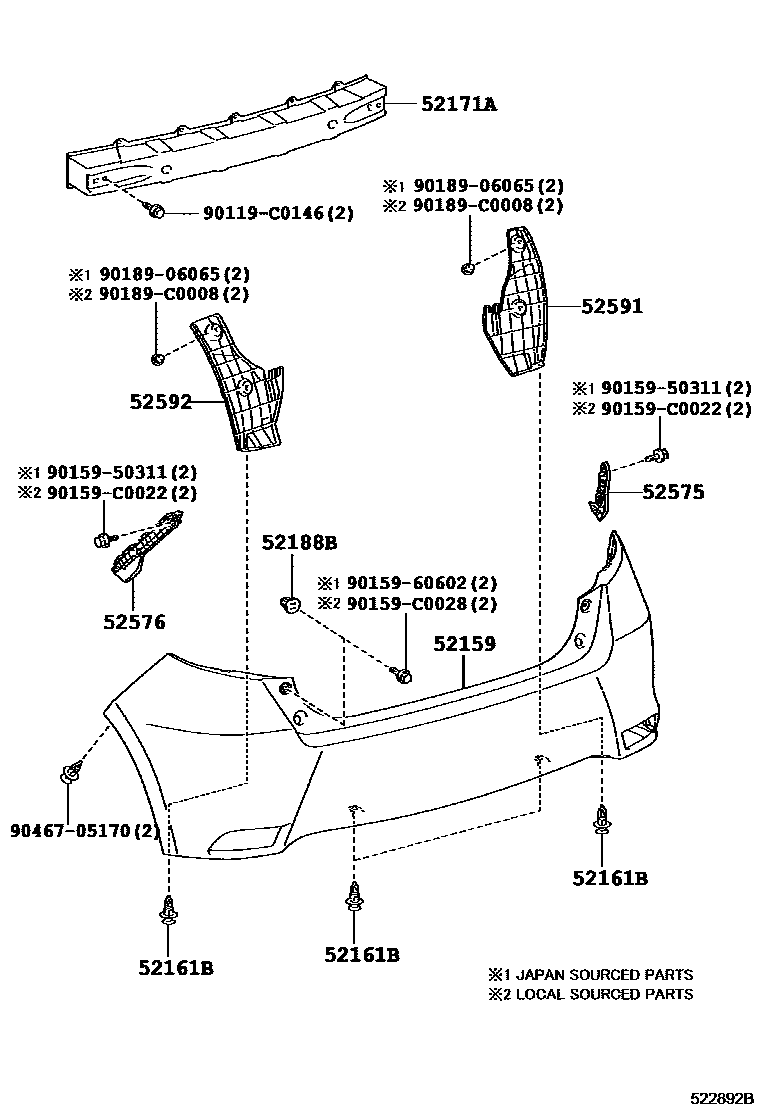

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1CROSS PACKAGE

52159COVER, REAR BUMPER

main52159-0U915iNSP15#201312-201608

PAINT REQ.

main52159-0Z930iNSP150..5D;NSP151..5D..CVT..(G,R)201608

main52159-0Z931iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main52159-YL900iNSP151..5D..G201911

PAINT REQ.,HIGH CROSS PACKAGE

main52159-YL901iNSP151..5D..CVT..R201910

PAINT REQ.,BASE UP CROSS PACKAGE

main52159-YL902iNSP151..5D..CVT..R202112

PAINT REQ.,SD/HB SPECIAL PACKAGE

main52159-YL903iNSP151..4D..CVT..R201910

PAINT REQ.,BASE HB, SD PACKAGE

52161BPIECE, REAR BUMPER

main52161-02040×6iNSP150..4D;NSP151..4D..CVT..R201703

main52161-16010×2iNSP151..5D..N;NSP151..5D..5F..R201609-202111

(J)

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-0D090iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

52188BSPACER, REAR BUMPER MOUNTING

main52188-06040×2iNSP150..5D;NSP151..5D..CVT..(G,R)201608

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D160iNSP151..5D..N;NSP151..5D..5F..R201608-202111

main52575-0D330iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main52575-YL010iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D160iNSP15#201312-201608

main52576-0D320iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main52576-YL010iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D190iNSP15#201312-201608

main52591-0D350iNSP150..4D;NSP151..4D..CVT..R201703

main52591-0D360iNSP150..5D;NSP151..5D..CVT..(G,R)201608

main52591-YL010iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D190iNSP15#201312-201608

main52592-0D350iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main52592-0D360iNSP150..5D;NSP151..5D..CVT..(G,R)201608

main52592-YL010iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE

90119C0146

main90119-C0146

9015950311

main90159-50311

9015960602

main90159-60602

90159C0022

main90159-C0022

90159C0028

main90159-C0028

9018906065

main90189-06065

90189C0008

main90189-C0008

9046705170

main90467-05170

16 parts on this diagram · 4 diagrams in section
