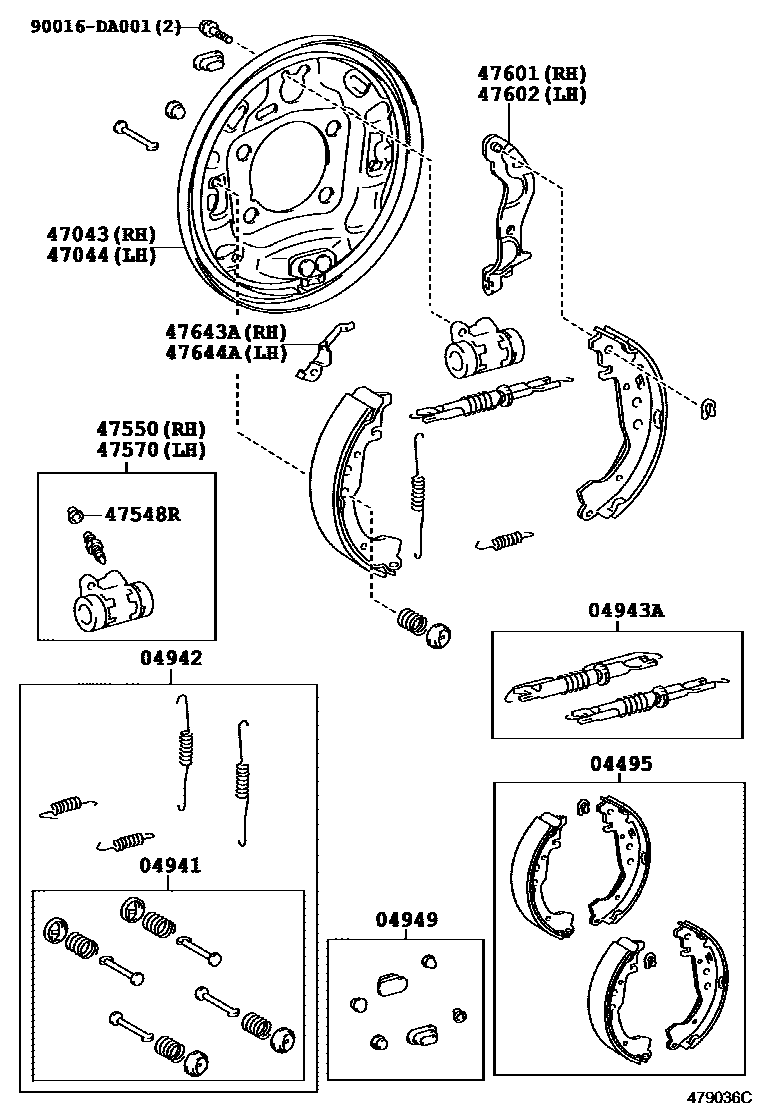

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D070iNSP15#201312-201608

MARK SABC LN521-FF

main04495-0D081iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

MARK SABC LN521-FF

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0D070iNSP15#201312-202111

04942SPRING KIT, REAR BRAKE

main04942-0D080iNSP15#201312-202111

04943ASTRUT KIT, REAR BRAKE

main04943-0D050iNSP15#201312-202111

04949PLUG KIT, REAR BRAKE

main04949-0D040iNSP15#201312-202111

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0D070iNSP15#201312-202111

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0D070iNSP15#201312-202111

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0D040iNSP150..5F201407-201911

(L)

main31478-30010iNSP150..CVT¥160201603-202111

main31478-30010iNSP150..4FC¥160201312-201911

(J)

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52040iNSP150..4FC201603-202111

main47550-52050iNSP150..5F201312-201911

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52040iNSP151..N;NSP151..5F..R;NSP151..4D..G201603-202111

main47570-52050iNSP151201312-201911

main47570-52050iNSP151;NSP150..5F201312-201608

TYPE A:REFER ILLUST.

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-0D070iNSP15#201312-202111

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-0D070iNSP15#201312-202111

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0D070iNSP15#201312-201608

main47643-52102iNSP151..N;NSP151..5F..R;NSP151..4D..G¥200201608-202111

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0D070iNSP15#201312-201608

main47644-52102iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)¥200201608-202111

90016DA001

main90016-DA001

15 parts on this diagram · 1 diagram in section
