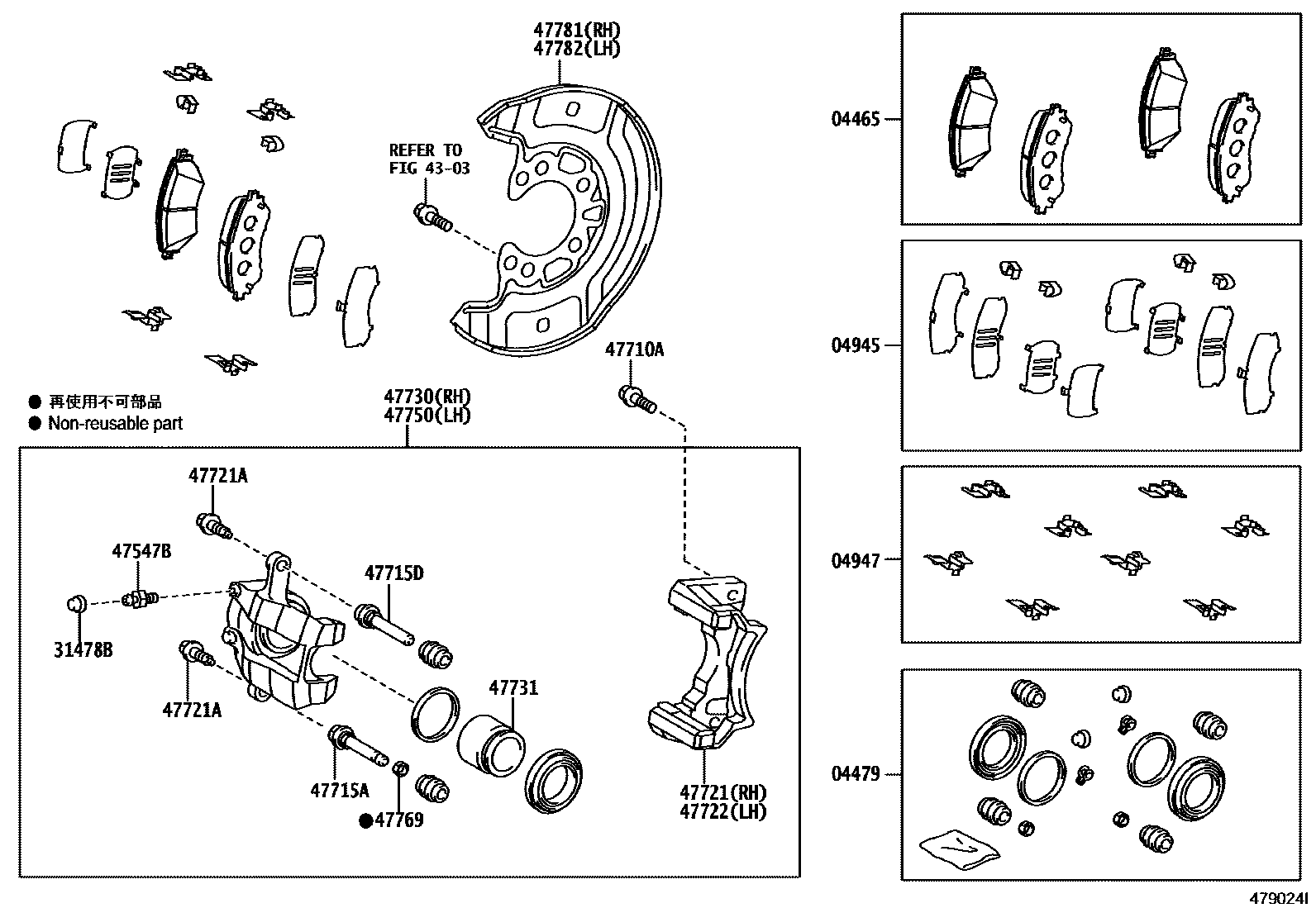

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-09020iNSP150..4FC201312-201911

MARK AK PA563H

main04465-0D190iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201603-202111

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D210iNSP150..4FC201312-201911

main04478-0D230iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201603-202111

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D110iNSP150..4FC201312-201911

main04945-0D120iNSP150..CVT201603-202111

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D060iNSP151201312-201911

main04947-0R020iNSP150..CVT201603-202111

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0021iNSP15#201312-202111

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-0D210iNSP151201811-201812

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

main47715-0D210iNSP151201811-201812

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main47715-0D210iNSP150..5F201312-202111

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-0D210iNSP150..5F201312-201911

main47714-0R020iNSP150..CVT201603-202111

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D120iNSP150..4FC201312-201811

main47721-0D210iNSP150..5F201811-201911

main47721-0D271iNSP151201807-201812

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main47721-0D271iNSP150..CVT201807-201812

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

main47721-0D280iNSP151..N;NSP151..5F..R;NSP151..4D..G201603-202111

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0D120iNSP151;NSP150..5F201312-201811

main47722-0D150iNSP151201811-201911

main47722-0D261iNSP151201807-201812

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main47722-0D261iNSP150..CVT201807-201812

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

main47722-0D270iNSP150..CVT201603-202111

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D120iNSP151;NSP150..5F201312-201811

main47730-0D210iNSP151201811-201911

main47730-0D271iNSP150..CVT201807-201812

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main47730-0D271iNSP150..CVT201807-201812

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

main47730-0D280iNSP151..N;NSP151..5F..R;NSP151..4D..G201603-202111

47731PISTON, FRONT DISC BRAKE

main47731-0D210iNSP150..5F201312-201911

main47731-0D270iNSP150..CVT201603-202111

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D120iNSP150..4FC201312-201811

main47750-0D150iNSP150..5F201811-201911

main47750-0D261iNSP151201807-201812

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

main47750-0D261iNSP150..CVT201807-201812

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main47750-0D270iNSP150..CVT201603-202111

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iNSP150..4FC201312-201911

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D130iNSP15#201312-202111

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D130iNSP15#201312-202111

19 parts on this diagram · 2 diagrams in section
