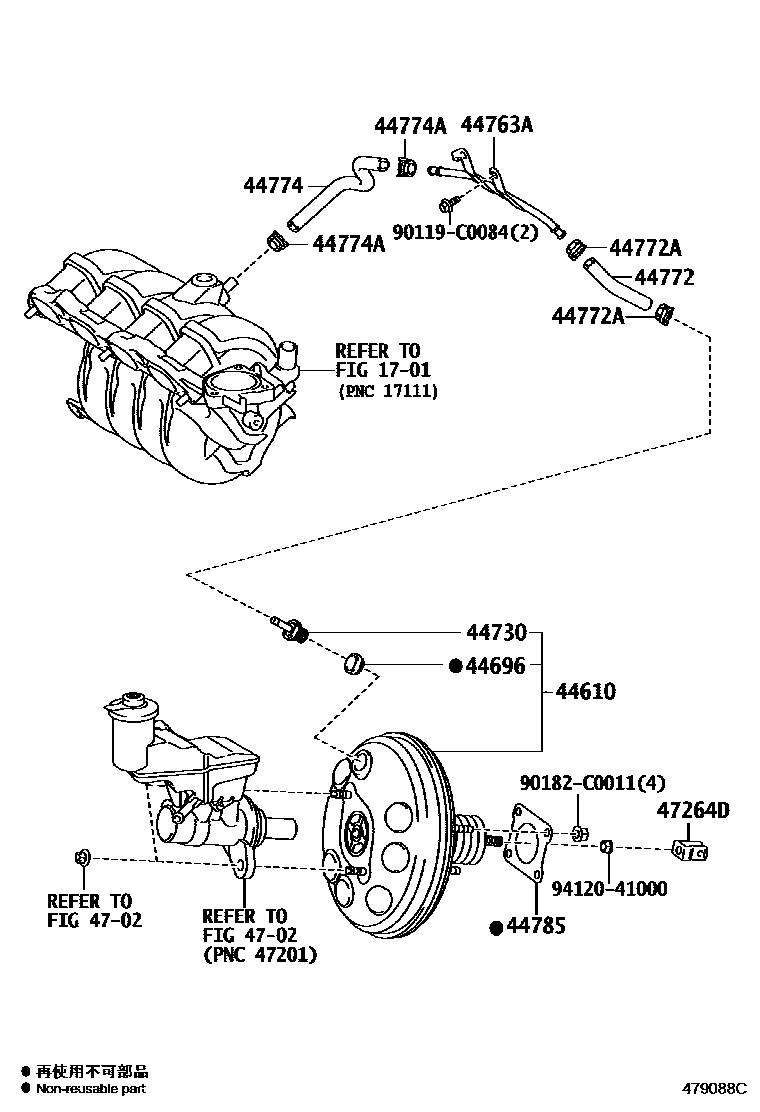

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0D370iNSP150..4FC201312-201608

sub44610-0DF20

main44610-0D660iNSP150..4FC201603-201608

sub44610-0DF30

main44610-0DA20iNSP150..5F201608-201911

main44610-0DA30iNSP151..CVT201608-201812

main44610-0DB00iNSP150..CVT201608-202111

main44610-0DC90iNSP151..5F201812-202111

44696GROMMET, CHECK VALVE

main90016-AT003iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202203

main90080-48071iNSP151..5F201608-202203

(L)

main90080-48071iNSP15#201312-201911

main90480-24439iNSP151..4D..G;NSP151..CVT..N202012-202203

(J)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iNSP15#201312-201608

44763ATUBE, HOSE TO HOSE, NO.1

main44763-0D180iNSP151..5F201312-201911

main44763-0D280iNSP151..CVT201608-201911

main44763-0D380iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201812-202111

main44763-0D390iNSP151..5F201812-202111

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0D200iNSP151..5F201312-201911

main44772-0D390iNSP150..CVT201608-201911

NO.2

main44772-0D400iNSP151..CVT201608-201911

NO.1

main44772-0D600iNSP151..5F201812-202111

NO.2

main44772-0D610iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201812-202111

NO.1

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNSP15#..5F201312-202111

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0D100iNSP15#201312-201911

main44774-0D180iNSP151..CVT201608-201911

main44774-0D280iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201812-202111

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iNSP15#201312-202111

44785GASKET, BRAKE BOOSTER

main44785-06020iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0D050iNSP15#201312-202111

90119C0084

main90119-C0084

90182C0011

main90182-C0011

9412041000

main94120-41000

15 parts on this diagram · 3 diagrams in section
