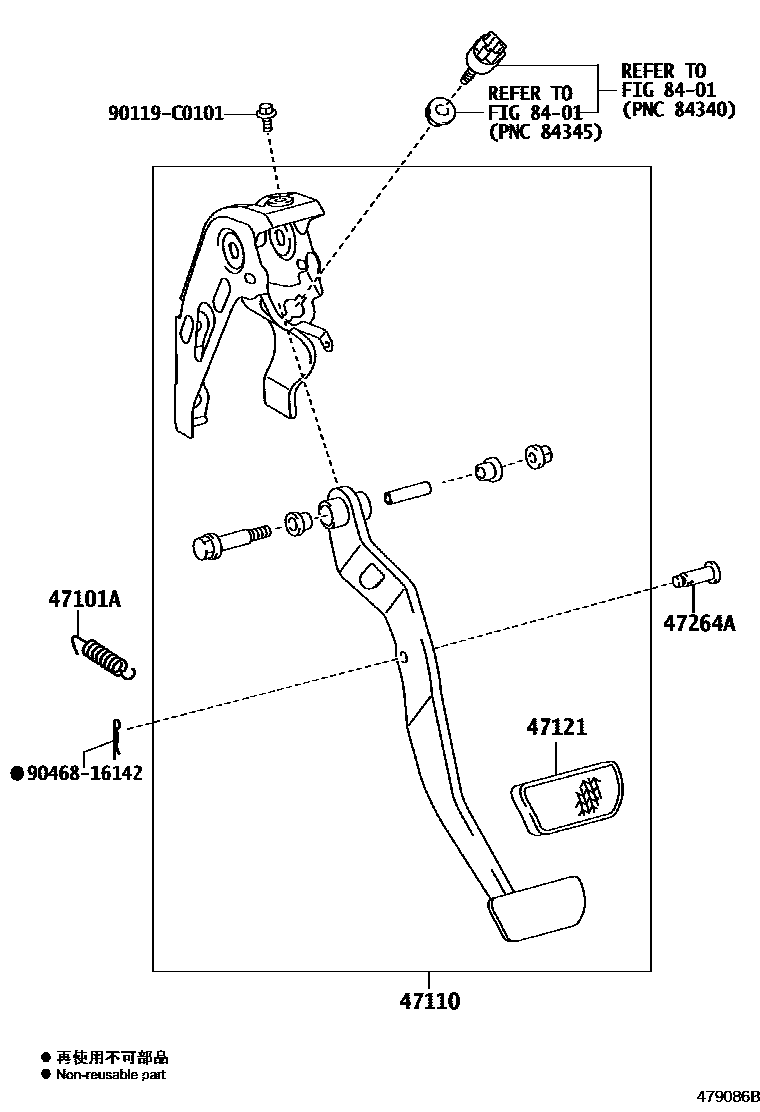

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNSP15#201312-201506

main90506-14088iNSP15#201507-201608

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0D340iNSP15#..5F201608-202111

main47110-0D350iNSP15#..4FC201312-201608

47121PAD, BRAKE PEDAL

main31321-52010iNSP15#..5F201312-201608

main47121-52010iNSP15#..4FC201312-201608

47264APIN(FOR PUSH ROD)

main90249-08051iNSP15#201312-201608

main90249-C0004iNSP151..N;NSP151..5F..R;NSP151..4D..G201706-202111

LOCAL SOURCED PARTS

8401

90119C0101

main90119-C0101

9046816142

main90468-16142

7 parts on this diagram · 1 diagram in section
