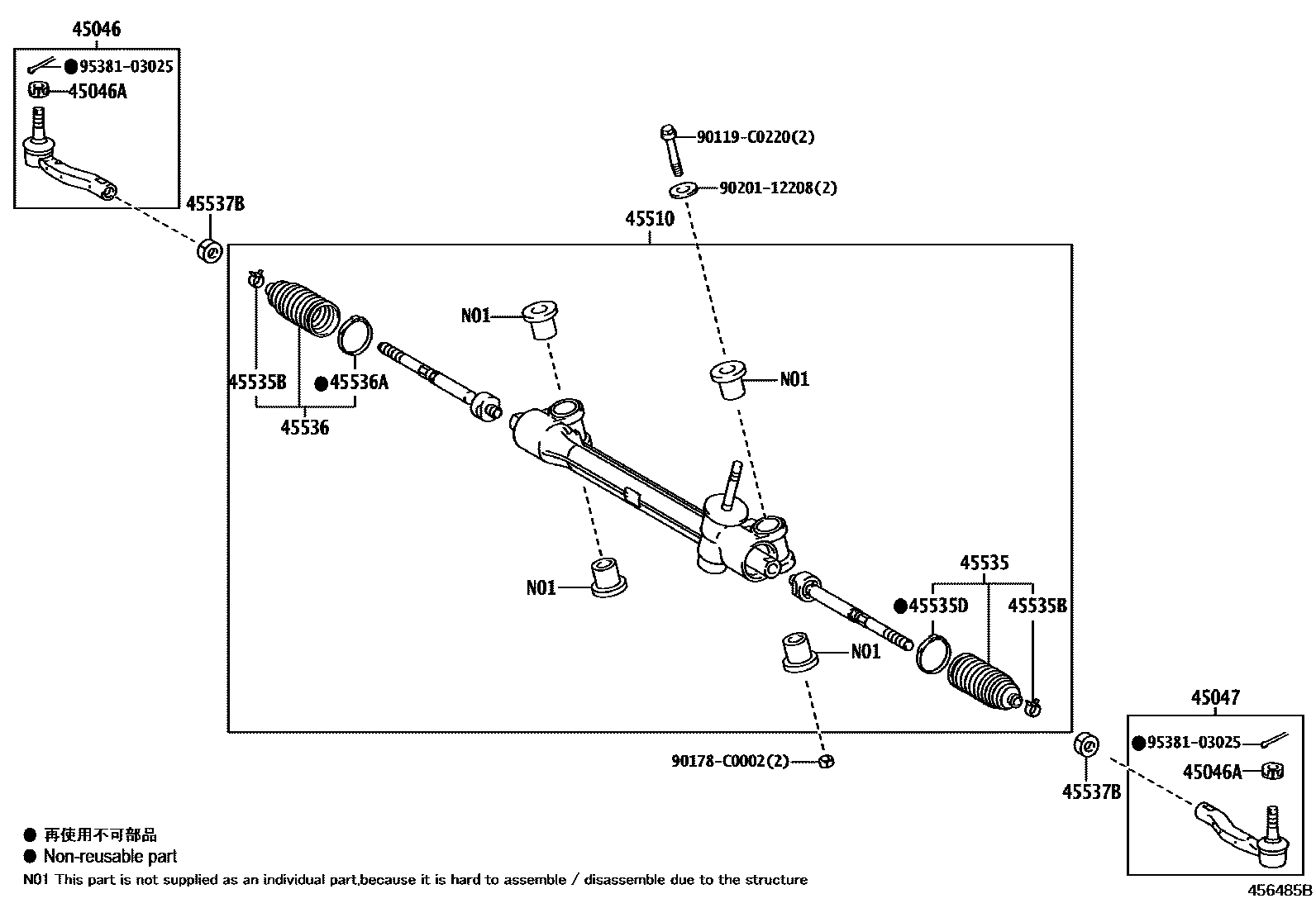

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09750iNSP15#201312-202111

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-C0001iNSP15#201312-202111

45047END SUB-ASSY, TIE ROD, LH

main45047-09380iNSP15#201312-202111

45510GEAR ASSY, STEERING

main45510-0D530iNSP15#201312-201608

main45510-0D590iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

45535BOOT, STEERING RACK, NO.1

main45535-09350iNSP15#201312-202111

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030iNSP15#201312-202111

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D070iNSP15#201312-202111

45536BOOT, STEERING RACK, NO.2

main45535-09350iNSP15#201312-202111

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D070iNSP15#201312-202111

45537BNUT, RACK END LOCK

main90170-14012iNSP15#201312-202111

90119C0220

main90119-C0220

90178C0002

main90178-C0002

9020112208

main90201-12208

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
