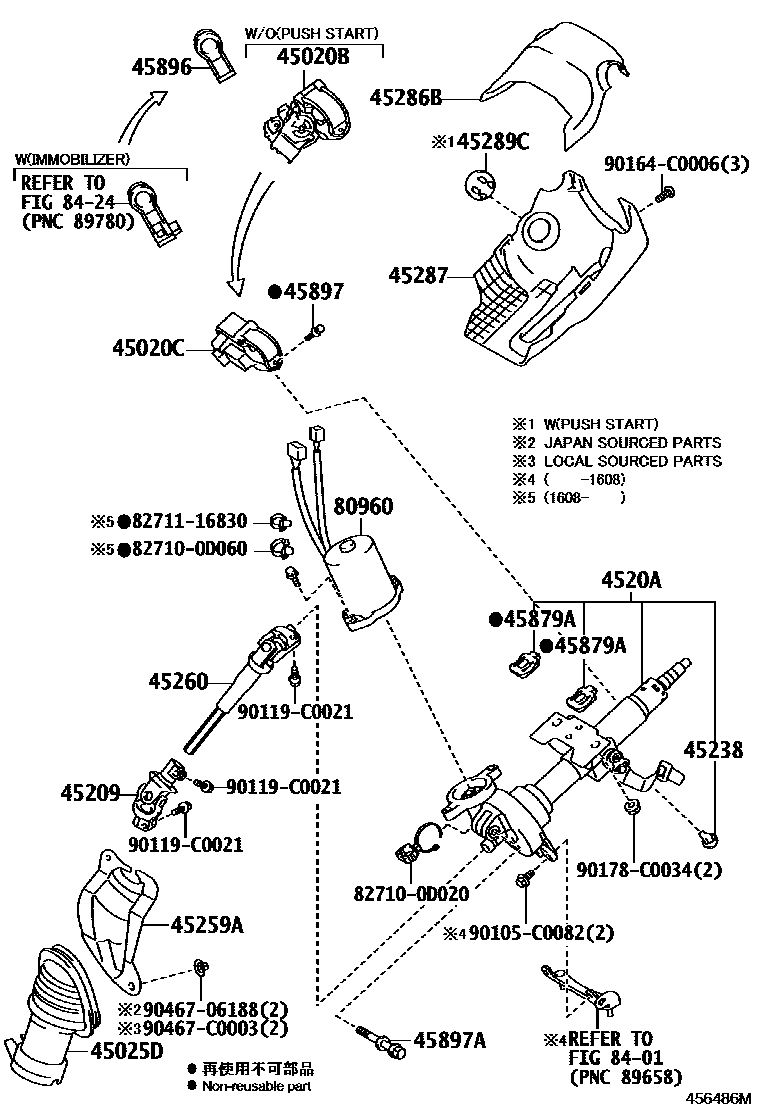

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0D110iNSP151..CVT..N201312-202111

main45280-0D120iNSP15#..5F201312-202111

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D160iNSP151..4D..G201312-202111

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D180iNSP15#201312-201710

sub45025-0D181

main45025-0D181iNSP151..N;NSP151..5F..R;NSP151..4D..G201711-202111

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D070iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D030iNSP151..N;NSP151..5F..R201608-202111

main4520A-0D040iNSP151..4D..G201608-202111

main4520A-0D140iNSP15#..N,R201312-201608

main4520A-0D150iNSP151..G201312-201608

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP15#201312-202111

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D180iNSP15#201312-202111

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D190iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

45286BCOVER, STEERING COLUMN, UPR

main45286-0D200-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM0#,2#

main45286-0D200-E0iNSP15#201312-201608

DK. BROWN,TRIM0#,2#

45287COVER, STEERING COLUMN, LWR

main45024-0D050-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM0#,2#

main45287-0D160-E0iNSP15#201312-201608

DK. BROWN,TRIM0#,2#

45289CCOVER, STEERING COLUMN, LWR NO.2

main45289-0D090-C0iNSP151..4D..G201608-202111

BLACK,TRIM0#,2#

main45289-0D090-E0iNSP151..G201312-201608

DK. BROWN,TRIM0#,2#

45879ACAPSULE, BREAK AWAY

main45879-0D020iNSP15#201312-202111

45896PLATE, IGNITION SWITCH ATTACHMENT

main81871-0D010iNSP150;NSP151..CVT..R201312-202111

45897BOLT, STEERING LOCK SET

main45897-12020iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNSP15#201312-201407

main90119-10981iNSP151..N;NSP151..5F..R;NSP151..4D..G201801-202111

(J)

main90119-10981iNSP15#201407-201801

main90119-C0427iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201801-202111

(L)

80960MOTOR ASSY, POWER STEERING

main80960-0D090iNSP15#201312-201608

main80960-0D220iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

8401

8424

827100D020HARNESS ASSY, OIL HEATER

main82710-0D020

827100D060HARNESS ASSY, OIL HEATER

main82710-0D060

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

90105C0082

main90105-C0082

90119C0021

main90119-C0021

90164C0006

main90164-C0006

90178C0034

main90178-C0034

9046706188

main90467-06188

90467C0003

main90467-C0003

27 parts on this diagram · 1 diagram in section
