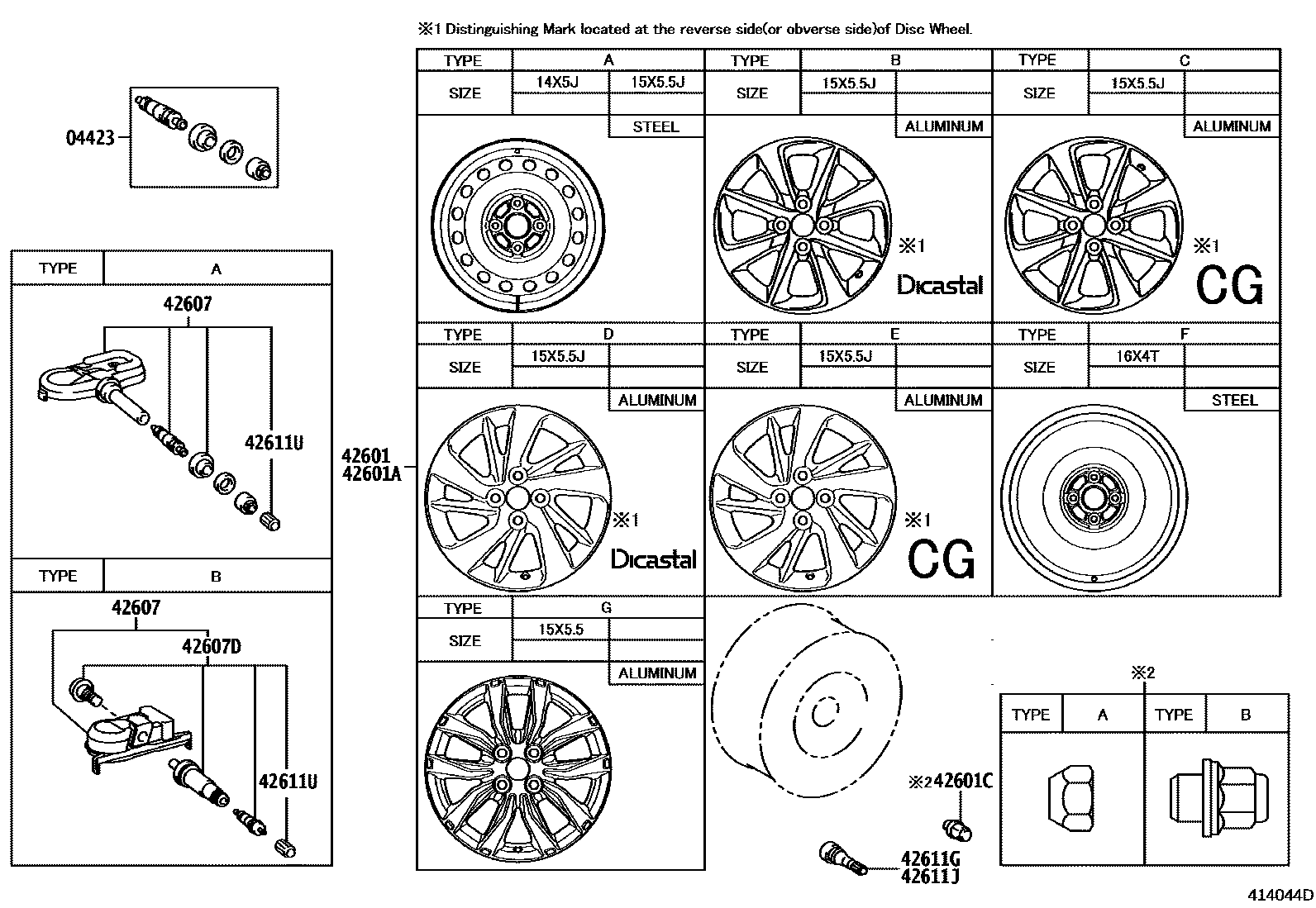

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
14X5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH,TYPE A:REFER ILLUST.
sub42611-0D821
15X5.5J, #,SD/HB SPECIAL PACKAGE,TYPE A:REFER ILLUST.
sub42611-0D821
15X5.5J, #,BASE UP CROSS PACKAGE,TYPE A:REFER ILLUST.
sub42611-0D821
15X5.5J, #,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH,TYPE A:REFERILLUST.
sub42611-0D821
15X5.5J, #,BASE UP HB, SD PACKAGE,TYPE A:REFER ILLUST.
sub42611-0D821
15X5.5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,BASE UP CROSS PACKAGE,TYPE A:REFER ILLUST.
15X5.5J, #,SD/HB SPECIAL PACKAGE,TYPE A:REFER ILLUST.
15X5.5J, #,MOON ROOF-WITH(TILT & SLIDE),TYPE B:REFER ILLUST.
15X5.5J, #,TYPE B:REFER ILLUST.
15X5.5J, #,TYPE C:REFER ILLUST.
15X5.5J, #,MOON ROOF-WITH(TILT & SLIDE),TYPE C:REFER ILLUST.
15X5.5J, #,HIGH CROSS PACKAGE,TYPE D:REFER ILLUST.
sub42611-0DA21
15X5.5J, #,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH,TYPE D:REFER ILLUST.
sub42611-0DA21
15X5.5J, #,MID HB, SD PACKAGE,TYPE D:REFER ILLUST.
sub42611-0DA21
15X5.5J, #,HIGH HB, SD PACKAGE,TYPE D:REFER ILLUST.
sub42611-0DA21
15X5.5J, #,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH,TYPE D:REFER ILLUST.
sub42611-0DA21
15X5.5J, #,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH,TYPE D:REFER ILLUST.
sub42611-0DA21
15X5.5J, #,TYPE D:REFER ILLUST.
15X5.5J, #,HIGH CROSS PACKAGE,TYPE D:REFER ILLUST.
15X5.5J, #,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE F:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
(J),TYPE A:REF ILL.
(J),TYPE A:REF ILL.
MOON ROOF-WITH(TILT & SLIDE),TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
(L),TYPE A:REF ILL.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42607DVALVE, TIRE PRESSURE MONITOR
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
BASE UP HB, SD PACKAGE
MID HB, SD PACKAGE
HIGH HB, SD PACKAGE
SD/HB SPECIAL PACKAGE
HIGH CROSS PACKAGE
BASE UP CROSS PACKAGE
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
9 parts on this diagram · 3 diagrams in section
