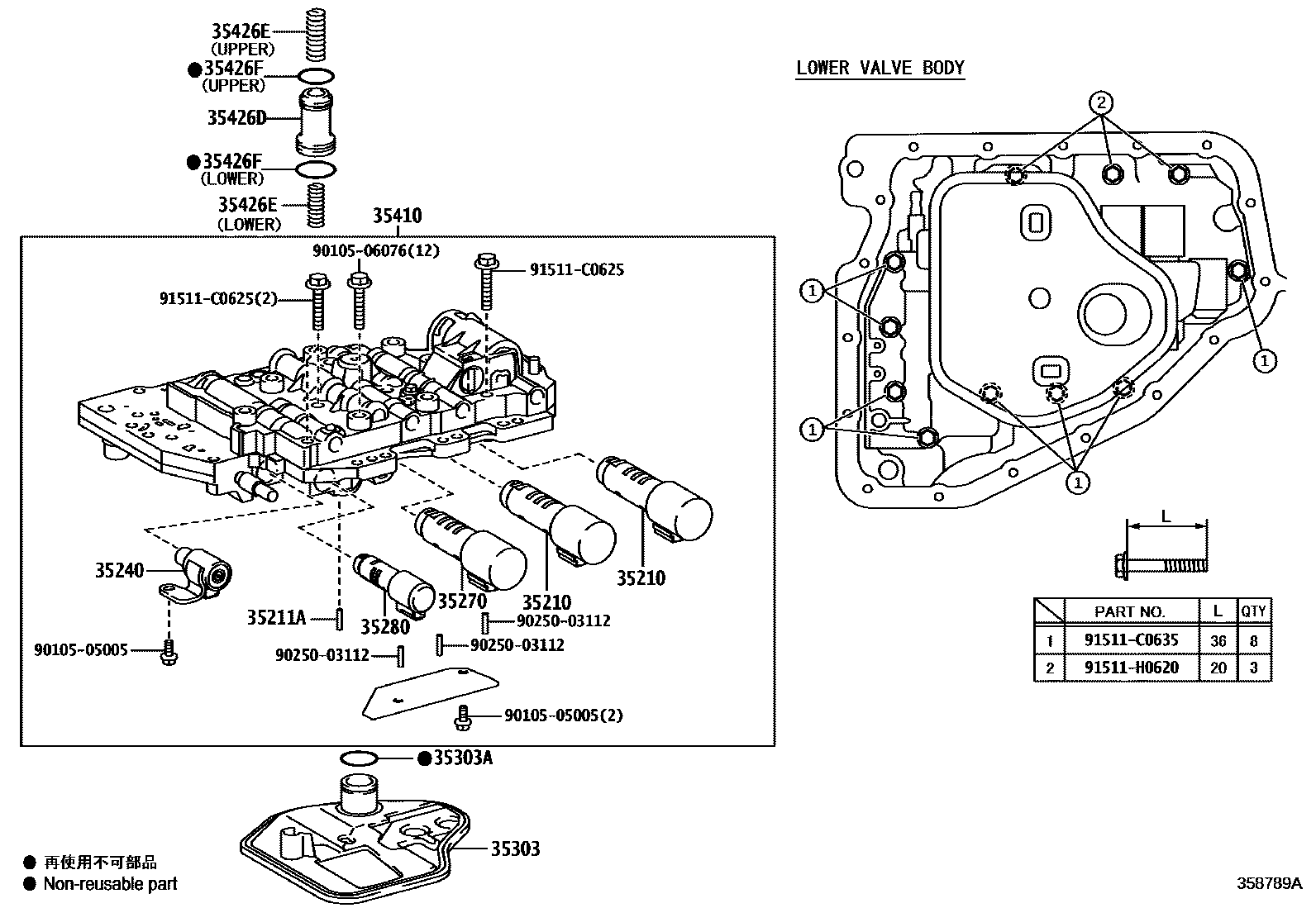

VALVE BODY & OIL STRAINER (ATM)

0001 1U442E 0002 1U442E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-0D010iNSP15#..4FC201312-201404

sub35210-0D011

main35210-0D011iNSP15#..4FC201405-201608

sub35210-52040

35211APIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

main90250-03112iNSP15#..4FC201312-201608

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-0D010iNSP15#..4FC201312-201404

sub35240-0D011

main35240-0D011iNSP15#..4FC201405-201608

sub35240-52080

35270SOLENOID ASSY, SHIFT CONTROL

main35270-0D010iNSP15#..4FC201312-201404

sub35270-0D011

main35270-0D011iNSP15#..4FC201405-201608

sub35270-52030

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-50030iNSP15#..4FC201312-201608

35303STRAINER SUB-ASSY, OIL

main35303-52020iNSP15#..4FC201312-201608

sub35303-52030

35303ARING, O (FOR OIL STRAINER)

main90301-C0047iNSP15#..4FC201312-201608

sub90301-22014

35410BODY ASSY, TRANSMISSION VALVE

main35410-0D010iNSP15#..4FC201312-201404

sub35410-0D011

main35410-0D011iNSP15#..4FC201405-201608

sub35410-52310

35426DPISTON, C-3 ACCUMULATOR

main35426-52010iNSP15#..4FC201312-201608

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-14210iNSP15#..4FC201312-201608

LOWER

main90501-21050iNSP15#..4FC201312-201608

UPPER

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-21011iNSP15#..4FC201312-201608

UPPER

main90301-24013iNSP15#..4FC201312-201608

LOWER

9010505005

main90105-05005

9010506076

main90105-06076

9025003112

main90250-03112

91511C0625

main91511-C0625

91511C0635

main91511-C0635

91511H0620

main91511-H0620

17 parts on this diagram · 2 diagrams in section
