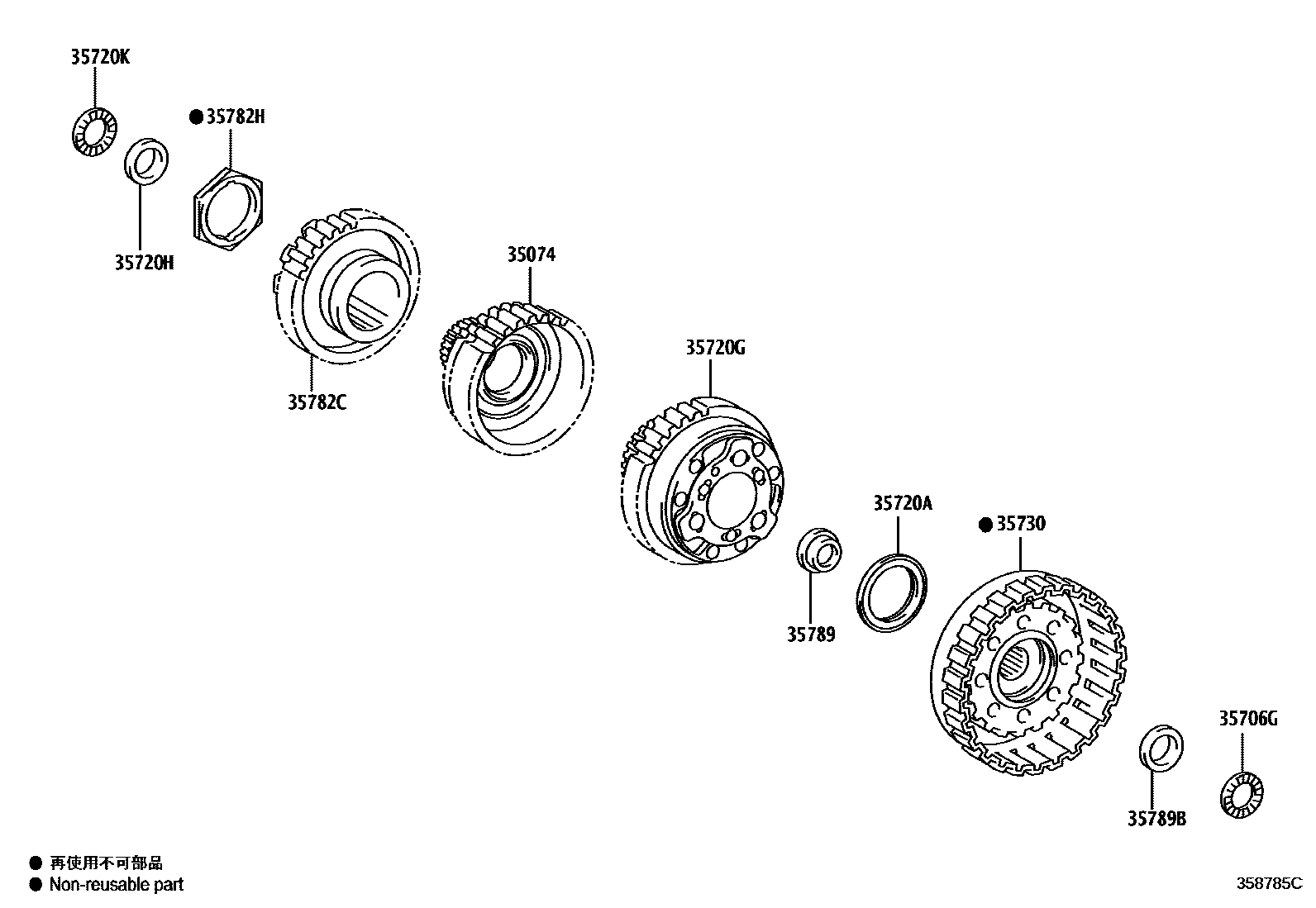

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-0D020iNSP151..4FC201312-201608

sub35074-52020

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-C0014iNSP15#..4FC201312

sub90374-33004

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-C0015iNSP15#..4FC201312

sub90374-42006

35720GGEAR ASSY, PLANETARY

main35720-0D010iNSP150..4FC201312

sub35720-52070

main35720-0D020iNSP151..4FC201312

sub35720-52090

35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)

main35789-0D010iNSP15#..4FC201312

sub35789-52010

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-C0009iNSP15#..4FC201312

sub90374-17001

35730GEAR ASSY, REAR PLANETARY SUN

main35730-0D010iNSP15#..4FC201312-201405

sub35730-52030

main35730-0D011iNSP15#..4FC201405

sub35730-52030

35782CGEAR, COUNTER DRIVE

main35782-0D010iNSP15#..4FC201312-201404

sub35782-0D011

main35782-0D011iNSP15#..4FC201405

sub35782-52020

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-44001iNSP15#..4FC201312

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-0D020iNSP15#..4FC201312

sub35789-52020

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-0D030iNSP15#..4FC201312-201511

sub35789-0D060

main35789-0D060iNSP15#..4FC201512

sub35789-52100

11 parts on this diagram · 1 diagram in section
