BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

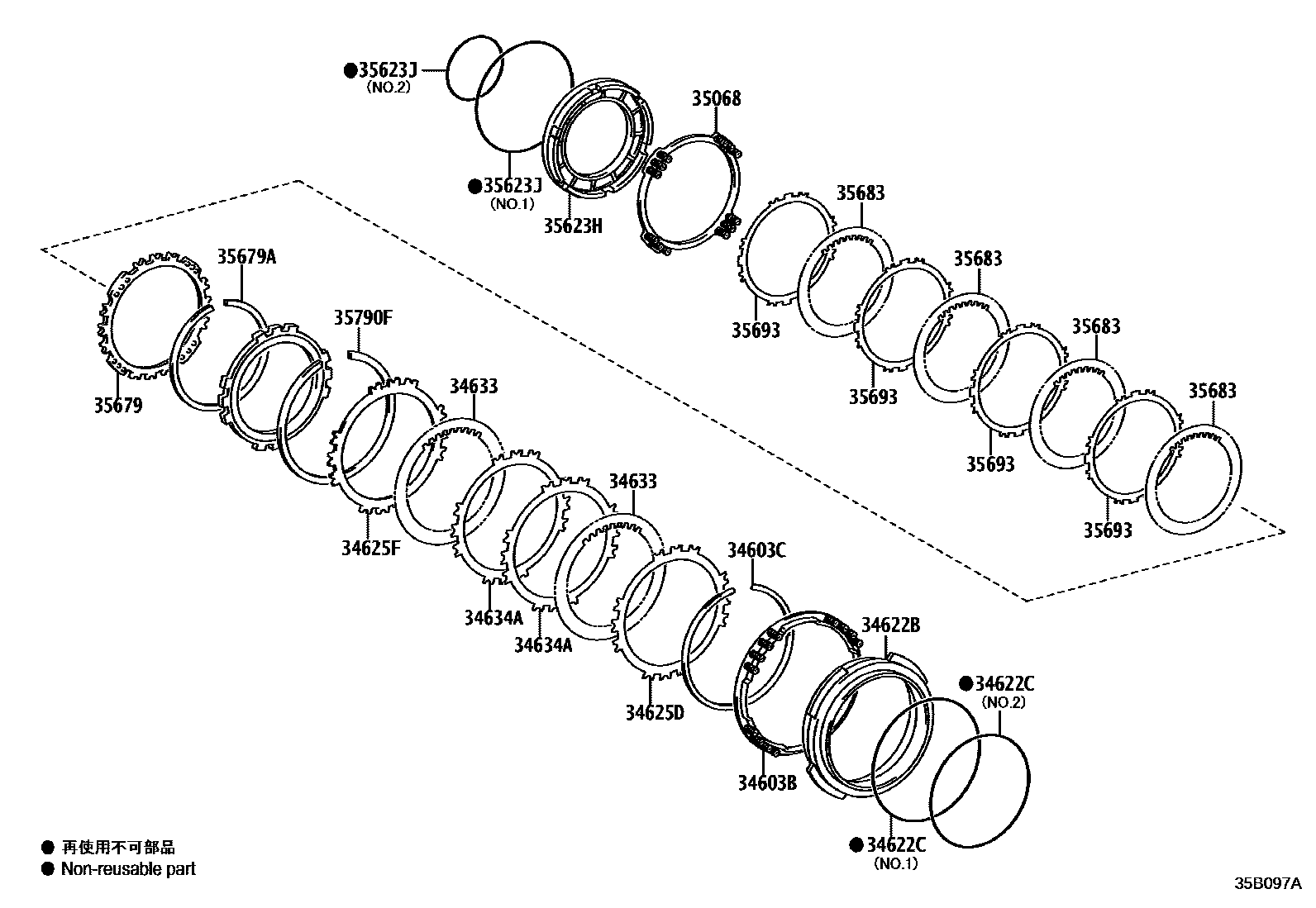

Parts diagram
34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
main34603-0D010i201405
sub34603-52030
main34603-52030i201312-201405
34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)
main90520-C0010i201312
sub90520-99197
34622BPISTON, 2ND COAST & OVERDRIVE BRAKE
main34622-0D010i201312
sub34622-52030
34622CRING, O(FOR 2ND COAST & OVERDRIVE)
main90301-C0051i201312
NO.1:REFER ILLUST.
sub90301-99253
main90301-C0054i201312
NO.2:REFER ILLUST.
sub90301-99214
34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE
main34625-52010i201312
T=1.8, MARK 1
main34625-52020i201312
T=2.0, MARK 2
main34625-52030i201312
T=2.2, MARK 3
main34625-52040i201312
T=2.4, MARK 4
main34625-52050i201312
T=2.6, MARK 5
34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2
main34625-52100i201312
34633DISC, 2ND COAST & OVERDRIVE BRAKE
main34633-0D010i201312
sub34633-52050
34634APLATE, 2ND COAST & OVERDRIVE BRAKE
main34634-0D010i201312
sub34634-52010
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
main35068-0D010i201405
sub35068-52070
main35068-52070i201312-201405
35623HPISTON, 1ST & REVERSE BRAKE
main35623-0D010i201312
sub35623-52020
35623JRING, O (FOR 1ST & REVERSE BRAKE)
main90301-C0042i201312
NO.1:REFER ILLUST.
sub90301-99195
main90301-C0046i201312
NO.2:REFER ILLUST.
sub90301-97002
35679FLANGE, BRAKE(FOR 1ST & REVERSE)
main35679-52010i201312
T=3.4
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
main90520-C0005i201312
sub90520-99042
35683DISC, BRAKE(FOR 1ST & REVERSE)
main35683-0D010i201312
sub35683-52080
35693PLATE, BRAKE (FOR 1ST & REVERSE)
main35693-0D010i201312
sub35693-52020
35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)
main90520-C0005i201312
sub90520-99042

16 parts on this diagram · 1 diagram in section
