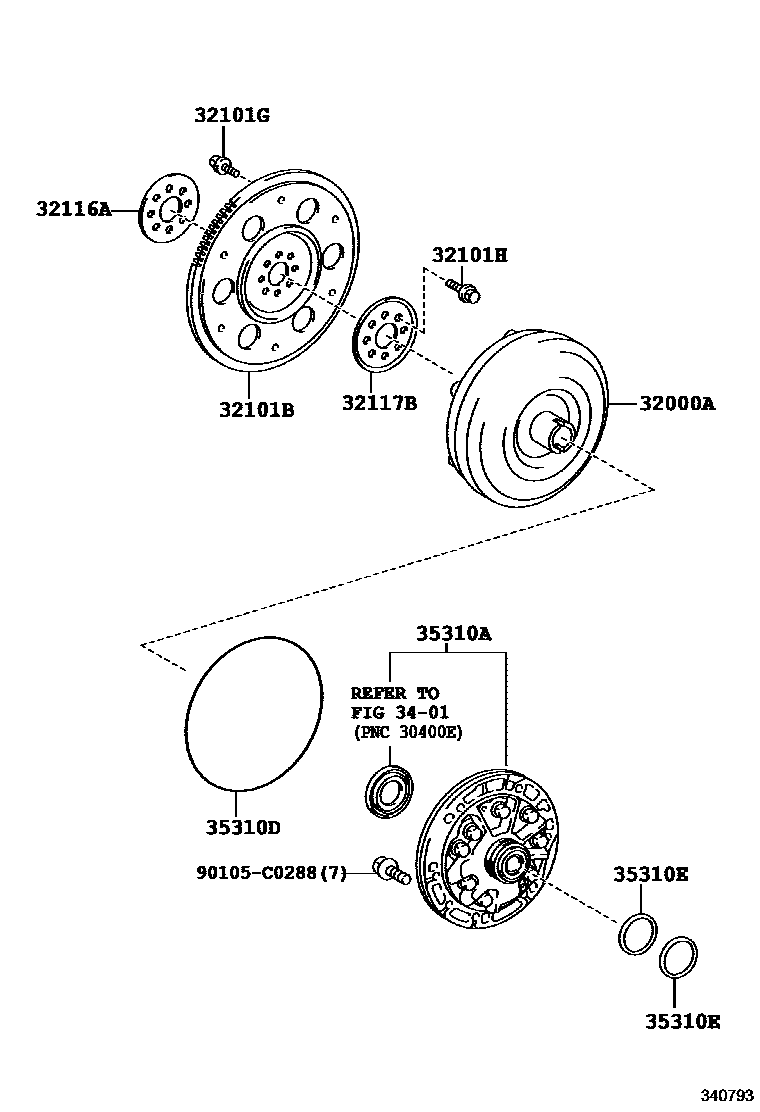

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-0D020iNSP151..CVT201608-201911

sub32000-0D021

main32000-0D021iNSP151..CVT201912-202011

main32000-0D030iNSP150..CVT201608-201905

sub32000-0D031

main32000-0D031iNSP150..CVT201906-201911

main32000-0D040iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202011-202111

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D040iNSP15#..CVT201608

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP151..4D..G;NSP151..CVT..N201608-202111

*8-1.25PX12-8.4,BLACK

main90119-08498iNSP151..4D..G;NSP151..CVT..N201608-202111

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNSP151..4D..G;NSP151..CVT..N201608-202111

32116ASPACER, DRIVE PLATE, FRONT

main32116-02020iNSP15#..CVT201608

32117BSPACER, DRIVE PLATE, REAR

main32117-02020iNSP15#..CVT201608

3401

35310APUMP ASSY, FRONT OIL

main35310-02020iNSP151..4D..G;NSP151..CVT..N201608-202111

sub35310-12170

35310DRING, O (FOR FRONT OIL PUMP)

main90301-C0067iNSP151..4D..G;NSP151..CVT..N201608-202111

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-02020iNSP15#..CVT201608-201806

sub35617-02030

main35617-02030iNSP151..4D..G;NSP151..CVT..N201806-202111

90105C0288

main90105-C0288

11 parts on this diagram · 1 diagram in section
