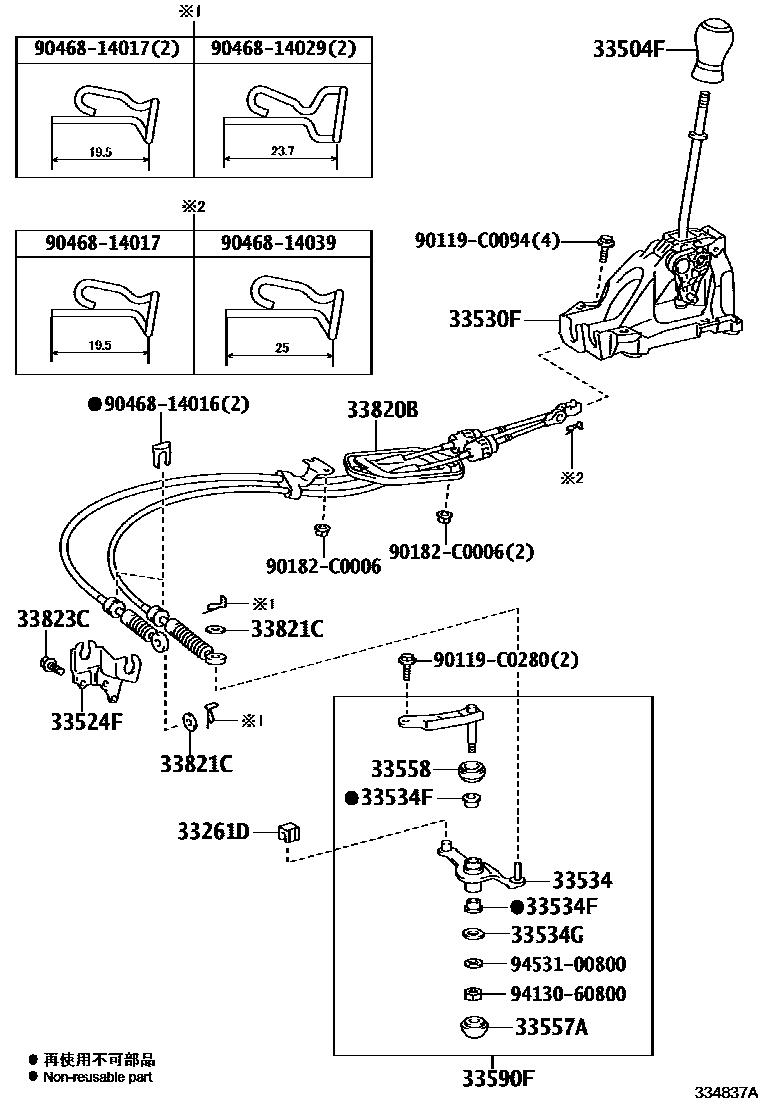

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-0D040iNSP15#..5F201312-201511

sub33557-0D041

main33557-0D041iNSP15#..5F201512-202111

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D310-C0iNSP15#..5F201608-202111

BLACK,TRIM0#,2#

main33504-0D310-E0iNSP15#..5F201312-201608

DK. BROWN,TRIM0#,2#

main33504-0D320-C0iNSP150..CVT;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

BLACK,TRIM0#,2#

main33504-0D320-E0iNSP15#..4FC201312-201608

DK. BROWN,TRIM0#,2#

main33504-0D710-C0iNSP151..4D..G201703-202111

BLACK,TRIM0#,2#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-0D140iNSP15#..5F201312-202111

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0D160iNSP15#..5F201312-202111

33534BELLCRANK, SELECTING

main33534-0D020iNSP15#..5F201312-201511

sub33534-0D021

main33534-0D021iNSP15#..5F201512-202111

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-C0002iNSP15#..5F201312-202111

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iNSP15#..5F¥100201312-202111

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-0D030iNSP15#..5F201312-201511

sub33557-0D031

main33557-0D031iNSP15#..5F201512-202111

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-0D010iNSP15#..5F201312-201511

sub33558-0D011

main33558-0D011iNSP15#..5F201512-202111

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-0D020iNSP15#..5F201312-201511

sub33590-0D021

main33590-0D021iNSP15#..5F201512-202111

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0D450iNSP15#..5F201312-201608

main33820-0D460iNSP15#..4FC201312-201608

main33820-0D700iNSP151..4D..G;NSP151..CVT..N201608-202111

main33820-0D780iNSP15#..5F201608-202111

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267iNSP15#..5F¥100201312-202111

OD=28

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0D080iNSP15#..4FC201312-201608

main33823-0D220iNSP151..CVT201608-201911

TYPE A:REFER ILLUST.

main33823-0D250iNSP151..4D..G;NSP151..CVT..N201812-202111

TYPE B:REFER ILLUST.

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-C0212iNSP15#..4FC201312-202111

main90119-C0278iNSP15#..5F201312-202111

90119C0094

main90119-C0094

90119C0280

main90119-C0280

90182C0006

main90182-C0006

9046814016

main90468-14016¥160

9046814017

main90468-14017¥90

9046814029

main90468-14029¥90

9046814039

main90468-14039¥60

9413060800

main94130-60800¥60

9453100800

main94531-00800¥160

23 parts on this diagram · 4 diagrams in section
