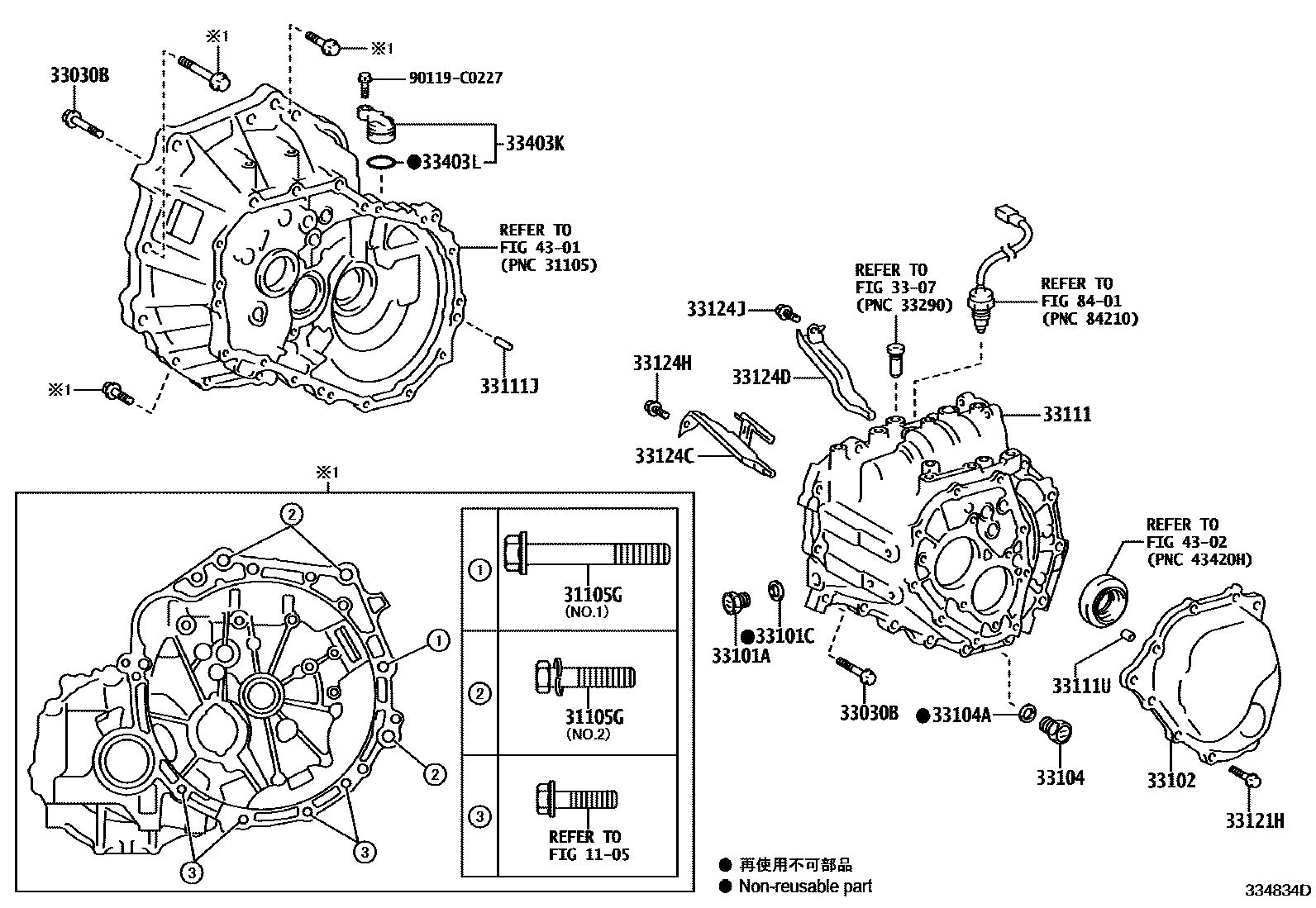

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
1105
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX80-30,(L),NO.1:REFER ILL.
*12-1.25PX45-30,(L),NO.2:REFER ILL.
*12-1.25PX80-30,NO.1:REFER ILLUST.
*12-1.25PX80-30,(J),NO.1:REFER ILL.
*12-1.25PX45-30,(J),NO.2:REFER ILL.
*12-1.25PX45-30,NO.2:REFER ILLUST.
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
*8-1.25PX51-28
3307
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33104AGASKET, DRAIN PLUG(MTM)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
L=23,OD=8
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33124JBOLT, W/WASHER
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
4301
4302
8401
90119C0227
main90119-C0227
23 parts on this diagram · 1 diagram in section
