CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0D030iNSP150..5F201608-201911

main04313-0D040iNSP151..5F201608-202111

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0D020iNSP150..5F201312-201608

main31470-0D021iNSP150..5F201704-201911

main31470-0D050iNSP151..5F201608-201703

main31470-0D051iNSP151..5F201704-202111

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iNSP15#..5F201312-201608

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iNSP15#..5F201312-201608

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-02010iNSP15#..5F201312-201608

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNSP15#..5F201312-201608

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-0N010iNSP15#..5F201312-201608

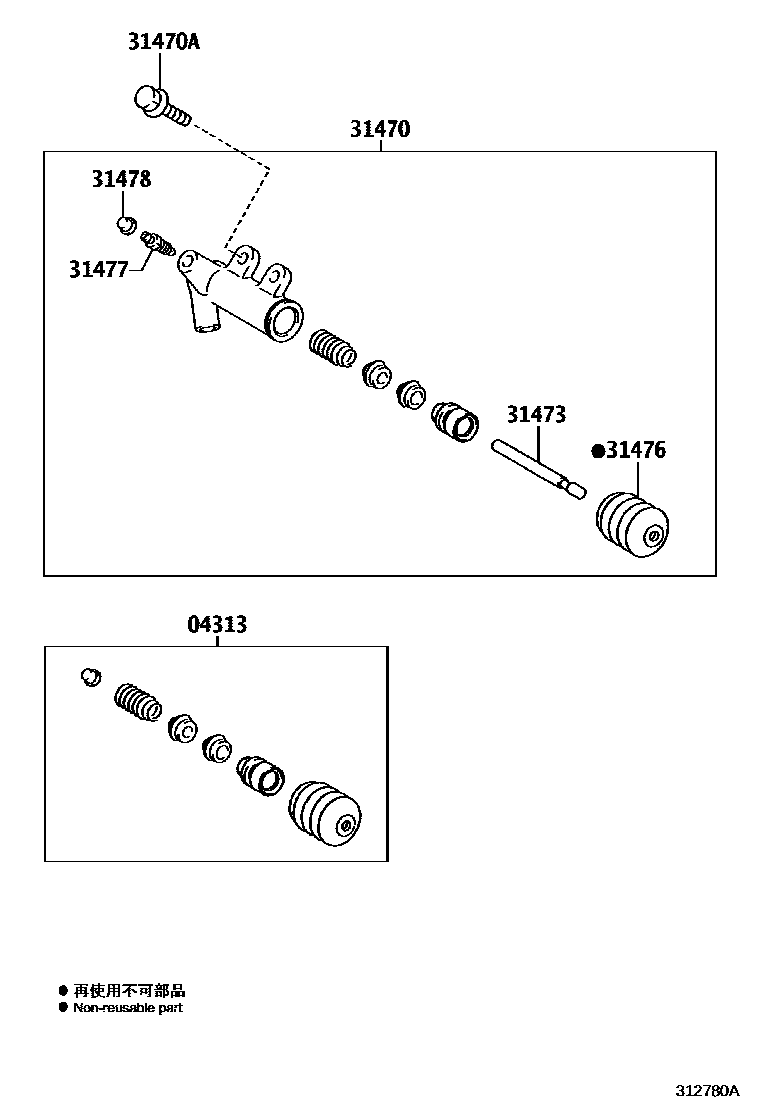

7 parts on this diagram · 1 diagram in section
