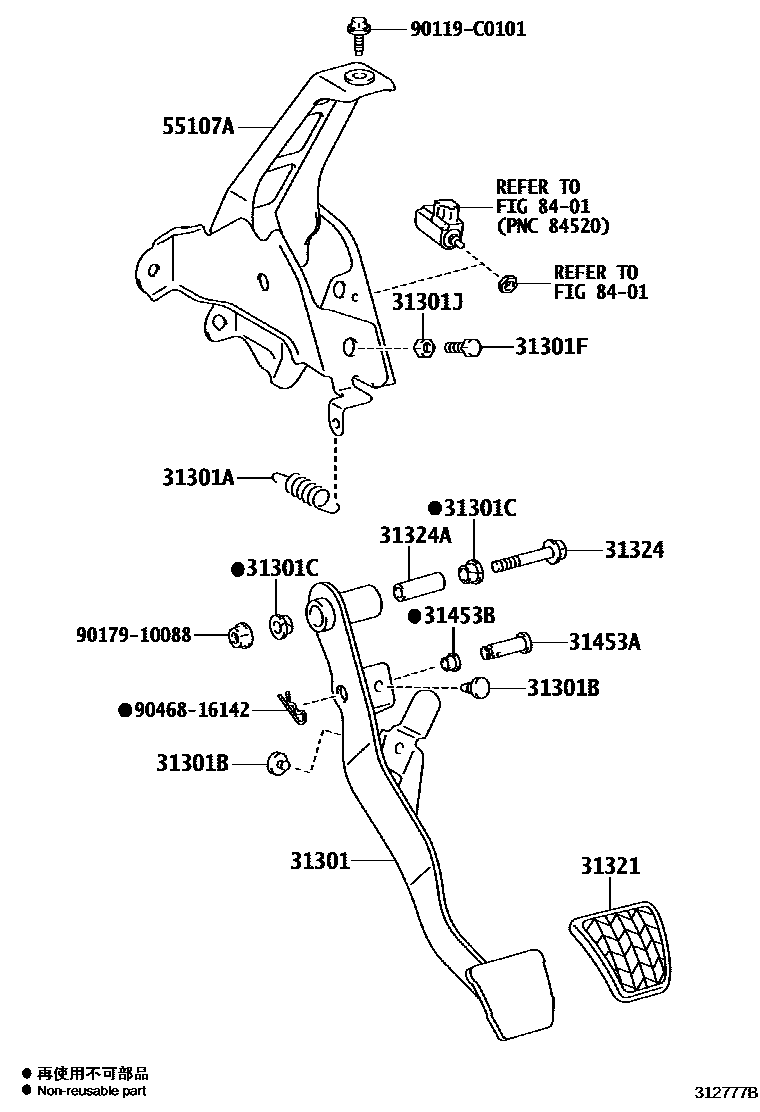

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D210iNSP15#..5F201312-201608

main31301-0D250iNSP15#..5F201608-202111

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14018iNSP15#..5F201312-201608

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iNSP15#..5F201608-202111

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iNSP15#..5F201312-201608

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNSP15#..5F201312-201608

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iNSP15#..5F201312-201608

31321PAD, CLUTCH PEDAL

main31321-0D080iNSP151..5F202003-202111

(L)

main31321-52010iNSP15#..5F201312-201608

31324SHAFT, CLUTCH PEDAL

main90101-10081iNSP15#..5F201312-201608

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iNSP15#..5F201312-201608

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNSP15#..5F201608-201706

L=31.5

main90249-C0004iNSP15#..5F201706-202111

L=31.5,(L)

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNSP15#..5F201312-201608

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D260iNSP15#..5F201312-201608

main55107-0D390iNSP15#..5F201608-202111

8401

90119C0101

main90119-C0101

9017910088

main90179-10088

9046816142

main90468-16142

16 parts on this diagram · 2 diagrams in section
