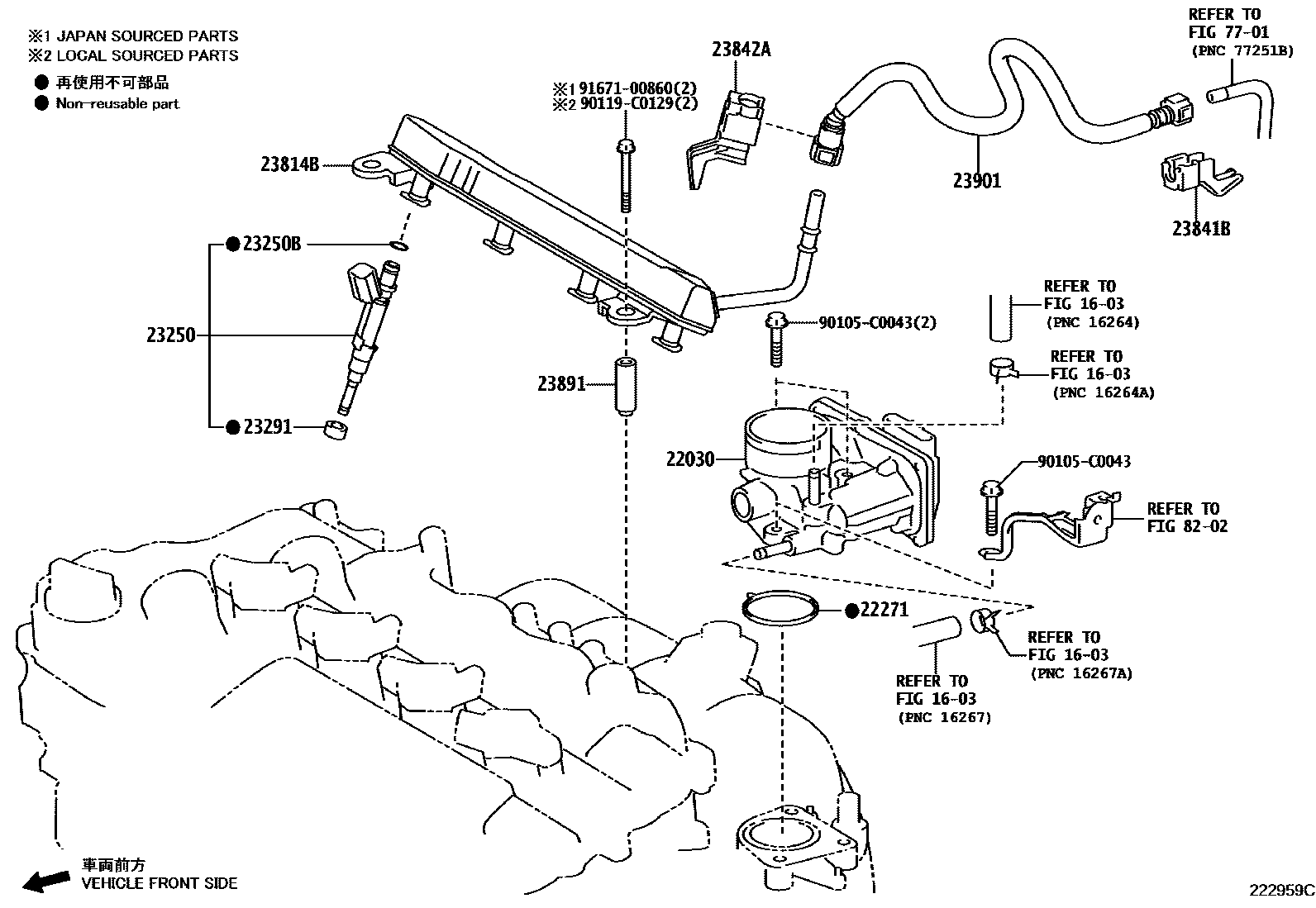

FUEL INJECTION SYSTEM

0001 1 0003 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y040i6NRFE,7NRFE..NSP15#201312-201608

main22030-0Y090i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201608-202111

22271GASKET, THROTTLE BODY

main22271-0Y010i6NRFE,7NRFE..NSP15#201312-202111

23250INJECTOR ASSY, FUEL

main23209-09250i6NRFE,7NRFE..NSP15#201312-202111

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i6NRFE,7NRFE..NSP15#201312-201512

main90301-07037i6NRFE,7NRFE..NSP15#201512-202111

(J)

main90301-C0072i6NRFE,7NRFE..NSP15#201512-202111

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020i6NRFE,7NRFE..NSP15#201312-202111

23814BPIPE, FUEL DELIVERY

main23814-0Y020i6NRFE,7NRFE..NSP15#201702-201805

(L)

sub23814-0Y021

main23814-0Y021i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201806-202111

(L)

main23814-47050i6NRFE,7NRFE..NSP15#201702-201805

(J)

sub23814-47051

main23814-47050i6NRFE,7NRFE..NSP15#201312-201702

sub23814-47051

main23814-47051i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201806-202111

(J)

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0Y030i6NRFE,7NRFE..NSP15#201312-201911

main23841-37081i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0Y030i6NRFE,7NRFE..NSP15#201312-202111

23891SPACER, FUEL DELIVERY

main23891-47030i6NRFE,7NRFE..NSP15#201312-202111

23901TUBE SUB-ASSY, FUEL

main23901-0Y080i6NRFE,7NRFE..NSP15#201312-201608

main23901-0Y180i7NRFE..NSP151201608-201911

main23901-0Y250i7NRFE..NSP151201812-202011

main23901-0Y260i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G202011-202111

7701

8202

90105C0043

main90105-C0043

90119C0129

main90119-C0129

9167100860

main91671-00860

16 parts on this diagram · 2 diagrams in section
