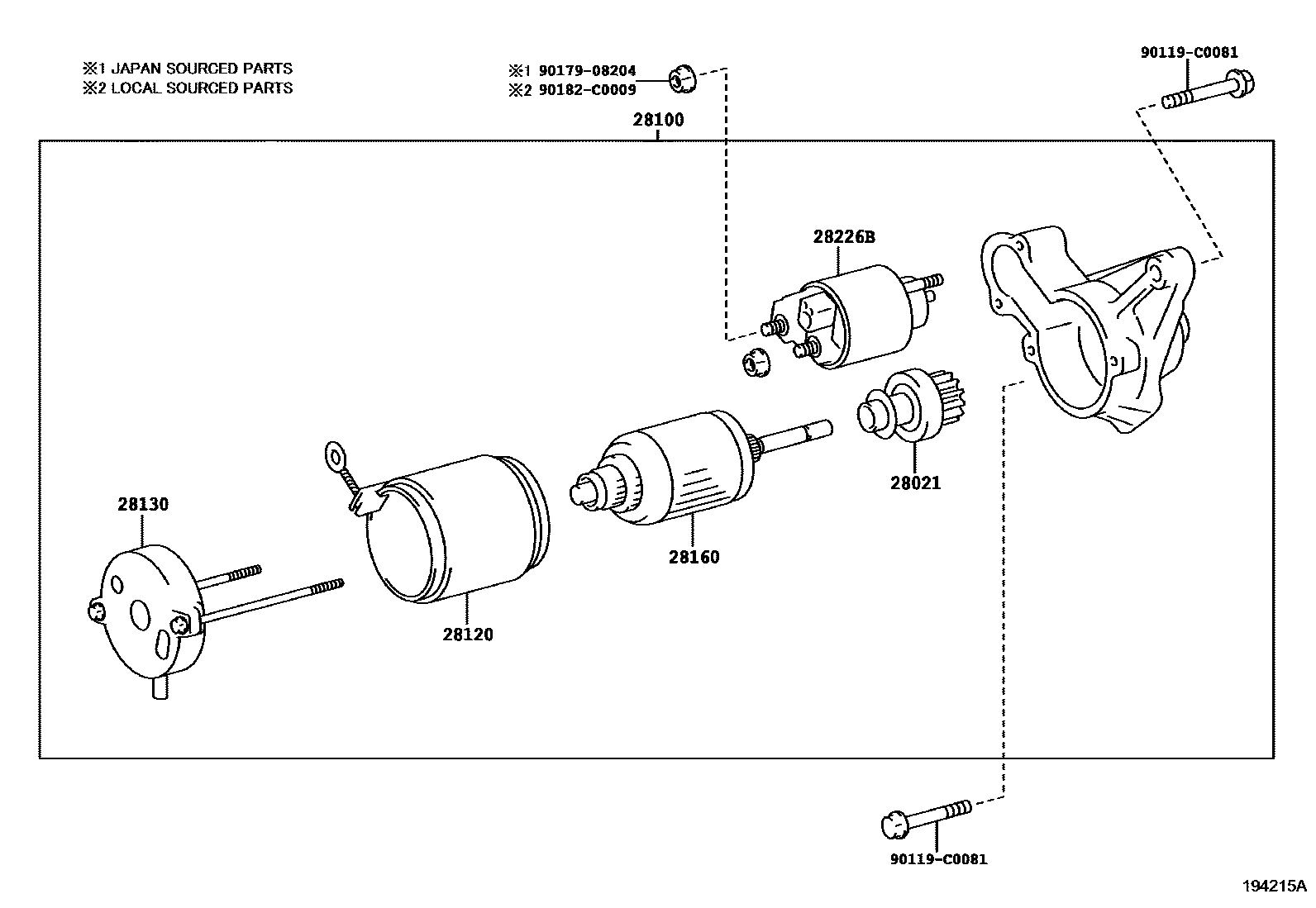

STARTER

0001 112V 1.6KW 0002 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0T360i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

main28021-21060i6NRFE,7NRFE..NSP15#201312-201608

28100STARTER ASSY

main28100-0Y120i6NRFE,7NRFE..NSP15#201312-201608

12V 1.6KW

main28100-0Y330i6NRFE,7NRFE..NSP15#201608-201702

12V 1.7KW

sub28100-0Y331

main28100-0Y331i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201703-202111

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-0Y330i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

main28120-28060i6NRFE,7NRFE..NSP15#201312-201608

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0Y120i6NRFE,7NRFE..NSP15#201312-201608

28160ARMATURE ASSY, STARTER

main28160-0S050i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

main28160-21060i6NRFE,7NRFE..NSP15#201312-201608

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i6NRFE,7NRFE..NSP15#201312-201608

90119C0081

main90119-C0081

9017908204

main90179-08204

90182C0009

main90182-C0009

9 parts on this diagram · 2 diagrams in section
