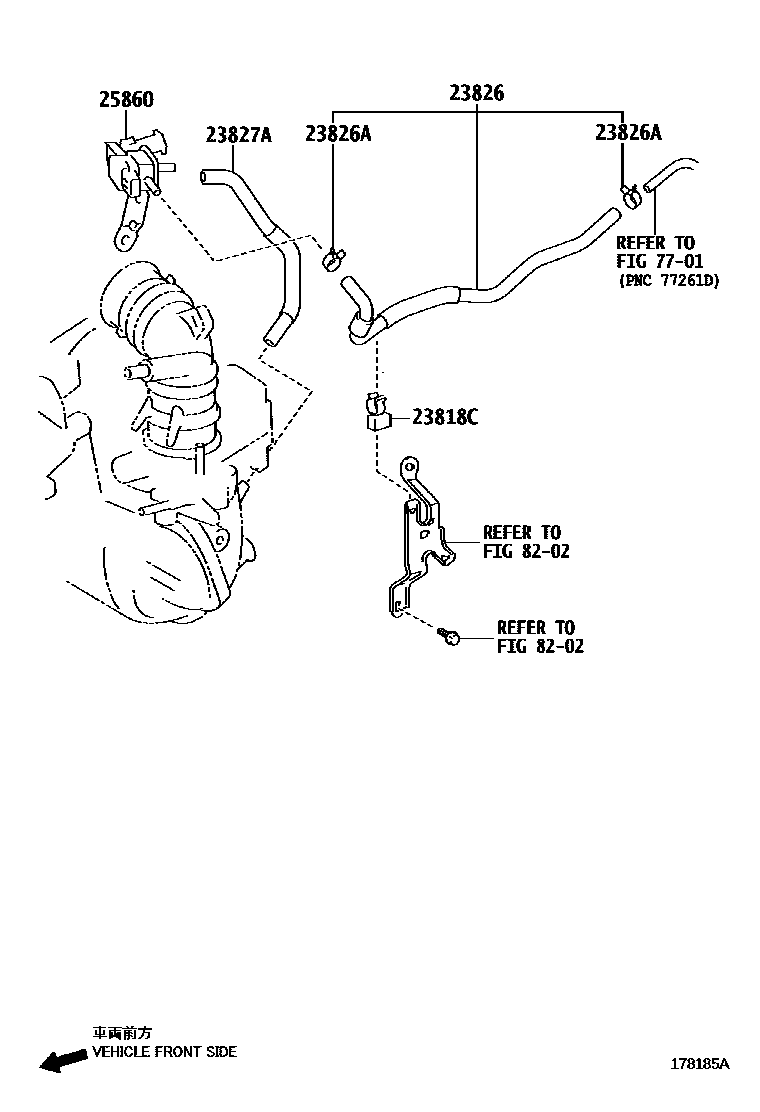

VACUUM PIPING
23818CCLIP(FOR FUEL VAPOR FEED HOSE)
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),NO.1 & NO.2:REF ILL.
NO.1:REFER ILLUST.
NO.1 & NO.2:REF ILL.
NO.2:REFER ILLUST.
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
8202
7 parts on this diagram · 5 diagrams in section
