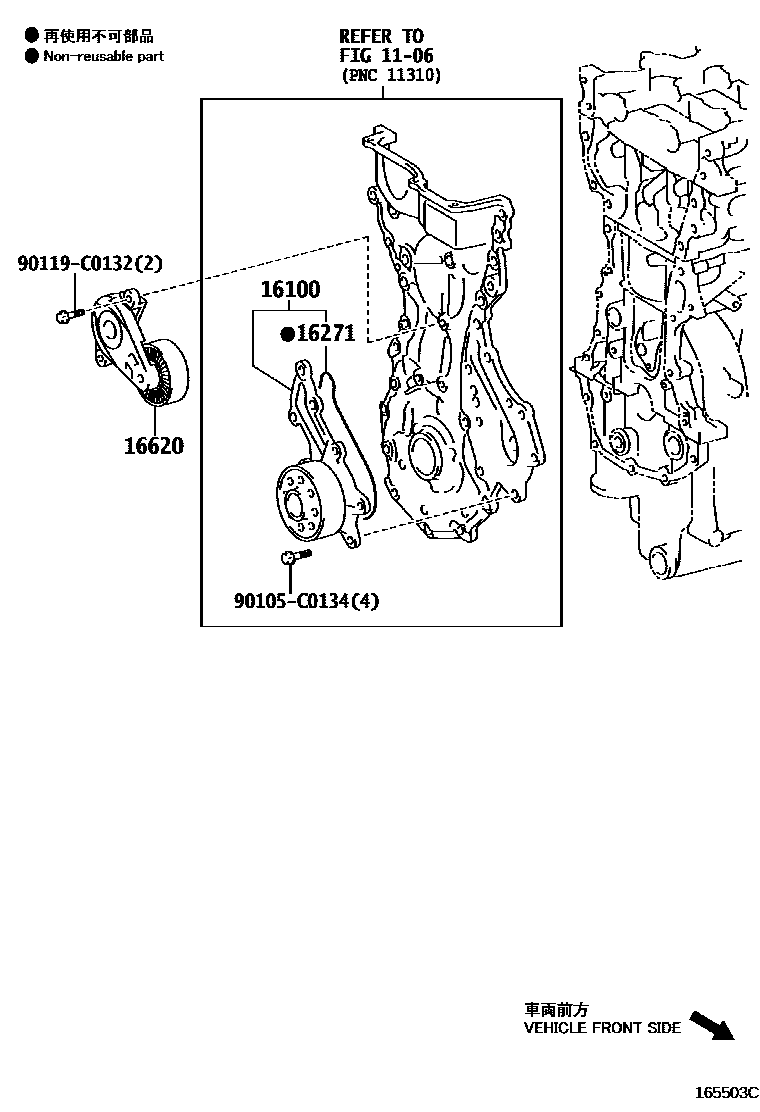

WATER PUMP

0001 1 0003 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09630i6NRFE,7NRFE..NSP15#201312-201911

main16100-09790i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

16271GASKET, WATER PUMP

main16271-0Y020i6NRFE,7NRFE..NSP15#201312-202111

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y010i6NRFE,7NRFE..NSP15#201312-201607

sub16620-0Y040

main16620-0Y040i6NRFE,7NRFE..NSP15#201608-201804

sub16620-0Y042

main16620-0Y042i6NRFE,7NRFE..NSP15#201804-201907

sub16620-0Y043

main16620-0Y043i6NRFE,7NRFE..NSP15#201908-202109

sub16620-0Y044

main16620-0Y044i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G202110-202111

90105C0134

main90105-C0134

90119C0132

main90119-C0132

6 parts on this diagram · 2 diagrams in section
