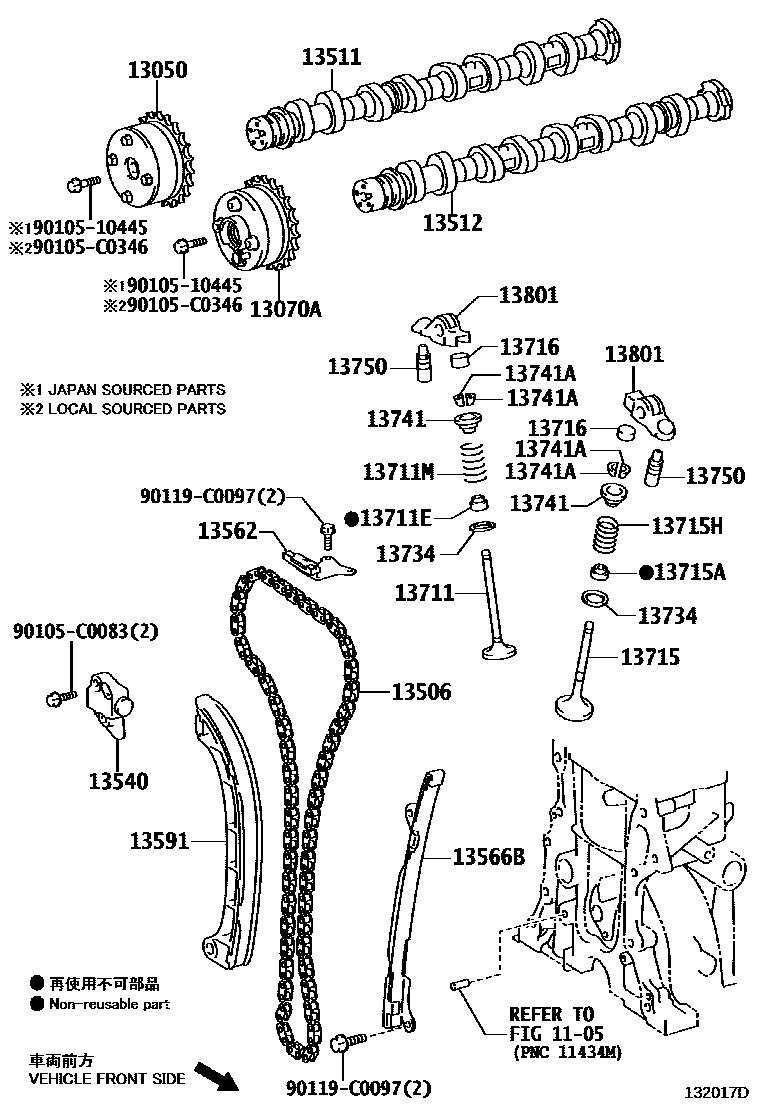

CAMSHAFT & VALVE

0001 1 0003 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0Y010i7NRFE..NSP151201312-201911

main13050-47040i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-0T020i6NRFE,7NRFE..NSP15#201312-201911

main13070-0Y050i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

13506CHAIN SUB-ASSY

main13506-0Y030i6NRFE,7NRFE..NSP15#201312-202111

13511CAMSHAFT

main13501-0Y030i6NRFE,7NRFE..NSP15#201312-201608

main13501-0Y030i7NRFE..NSP151201608-201911

(L)

main13501-0Y120i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

(L)

main13501-47020i7NRFE..NSP151201702-201911

(J)

main13501-47060i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

(J)

13512CAMSHAFT, NO.2

main13502-0Y030i6NRFE..NSP150201608-201911

(L)

main13502-0Y030i6NRFE,7NRFE..NSP15#201312-201608

main13502-0Y100i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201812-202111

(L)

main13502-47010i7NRFE..NSP151201702-201911

(J)

main13502-47050i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201812-202111

(J)

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0Y020i6NRFE,7NRFE..NSP15#201312-202209

main13540-0Y020i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)202209

W/O GASKET

main13540-47011i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)202209

W/GASKET

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-0Y010i6NRFE,7NRFE..NSP15#201312-202111

13566BGUIDE, TIMING CHAIN

main13566-0Y020i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201312-202111

13591ARM, TIMING CHAIN TENSION

main13591-0Y020i6NRFE,7NRFE..NSP15#201312-201804

sub13591-0Y030

main13591-0Y030i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201805-202111

13711VALVE, INTAKE

main13711-0Y010i6NRFE,7NRFE..NSP15#201312-202111

13711ESEAL, INTAKE VALVE STEM OIL

main90913-T2001i6NRFE,7NRFE..NSP15#201312-202111

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-C0021i6NRFE,7NRFE..NSP15#201312-201608

main90501-C0052i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

13715VALVE, EXHAUST

main13715-0Y010i6NRFE,7NRFE..NSP15#201312-201808

main13715-0Y030i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201808-202111

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-T2003i6NRFE,7NRFE..NSP15#201312-202111

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-C0021i6NRFE,7NRFE..NSP15#201312-201608

main90501-C0052i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201608-202111

13716CAP, VALVE STEM

main13716-0Y010i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201312-202111

(L)

main13716-75020i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201312-202111

(J)

13734SEAT, VALVE SPRING

main13734-0P020i6NRFE,7NRFE..NSP15#201312-202111

13741RETAINER, VALVE SPRING

main13741-0Y020i6NRFE,7NRFE..NSP15#201312-201607

main13741-0Y050i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

13741ALOCK, VALVE SPRING RETAINER

main90913-C3002i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201312-202111

13750ADJUSTER ASSY, VALVE LASH

main13750-0Y010i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201312-202111

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0V020i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

main13801-0Y010i6NRFE,7NRFE..NSP15#201312-201607

9010510445

main90105-10445

90105C0083

main90105-C0083

90105C0346

main90105-C0346

90119C0097

main90119-C0097

26 parts on this diagram · 2 diagrams in section
