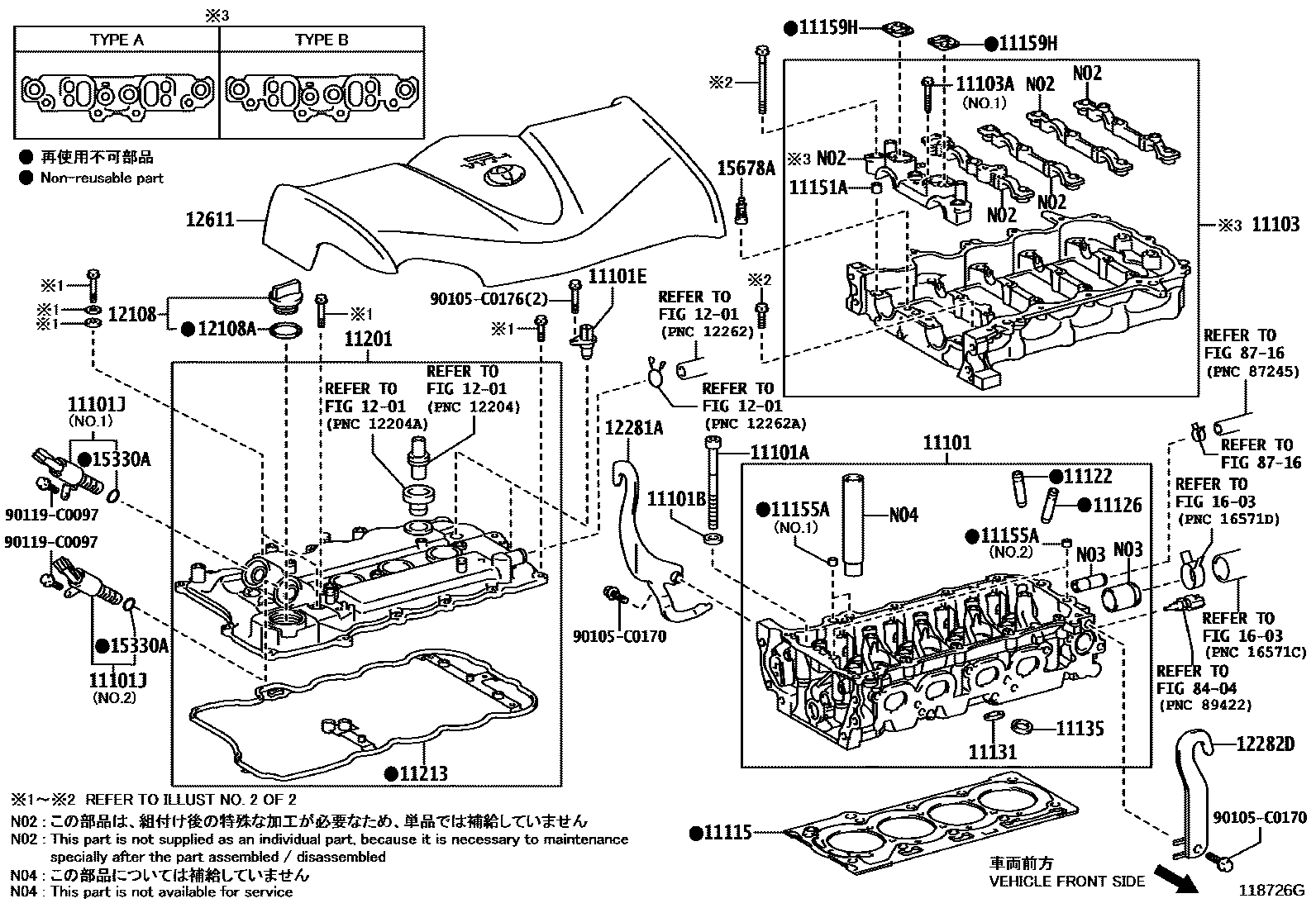

CYLINDER HEAD

0001 1 0003 1 0004 1 0006 1

11101HEAD SUB-ASSY, CYLINDER

main11101-09500i6NRFE,7NRFE..NSP15#201312-201608

main11101-09680i6NRFE..NSP150201608-201911

(L)

main11101-09750i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201812-202111

main11101-49535i6NRFE..NSP150201807-201911

(J)

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02174i6NRFE,7NRFE..NSP15#201312-201604

main90910-C2007i6NRFE,7NRFE..NSP15#201604-202111

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-C0002i6NRFE,7NRFE..NSP15#201312-202111

11101ESENSOR, CAM POSITION

main90919-05060i6NRFE,7NRFE..NSP15#201312-201702

main90919-C5001i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201703-202111

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0Y010i7NRFE..NSP151201312-201911

NO.1:REFER ILLUST.

main15330-0Y020i7NRFE..NSP151201312-201911

NO.2:REFER ILLUST.

main15330-0Y020i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-0Y030i6NRFE,7NRFE..NSP15#201312-201608

main11103-0Y031i7NRFE..NSP151201608-201911

TYPE A:REFER ILLUST.

main11103-0Y110i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201812-202111

main11103-47041i7NRFE..NSP151201702-201911

TYPE B:REFER ILLUST.

sub11103-47012

sub11103-47901

11103ABOLT(FOR CAMSHAFT HOUSING SET)

main90105-C0167i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201312-202111

NO.2:REFER ILLUST.

main90119-07009i6NRFE,7NRFE..NSP15#201312-202111

(J),NO.1:SEE ILLUST

main90119-C0469i6NRFE,7NRFE..NSP15#201511-202111

(L),NO.1:SEE ILLUST

11115GASKET, CYLINDER HEAD

main11115-0Y020i6NRFE,7NRFE..NSP15#201312-201711

sub11115-0Y021

main11115-0Y021i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201712-202111

11122BUSH, INTAKE VALVE GUIDE

main11122-47010i6NRFE,7NRFE..NSP15#201312-202304

STD

main11123-47010i6NRFE,7NRFE..NSP15#201312-202304

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-47010i6NRFE,7NRFE..NSP15#201312-202304

STD

main11123-47010i6NRFE,7NRFE..NSP15#201312-202304

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-0Y010i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201312-202111

STD

main11131-0Y010i7NRFE..NSP151201608-201911

STD,(L)

main11131-47010i6NRFE..NSP150201702-201911

STD,(J)

main11132-47010i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201312-202111

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-0Y010i6NRFE..NSP150201608-201911

STD,(L)

main11135-0Y010i6NRFE,7NRFE..NSP15#201312-202111

STD

main11135-47040i6NRFE..NSP150201702-201911

STD,(J)

main11136-47010i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201312-202111

O/S 0.03

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-13005i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201702-202111

L=12.5,OD=8,(J)

main90253-C0004i6NRFE,7NRFE..NSP15#201312-202111

L=12.5,OD=8,(L)

11155APIN, RING W/HEAD

main90253-C0002i6NRFE,7NRFE..NSP15#201312-201608

NO.1 & NO.2

main90253-C0002i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

NO.1

main90253-C0005i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

NO.2

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-0Y010i6NRFE..NSP150201312-202111

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0Y020i6NRFE,7NRFE..NSP15#201312-201608

main11201-0Y130i7NRFE..NSP151201608-201911

main11201-0Y140i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201812-202111

11213GASKET, CYLINDER HEAD COVER

main11213-0Y020i6NRFE,7NRFE..NSP15#201312-201911

main11213-0Y050i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0T010i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201312-202111

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201312-202111

12281AHANGER, ENGINE, NO.1

main12281-0Y021i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

main12281-0Y050i6NRFE,7NRFE..NSP15#201312-201812

12282DHANGER, ENGINE, NO.2

main12282-0Y031i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201312-202111

12611COVER, ENGINE, NO.1

main12611-0Y070i6NRFE,7NRFE..NSP15#201312-201608

main12611-0Y121i7NRFE..NSP151201608-201911

main12611-0Y180i7NRFE..NSP151201812-202107

main12611-0Y260i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G202107-202111

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14032i7NRFE..NSP151201312-202111

15678AFILTER, OIL CONTROL VALVE

main15678-0Y040i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201902-202111

main15678-31020i6NRFE,7NRFE..NSP15#201312-201901

1603

8404

8716

90105C0170

main90105-C0170

90105C0176

main90105-C0176

90119C0097

main90119-C0097

31 parts on this diagram · 4 diagrams in section
