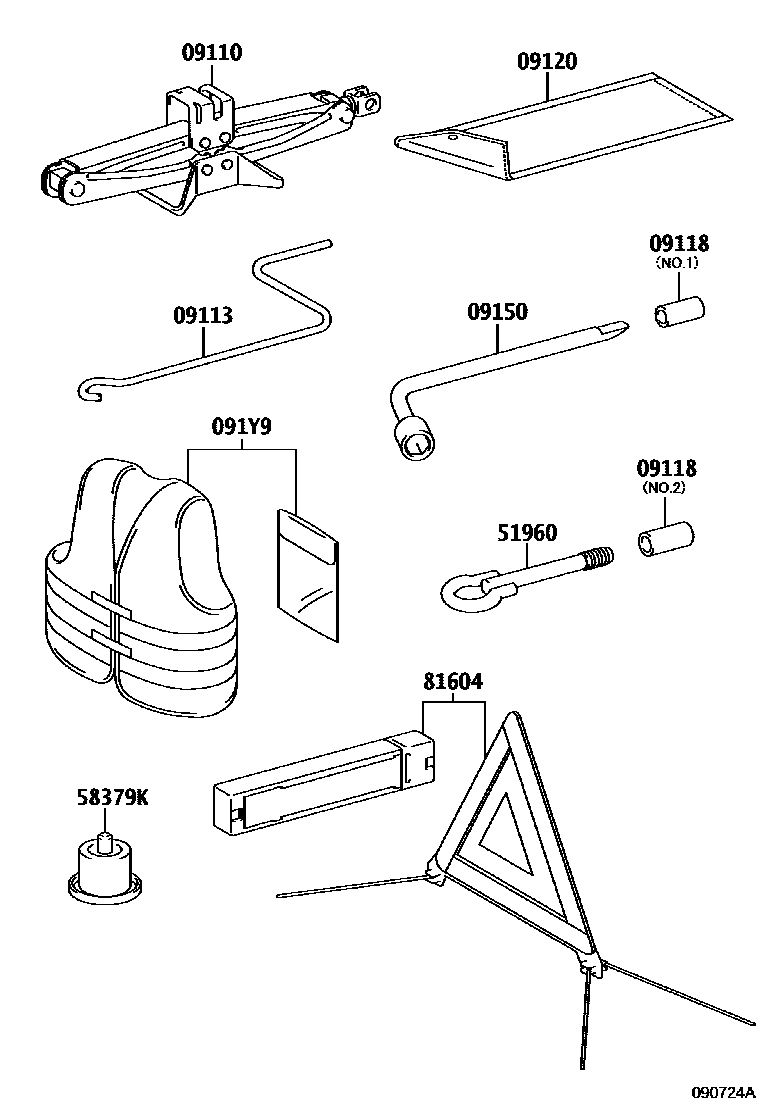

STANDARD TOOL

09110JACK ASSY

main09111-0D150iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

09113HANDLE, JACK

main09113-0D021iNSP15#201312-201608

09118COVER, JACK

main09118-0D050iNSP15#201312-201608

NO.1:REFER ILLUST.

main09118-0D060iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

NO.2:REFER ILLUST.

09120BAG, TOOL

main09120-0D170iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

09150WRENCH, HUB NUT BOX

main09150-0D020iNSP15#201312-201608

091Y9JACKET, W/REFLECTOR

main091Y9-02010iNSP151..N;NSP151..5F..R;NSP151..4D..G201712-202111

51960HOOK ASSY, FRONT

main51960-0D200iNSP15#201312-201608

58379KPROTECTOR, BODY LOWER BACK

main58379-0D050iNSP15#201312-201608

81604REFLECTOR SET, TRIANGLE

main81604-0E010iNSP15#201312-201608

9 parts on this diagram · 1 diagram in section
