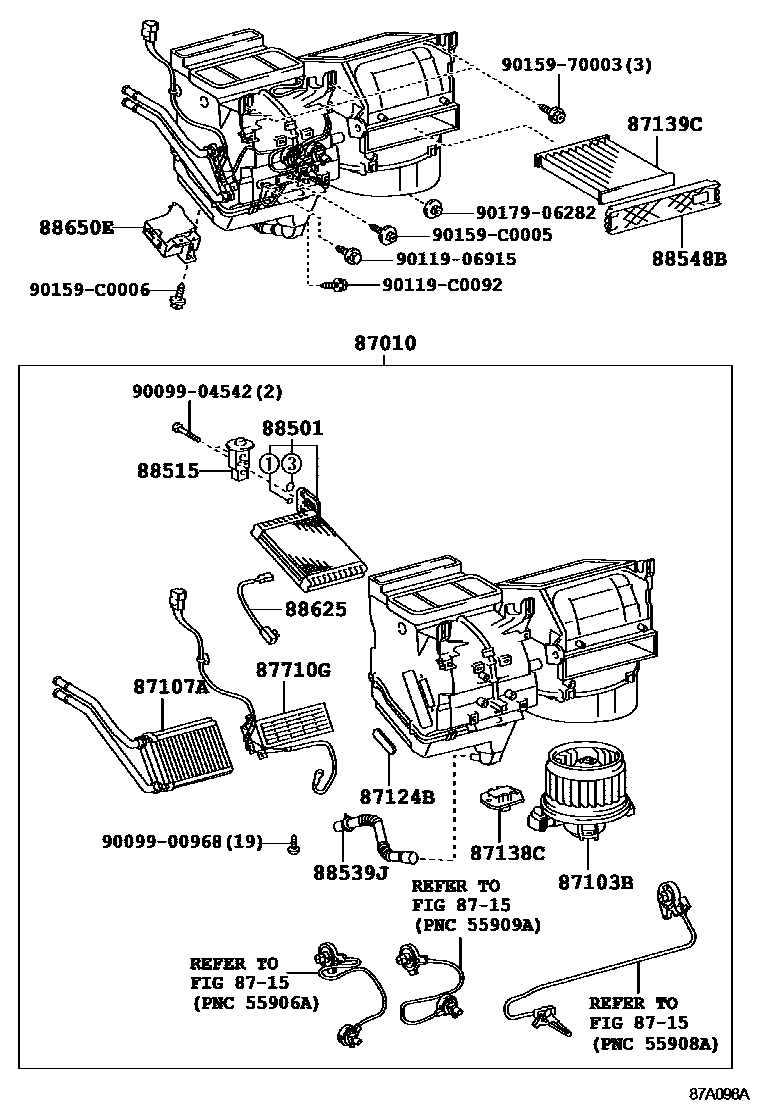

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1O-RING

87010UNIT ASSY, AIR CONDITIONER

main87010-0D470iZSP91..RS200805-201008

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D180iNCP90,ZSP91200805-201011

sub87103-0D181

main87103-0D181iNCP90,ZSP91201012

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0D110iZSP91..RS200805-201008

87124BCLAMP, HEATER

main87124-0D020iZSP91..RS200805-201008

87138CRESISTOR, BLOWER

main87138-0D110iZSP91..RS200805-201008

87139CFILTER, CLEAN AIR

main87139-0D040iNCP90,ZSP91200805-201308

main87139-50100iNCP90,ZSP91..STD200805-201308

*DPF

8715

87710GQUICK HEATER ASSY

main87710-0D020iZSP91..RS200805-201008

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D160iNCP90,ZSP91200805-200810

sub88501-0D161

main88501-0D161iNCP90,ZSP91200811-201205

sub88501-0D162

main88501-0D162iNCP90,ZSP91201206

88515VALVE, COOLER EXPANSION

main88515-0D110iNCP90,ZSP91200805-201110

sub88515-0D210

sub88515-0F010

main88515-0F010iNCP90,ZSP91201111

88539JHOSE, DRAIN COOLER

main88539-0D120iNCP90,ZSP91200805-201104

sub88539-0D250

main88539-0D250iNCP90,ZSP91201105

88548BCASE, AIR FILTER

main88548-0D090iZSP91..RS200805-201008

88625THERMISTOR, COOLER, NO.1

main88625-0D100iZSP91..RS200811-201008

main88625-26090iNCP90,ZSP91200805-200810

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-0D240iZSP91..RS200805-201008

9009900968

main90099-00968

9009904542

main90099-04542

9011906915

main90119-06915

90119C0092

main90119-C0092

9015970003

main90159-70003

90159C0005

main90159-C0005

90159C0006

main90159-C0006

9017906282

main90179-06282

22 parts on this diagram · 2 diagrams in section
