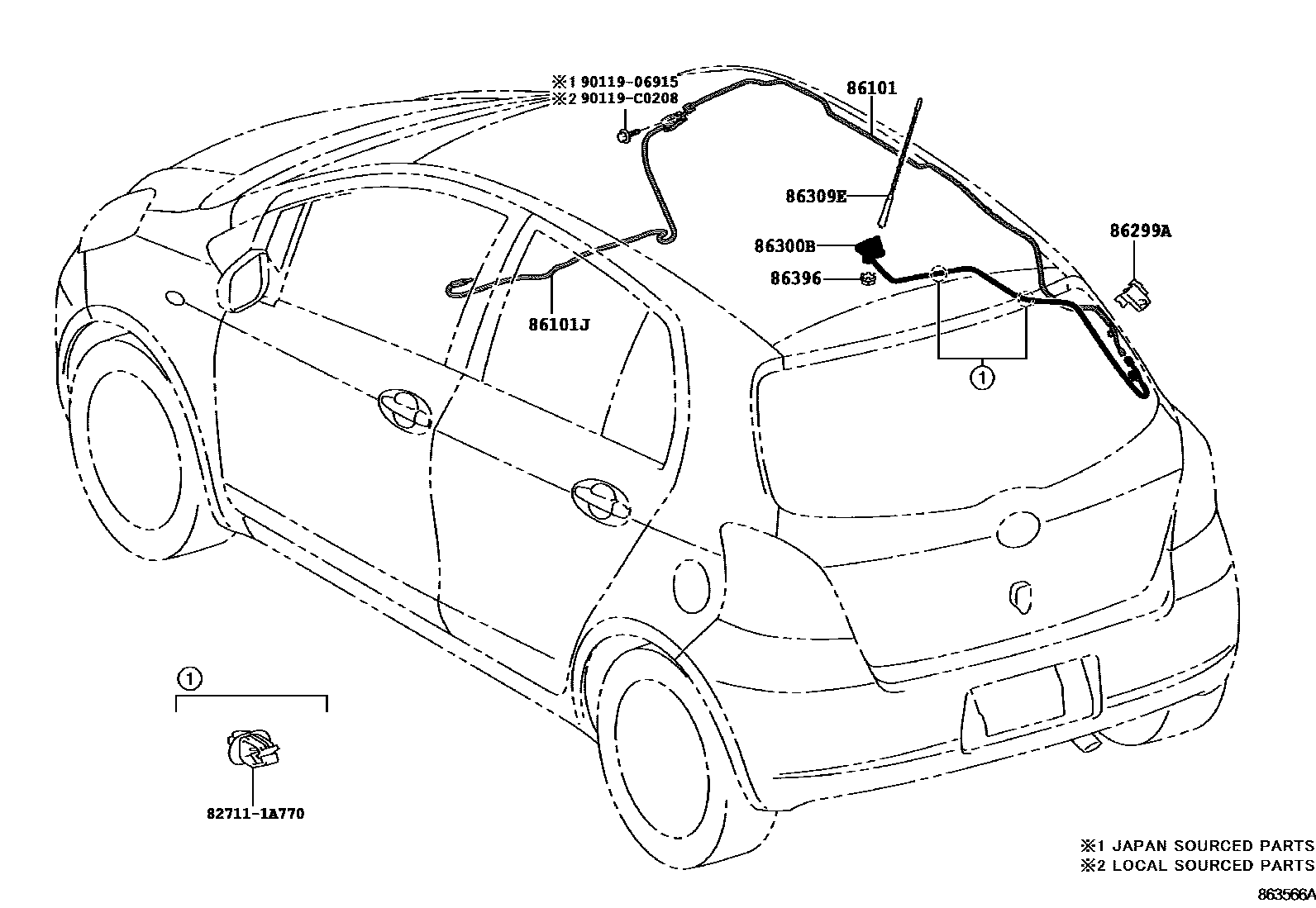

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0D310iNCP90,ZSP91200805-201008

main86101-0D430iNCP90,ZSP91201008-201308

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D320iZSP91..RS200805-201008

86299ACLIP, RADIO TO ANTENNA WIRE

main86299-0D010iZSP91..RS200805-201008

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D170iNCP90,ZSP91200805-201008

main86300-0D240iNCP90,ZSP91..STD201008

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D080iZSP91..RS200805-201008

86396NUT, ANTENNA

main86396-0D050iZSP91..RS200805-201008

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

90119C0208

main90119-C0208

9 parts on this diagram · 1 diagram in section
