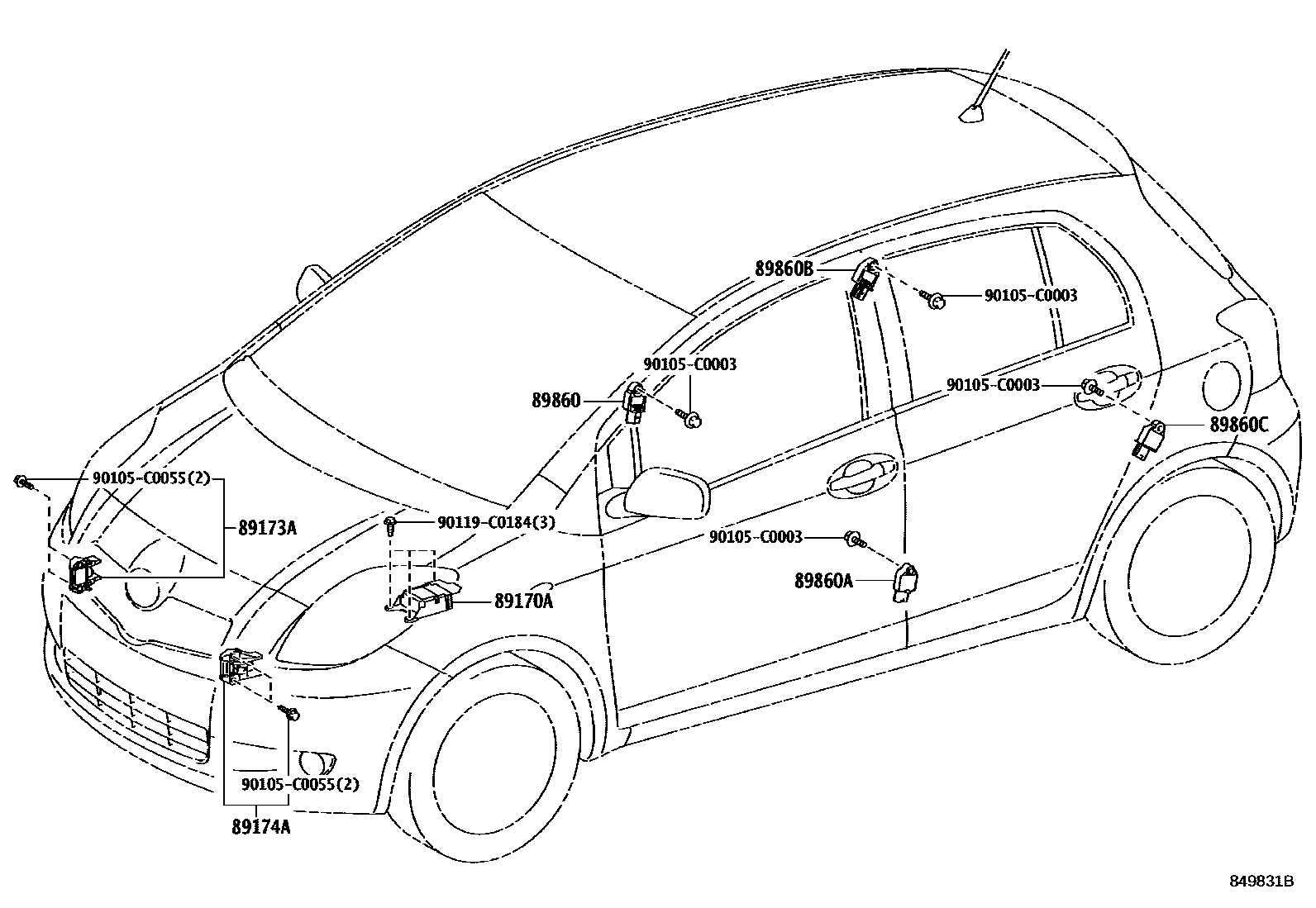

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0D390supersedes 89170-0D390iNCP90200805-201308

main89170-0D400iZSP91200805-201206

89173ASENSOR, AIRBAG, FRONT RH

main89173-09530iNCP90,ZSP91200805-201010

main89173-09790iNCP90,ZSP91201010

89174ASENSOR, AIRBAG, FRONT LH

main89173-09530iNCP90,ZSP91200805-201010

main89173-09790iNCP90,ZSP91201010

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0D040iZSP91200805-201010

1.6E GRADE

sub89831-0R050

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0D040iZSP91200805-201010

1.6E GRADE

sub89831-0R050

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-0D050iZSP91200805-201010

1.6E GRADE

sub89831-0E080

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-0D050iZSP91200805-201010

1.6E GRADE

sub89831-0E080

90105C0003

main90105-C0003

90105C0055

main90105-C0055

90119C0184

main90119-C0184

10 parts on this diagram · 1 diagram in section
