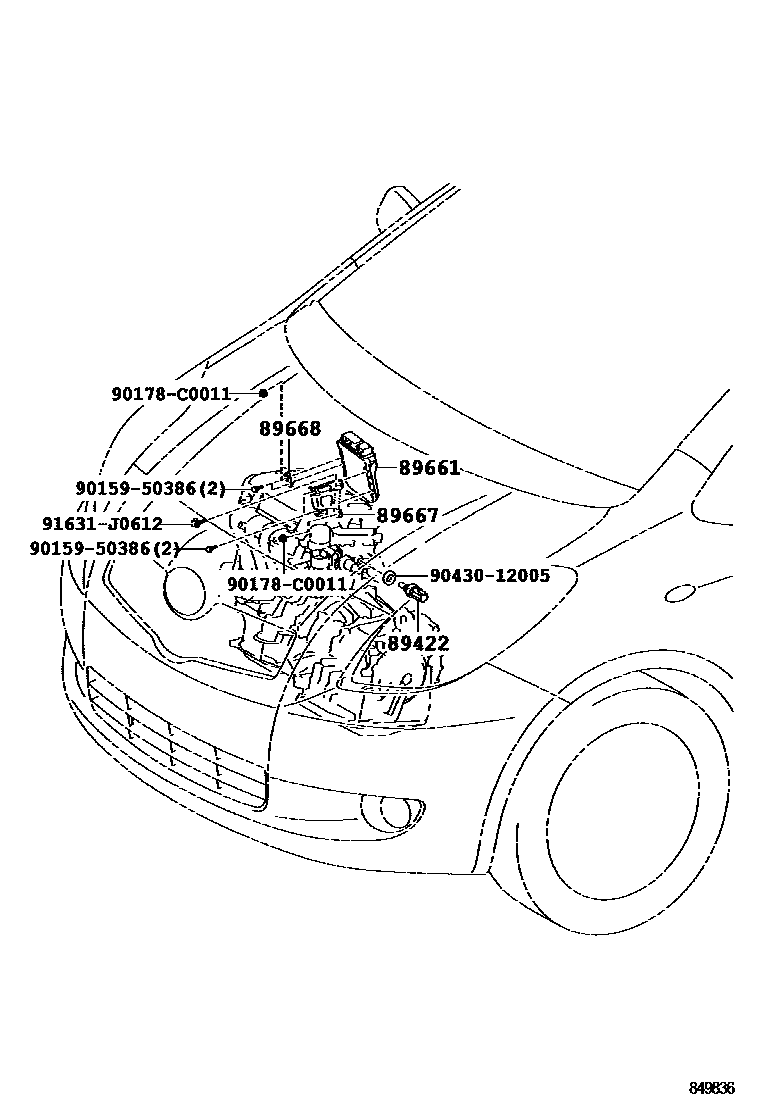

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iZSP91..STD200805-201008

main89422-33030iNCP90200805

89661COMPUTER, ENGINE CONTROL

main89661-0D850iNCP90..5F200812

main89661-0D860iNCP90..4FC200812

main89661-0D870iNCP90..5F200805-200812

main89661-0D880iNCP90..4FC200805-200812

main89661-0D890iZSP91..5F200812-201102

main89661-0DA00iZSP91..4FC200812-201102

main89661-0DA10iZSP91..5F200805-200812

main89661-0DA20iZSP91..4FC200805-200812

main89661-0DD00iZSP91..5F201102

main89661-0DD10iZSP91..4FC201102

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52200iNCP90,ZSP91200805

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52220iNCP90,ZSP91200805

9015950386

main90159-50386

90178C0011

main90178-C0011

9043012005

main90430-12005

91631J0612

main91631-J0612

8 parts on this diagram · 2 diagrams in section
