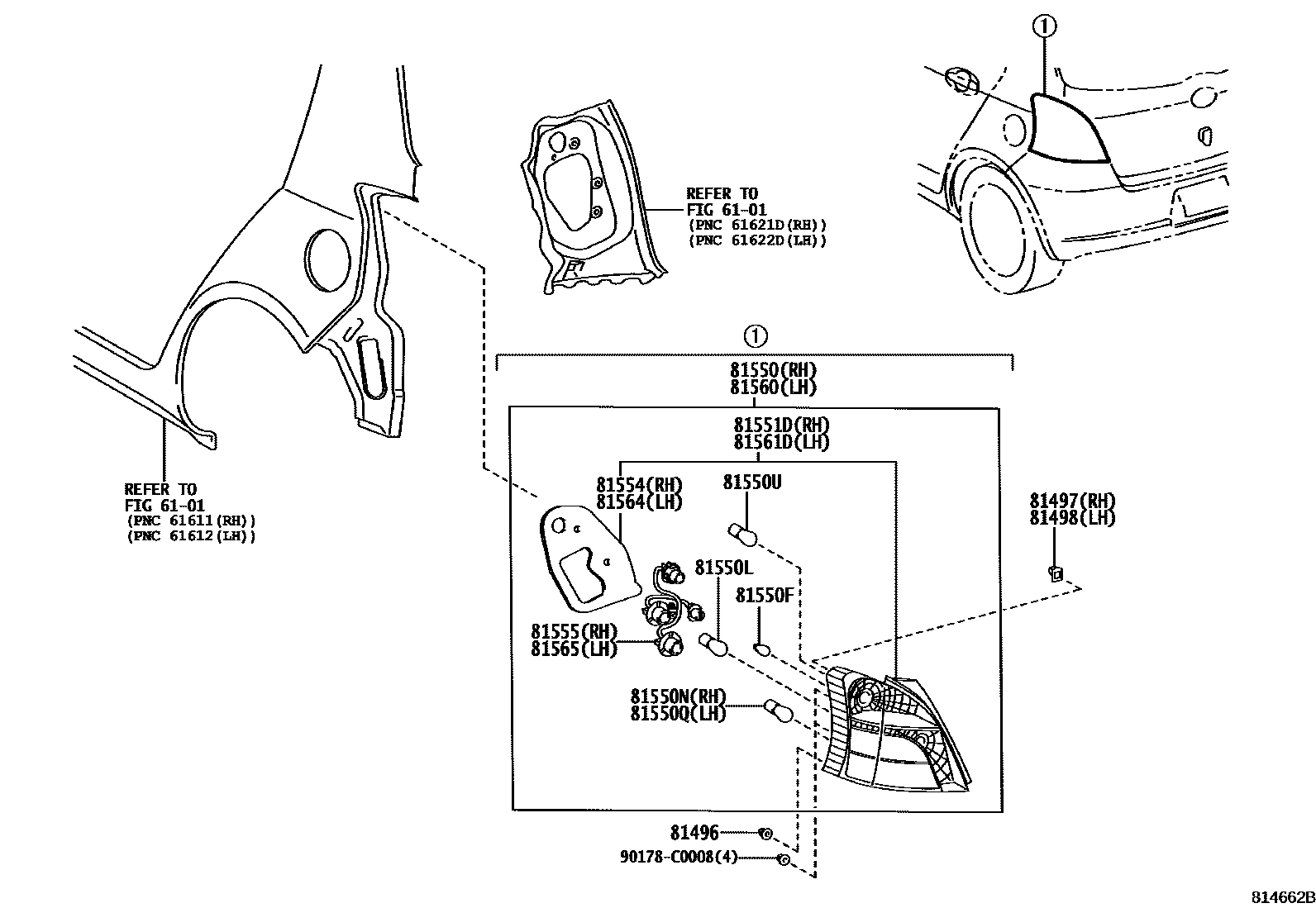

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550LAMP ASSY, REAR COMBINATION, RH
81550FBULB, TAILLAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550QBULB, REAR FOG LAMP, NO.1
81550UBULB, STOP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90178C0008
main90178-C0008
18 parts on this diagram · 1 diagram in section
