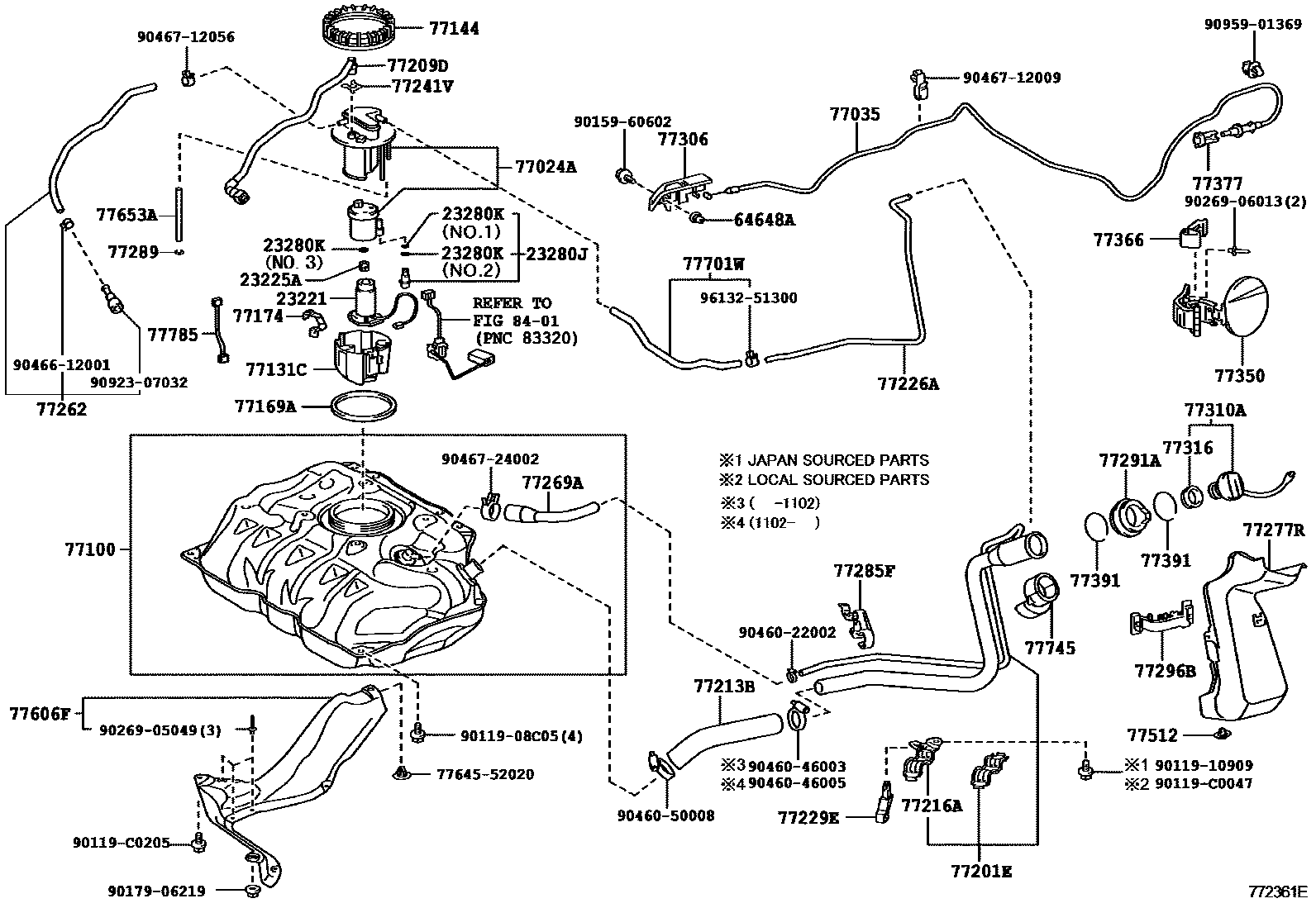

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
(L)
(J)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.3
NO.2
64648AGROMMET, LUGGAGE DOOR LOCK OPENER
77024APLATE SUB-ASSY, FUEL SUCTION
sub77024-0D130
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77226ATUBE, FUEL TANK BREATHER, NO.6
77229ECLAMP, BREATHER TUBE
77241VCLIP, TUBE JOINT
77262TUBE, FUEL EMISSION, NO.2
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285FCLAMP, FUEL TUBE, NO.1
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77606FCASE SUB-ASSY, FUEL TANK COVER VENT
77653ACUSHION, FUEL TANK, NO.3
77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77745FILTER, CHARCOAL CANISTER, NO.1
8401
7764552020PACKING, FUEL TANK BRACKET UPPER, B
main77645-52020
9011908C05
main90119-08C05
9011910909
main90119-10909
90119C0047
main90119-C0047
90119C0205
main90119-C0205
9015960602
main90159-60602
9017906219
main90179-06219
9026905049
main90269-05049
9026906013
main90269-06013
9046022002
main90460-22002
9046046003
main90460-46003
9046046005
main90460-46005
9046050008
main90460-50008
9046612001
main90466-12001
9046712009
main90467-12009
9046712056
main90467-12056
9046724002
main90467-24002
9092307032
main90923-07032
9095901369
main90959-01369
9613251300
main96132-51300
60 parts on this diagram · 2 diagrams in section
