MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
7503
76621CMUDGUAD, FRONT FENDER, RH
76622CMUDGUARD, FRONT FENDER, LH
76781ATAPE, REAR SPOILER, UPPER NO.1
76782ATAPE, REAR SPOILER, UPPER NO.2
76783ATAPE, REAR SPOILER, LOWER NO.1
76784ATAPE, REAR SPOILER, LOWER NO.2
76791BBRACKET, REAR SPOILER
RH
LH
76865RETAINER, REAR SPOILER, NO.1
76866BRETAINER, REAR SPOILER, NO.2
76871BCOVER, REAR SPOILER
76887SEAL, REAR SPOILER
76893ACOVER, REAR SPOILER, RH
76894COVER, REAR SPOILER, LH
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76915JMUDGUARD, SIDE, RH
76916JMUDGUARD, SIDE, LH
76919PAD, SIDE MUDGUARD
FRONT SIDE
REAR SIDE
76923RETAINER, SIDE MUDGUARD
76925DPROTECTOR, SIDE MUDGUARD, RH
MEDIUM GRAY,040 ,1D4 ,4R0 ,4T8
BLACK,1G3 ,202 ,3P0 ,8P8 ,8S6 ,9AC
9015960498
90159C0008
main90159-C0008
9018906006
9046710162

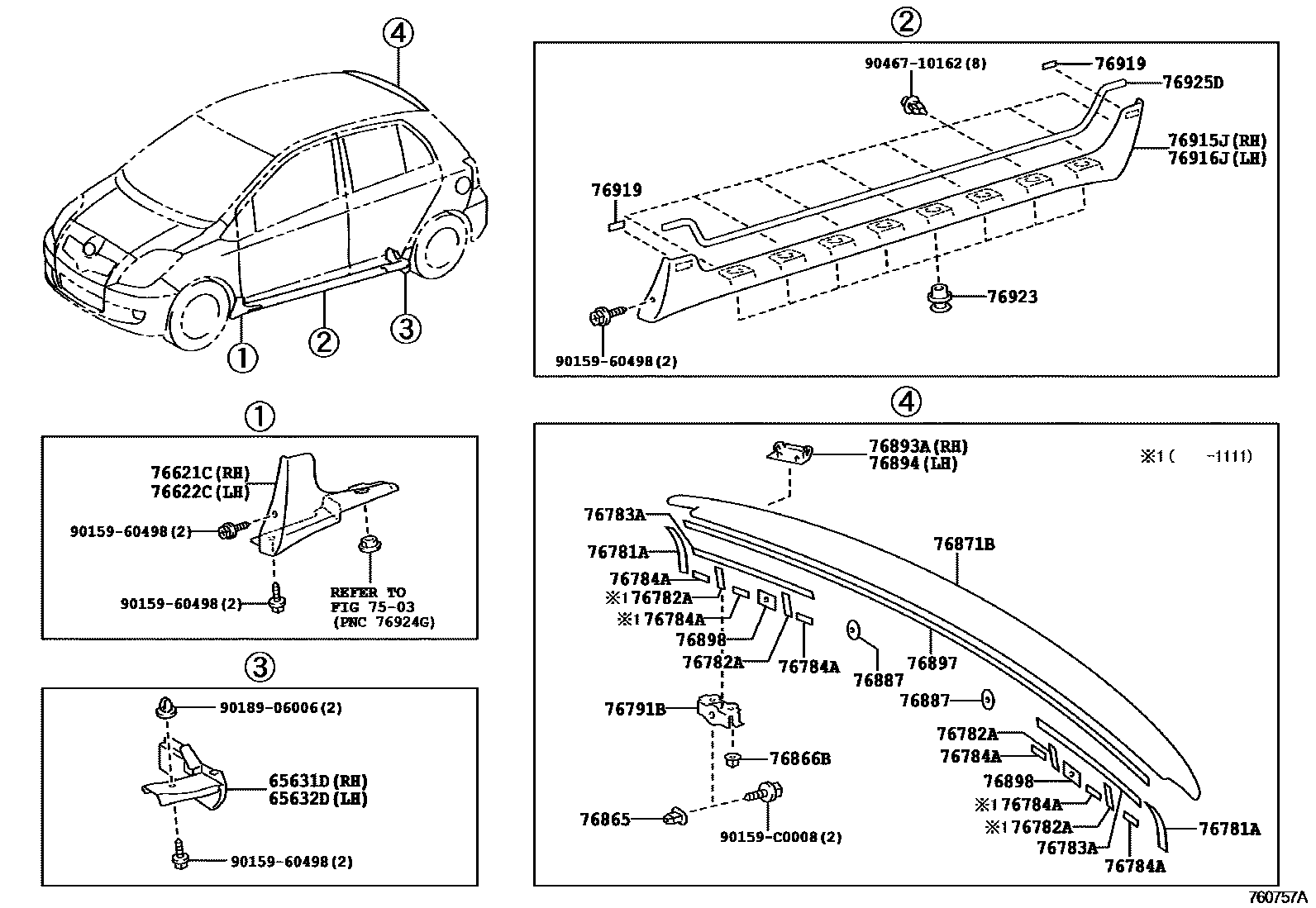

27 parts on this diagram · 1 diagram in section
