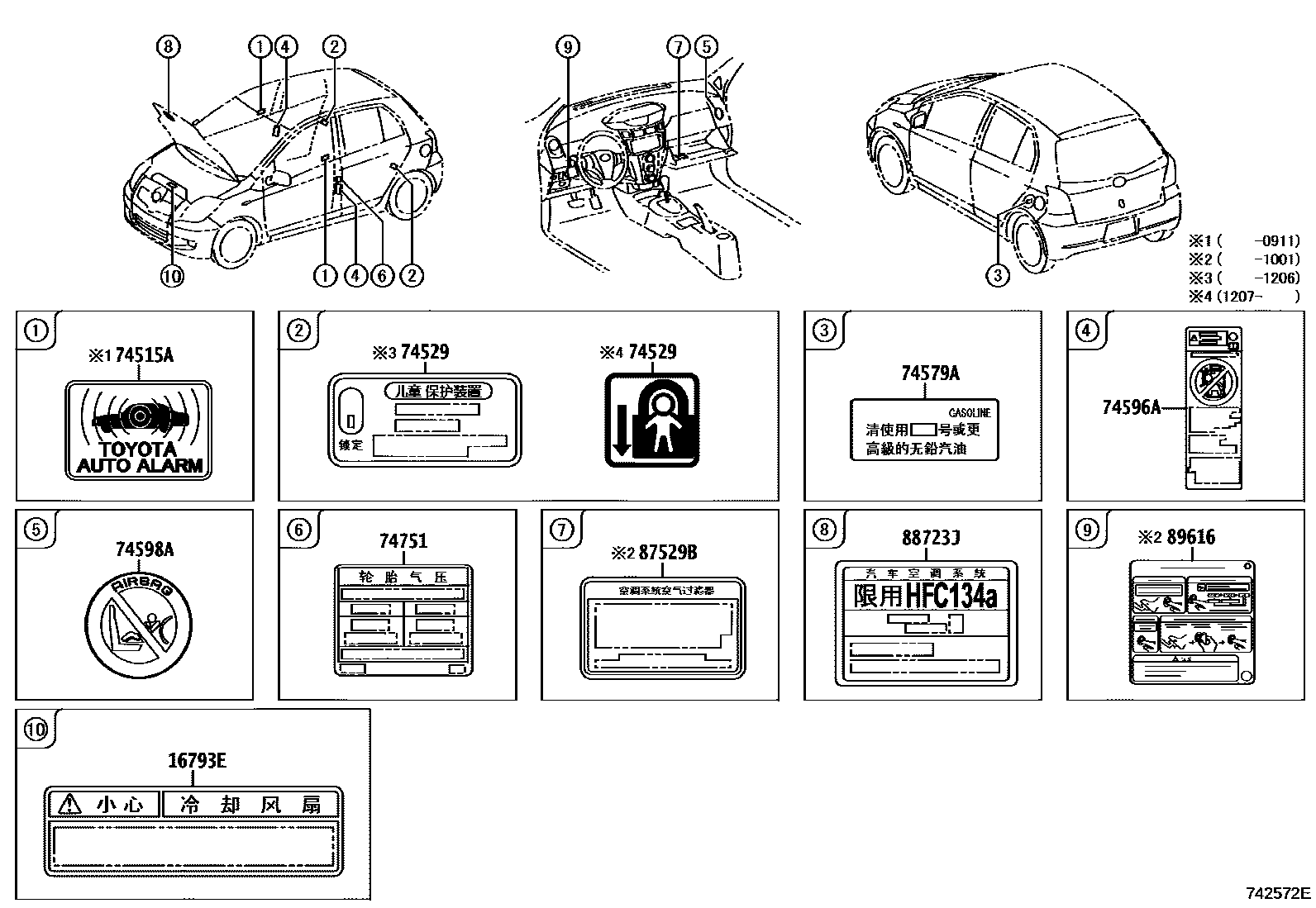

CAUTION PLATE (EXTERIOR & INTERIOR)

16793ELABEL, COOLING FAN CAUTION

main16793-15020i2NZFE,1ZRFE..NCP90,ZSP91200805-201308

74515APLATE, THEFT WARNING

main74515-06020iZSP91..STD200805-200911

1.6E GRADE

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-06030iNCP90,ZSP91200805-201206

sub69339-06080

main69339-06080iNCP90,ZSP91201207

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-0D010iZSP91201303

(L)

main74579-26010iNCP90,ZSP91200805-201207

sub74579-33010

main74579-26011iZSP91201208-201303

main74579-26011iNCP90201208

(J)

74596ALABEL, SIDE AIRBAG CAUTION

main74596-30040iZSP91200805-201008

1.6E GRADE

main74596-53020iZSP91201008-201206

1.6E GRADE

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-06040iZSP91..RS200805-201008

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0D330iZSP91..RS200805-201008

87529BLABEL, A/C FILTER INFORMATION

main87529-0D020iNCP90,ZSP91200805-201001

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88723-0D020iZSP91..RS200805-201008

89616LABEL, PUSH START INFORMATION

main89616-30081iZSP91..4FC..RS200805-201001

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

main89616-60030iZSP91..5F..RS200805-201001

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

10 parts on this diagram · 1 diagram in section
