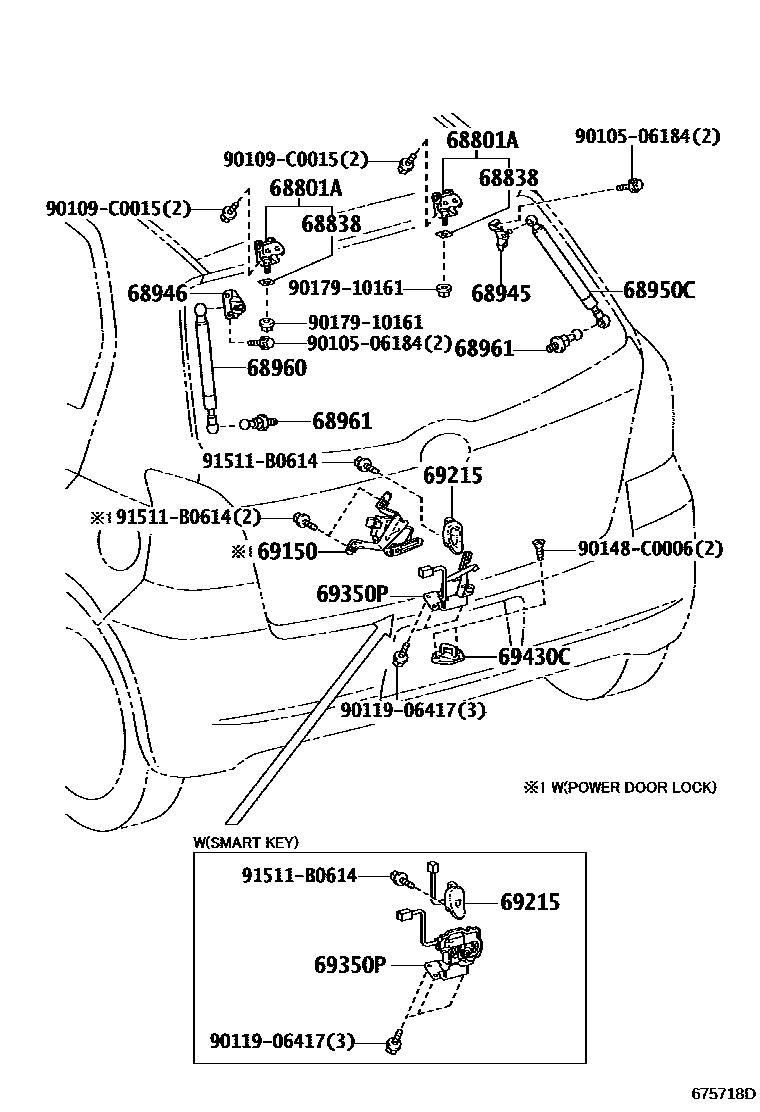

BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-0D080iNCP90,ZSP91200805-201308

68838PAD, BACK DOOR HINGE, NO.1

main68838-0D040iNCP90,ZSP91..STD200805-201008

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52050iZSP91..RS200805-201008

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52050iNCP90,ZSP91..STD200805-201008

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D030iZSP91..RS200805-201008

68960STAY ASSY, BACK DOOR, LH

main68960-0D020iZSP91..RS200805-201008

68961BOLT, BACK DOOR STAY

main68961-10030iZSP91..RS200805-201008

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-0D060iNCP90200805

main69150-0D060iZSP91..STD200911

1.6E GRADE&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

main69150-0D060iZSP91..STD200911

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

main69150-0D070iZSP91..STD200805-200911

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

main69150-0D070iZSP91..STD200805-200911

1.6E GRADE&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

69215HANDLE, BACK DOOR OUTSIDE

main69209-52010iZSP91..STD200805-201008

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

main69215-52060iNCP90,ZSP91..STD200805

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0D090iNCP90,ZSP91..STD200805-201104

sub69350-0D091

main69350-0D091iNCP90,ZSP91201105-201308

sub69350-0D092

main69350-0D100iZSP91..STD200805-201008

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

sub69350-0D101

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0D040iZSP91..RS200805-201008

9010506184

main90105-06184

90109C0015

main90109-C0015

9011906417

main90119-06417

90148C0006

main90148-C0006

9017910161

main90179-10161

91511B0614

main91511-B0614

17 parts on this diagram · 1 diagram in section
